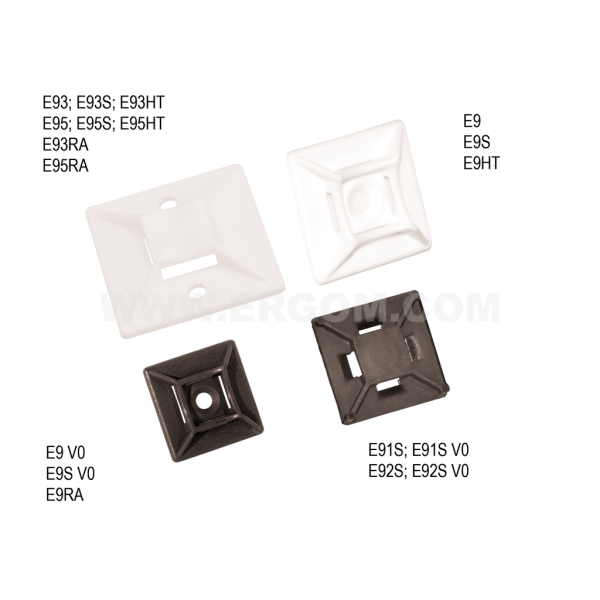

Fasteners, E9 type

Main data of the product series

Product name: Fasteners, E9 type
Category: Mated with cable ties
Material: polyamide 6
Flammability class: UL 94 V2 (white); UL 94 V0 (black);
Note!: Installation in line with the guidebook recommendations. Provisional static load at 20°C. The value is lower for minimum and maximum permissible temperatures. The V0 flammability class does not apply to the self-adhesive tape.

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
E9	E01EM-01020200100	2	100	pkt.	Price on request
E9V0	E01EM-01020200200	2	100	pkt.	Price on request
E9S	E01EM-01020200300	2	100	pkt.	Price on request
E9S V0	E01EM-01020200400	2	100	pkt.	Price on request
E9RA	E01EM-01020200500	2	100	pkt.	Price on request
E9HT	E01EM-01020200600	2	100	pkt.	Price on request
E91S	E01EM-01020500100	2	100	pkt.	Price on request
E91S V0	E01EM-01020500200	1	100	pkt.	Price on request
E92S	E01EM-01020600100	2	100	pkt.	Price on request
E92S V0	E01EM-01020600200	2	100	pkt.	Price on request
E93	E01EM-01020700100	2	100	pkt.	Price on request
E93 V0	E01EM-01020700150	2	100	pkt.	Price on request
E93S	E01EM-01020700200	2	100	pkt.	Price on request
E93S V0	E01EM-01020700250	2	100	pkt.	Price on request
E93RA	E01EM-01020700300	2	100	pkt.	Price on request
E93HT	E01EM-01020700400	2	100	pkt.	Price on request
E95	E01EM-01020800100	2	100	pkt.	Price on request
E95 V0	E01EM-01020800150	2	100	pkt.	Price on request
E95S	E01EM-01020800200	2	100	pkt.	Price on request
E95S V0	E01EM-01020800250	2	100	pkt.	Price on request
E95RA	E01EM-01020800300	2	100	pkt.	Price on request
E95HT	E01EM-01020800400	2	100	pkt.	Price on request

Selected lines: 0

Name	Installation	Colour	Operating temperature [°C]	Max. tape width [mm]	Max. static load [g]	Application in buildings	A	D
E9	by screwing	white	-40 ÷ +85	8	-	indoors and outdoors	29	4,5
E9V0	by screwing	black	-40 ÷ +85	8	-	indoors and outdoors	29	4,5
E9S	self-adhesive fastening	white	-30 ÷ +75	8	260	indoors	29	4,5
E9S V0	self-adhesive fastening	black	-30 ÷ +75	8	260	indoors	29	4,5
E9RA	by screwing	white	-30 ÷ +100	8	-	-	29	4,5
E9HT	by screwing	white	-40 ÷ +120	8	-	-	29	4,5
E91S	self-adhesive fastening	white	-30 ÷ +75	3,6	40	indoors	12,5	4,5
E91S V0	self-adhesive fastening	black	-30 ÷ +75	3,6	40	indoors	12,5	4,5
E92S	self-adhesive fastening	white	-30 ÷ +75	3,6	100	indoors	19	4,5
E92S V0	self-adhesive fastening	black	-30 ÷ +75	6,5	100	indoors	19	4,5
E93	by screwing	white	-40 ÷ +85	6,5	-	indoors and outdoors	24	2x3,5
E93 V0	by screwing	black	-40 ÷ +75	6,5	-	indoors and outdoors	24	2x3,5
E93S	self-adhesive fastening	white	-30 ÷ +75	6,5	170	indoors	24	2x3,5
E93S V0	self-adhesive fastening	black	-30 ÷ +75	6,5	170	indoors	24	2x3,5
E93RA	by screwing	white	-30 ÷ +100	6,5	-	-	24	2x3,5
E93HT	by screwing	white	-40 ÷ +120	6,5	-	-	24	2x3,5
E95	by screwing	white	-40 ÷ +85	11,2	-	indoors and outdoors	38	2x4
E95 V0	by screwing	black	-40 ÷ +75	11,2	-	indoors and outdoors	38	2x4
E95S	self-adhesive fastening	white	-30 ÷ +75	11,2	460	indoors	38	2x4
E95S V0	self-adhesive fastening	black	-30 ÷ +75	11,2	460	indoors	38	2x4
E95RA	by screwing	white	-30 ÷ +100	11,2	-	-	38	2x4
E95HT	by screwing	white	-40 ÷ +120	11,2	-	-	38	2x4
