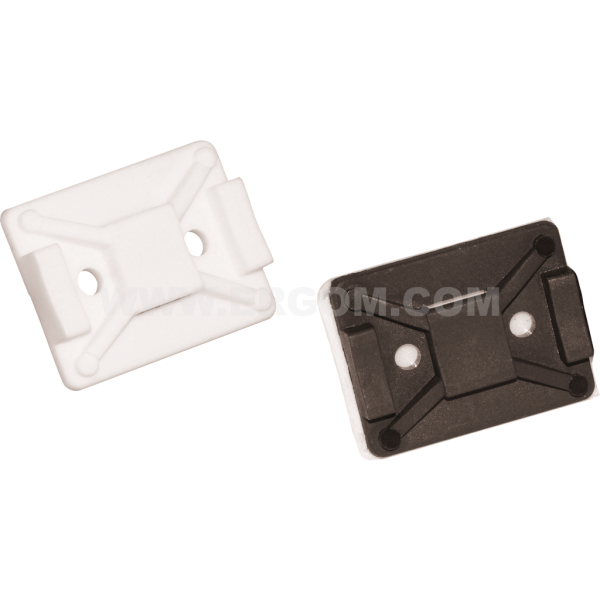

Fasteners, E8 type

Fasteners, E8 type

Main data of the product series

Product name
Fasteners, E8 type
Category
Mated with cable ties
Material
polyamide 6
Flammability class
UL 94 V2 (white); UL 94 V0 (black);
Note!
Installation in line with the guidebook recommendations. Provisional static load at 20°C. The value is lower for minimum and maximum permissible temperatures. The V0 flammability class does not apply to the self-adhesive tape.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
E8 E01EM-01020100100 2 100 pkt. Price on request
E8V0 E01EM-01020100200 2 100 pkt. Price on request
E8S E01EM-01020100300 2 100 pkt. Price on request
E8S V0 E01EM-01020100400 2 100 pkt. Price on request
E8RA E01EM-01020100500 2 100 pkt. Price on request
E8HT E01EM-01020100600 2 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Max. tape width [mm] 8
Max. static load [g] 220
Klasa palności UL 94 V2 (white); UL 94 V0 (black);
Name Installation Colour Operating temperature [°C] Application in buildings
E8 by screwing white -40 ÷ +80 indoors and outdoors
E8V0 by screwing black -40 ÷ +80 indoors and outdoors
E8S self-adhesive fastening white -30 ÷ +60 indoors
E8S V0 self-adhesive fastening black -30 ÷ +60 indoors
E8RA by screwing white -30 ÷ +100 -
E8HT by screwing white -40 ÷ +120 -

Guide

Fasteners, E8 type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Elementy_mocujace_typu_E8_EN.pdf EN 14-05-2025 213.17 KB PDF Download
Catalog card ERGOM_Elementy_mocujace_typu_E8_PL.pdf PL 14-05-2025 224.66 KB PDF Download
