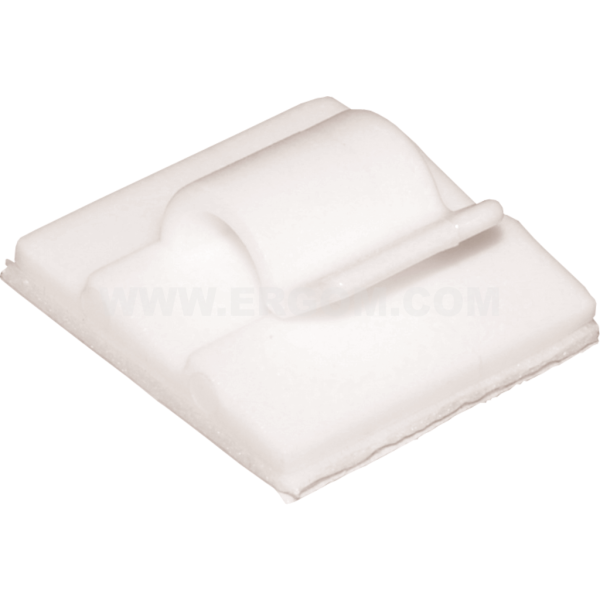

Fasteners, E31, E32 type

Fasteners, E31, E32 type

Main data of the product series

Product name
Fasteners, E31, E32 type
Category
Not mating with cable ties
Material
Polyamide 6
Flammability class
UL 94 V2
Note!
Before bonding the structure surface must be cleaned from dust and grease with extraction benzine. Fastener should be pressed against the surface to be bonded. Then wait 4 hours before hanging the load.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
E31 E01EM-01020400100 2 100 pkt. Price on request
E32 E01EM-01020400200 2 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material Polyamide 6
Halogen-free yes
Colour biały
Installation self-adhesive fastening
Operating temperature [°C] -30 ÷ +60
Klasa palności UL 94 V2
Name Max. static load [g] A B C D
E31 125 10 5 4,5 19 x 19
E32 225 16 15 18 26 x 26

Guide

Fasteners, E31, E32 type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Elementy_mocujace_typu_E_31_E_32_EN.pdf EN 14-05-2025 186.97 KB PDF Download
Catalog card ERGOM_Elementy_mocujace_typu_E_31_E_32_PL.pdf PL 14-05-2025 212.72 KB PDF Download
