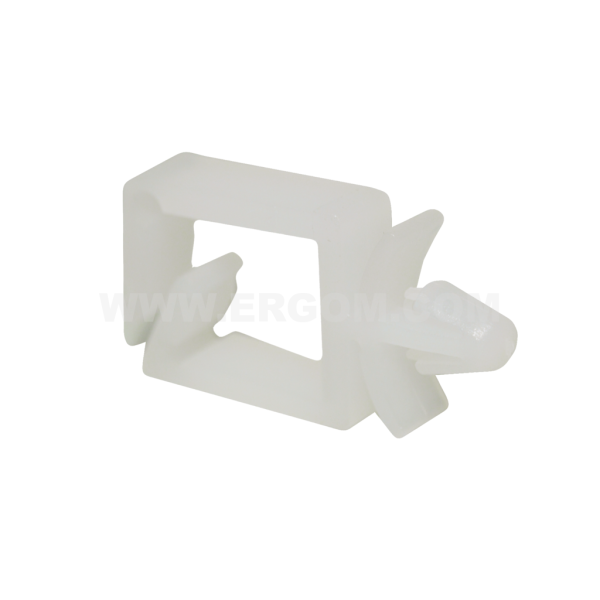

Fasteners, E11 type

Fasteners, E11 type

Main data of the product series

Product name
Fasteners, E11 type
Category
Not mating with cable ties
Material
polyamide 6.6
Operating temperature [°C]
-30 ÷ +85
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
E11/5*10 E01EM-01050200101 1 100 pkt. Price on request
E11/10*10 E01EM-01050200201 1 100 pkt. Price on request
E11/20*10 E01EM-01050200301 1 100 pkt. Price on request
E11/27*10 E01EM-01050200401 1 100 pkt. Price on request
E11 Z 5*10 E01EM-01050300101 1 100 pkt. Price on request
E11 Z 10*10 E01EM-01050300201 1 100 pkt. Price on request
E11 Z 20*10 E01EM-01050300301 1 100 pkt. Price on request
E11 Z 27*10 E01EM-01050300401 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes

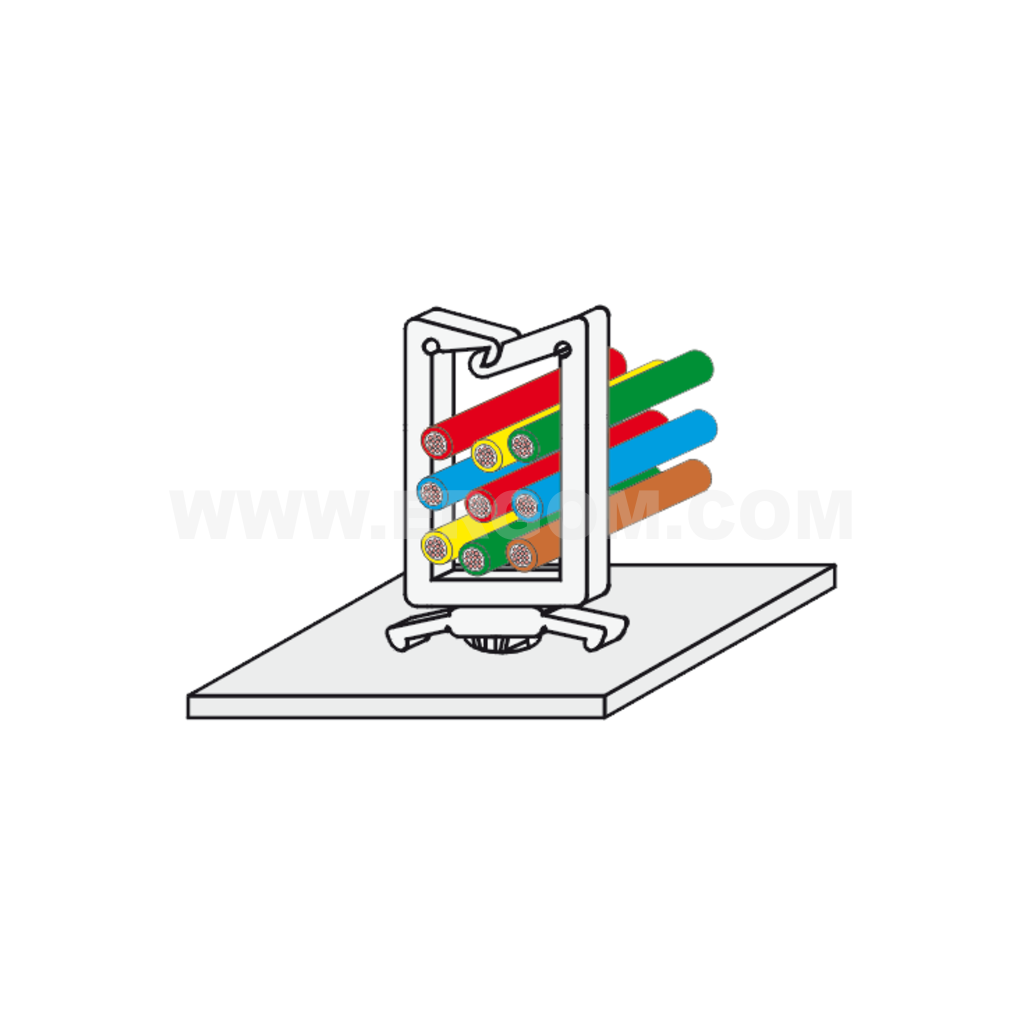

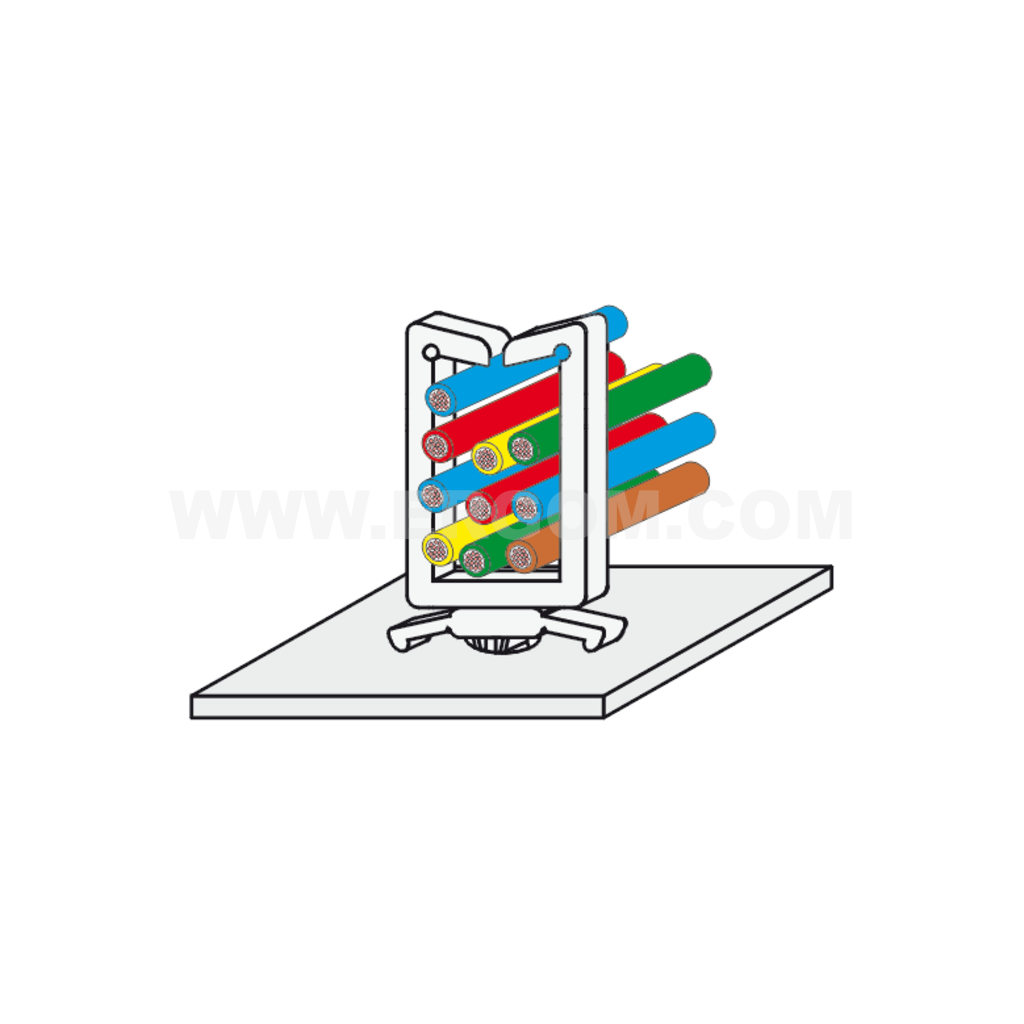

Installation by snap-fastening in a Ø4.8 hole; thickness of the structural element from 0.8 mm to 2 mm
Operating temperature [°C] -30 ÷ +85
Colour natural
C 15
D 11,2
G 5.5
Klasa palności UL 94 V2
Name A B
E11/5*10 4,0 13
E11/10*10 9,2 18
E11/20*10 18,2 27
E11/27*10 26,2 36
E11 Z 5*10 4,8 13
E11 Z 10*10 10 18
E11 Z 20*10 19 27
E11 Z 27*10 27 36

Guide

Fasteners, E11 type
Fasteners, E11 type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Elementy_mocujace_typu_E_11_EN.pdf EN 14-05-2025 233.64 KB PDF Download
Catalog card ERGOM_Elementy_mocujace_typu_E_11_PL.pdf PL 14-05-2025 277.61 KB PDF Download
