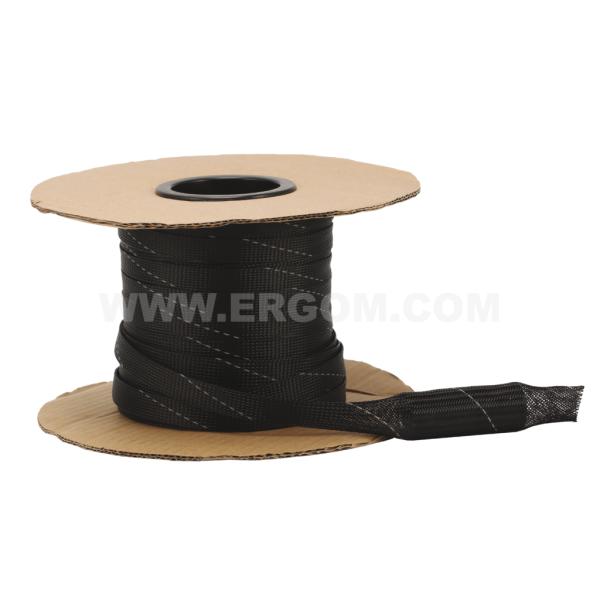

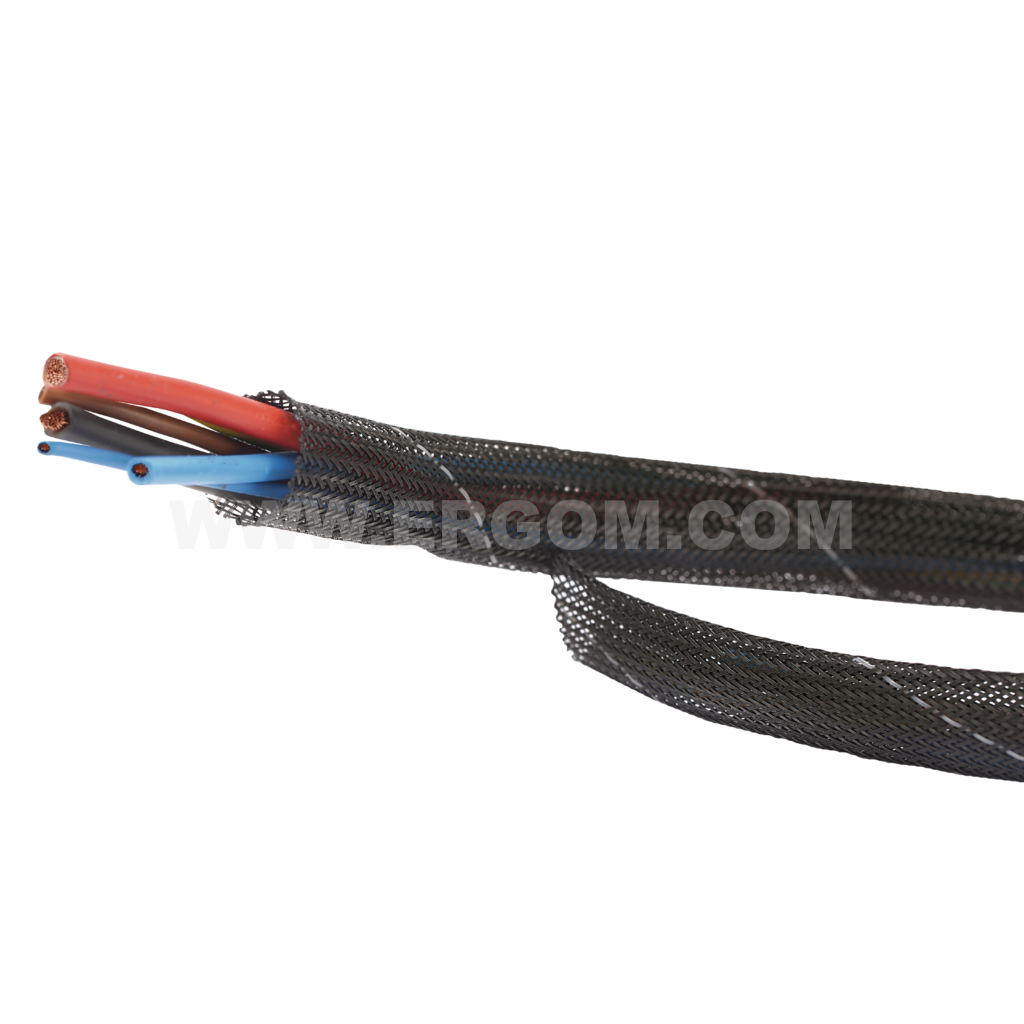

Expandable sleeving OTS type

Expandable sleeving OTS type

Main data of the product series

Product name
Expandable sleeving OTS type
Category
Cables and bundle protection
Flammability class
the product meets the requirements of R22-R23 for the HL1 - HL2 - HL3 hazard levels in accordance with EN 45545-2:2013+A1:2015

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
OTS 4 E05ME-03010700101 200 200 m. Price on request
OTS 6 E05ME-03010700301 200 200 m. Price on request
OTS 8 E05ME-03010700401 200 200 m. Price on request
OTS 10 E05ME-03010700501 200 200 m. Price on request
OTS 12 E05ME-03010700601 200 200 m. Price on request
OTS 16 E05ME-03010700701 200 200 m. Price on request
OTS 20 E05ME-03010700801 100 100 m. Price on request
OTS 25 E05ME-03010700901 100 100 m. Price on request
OTS 30 E05ME-03010701001 100 100 m. Price on request
OTS 40 E05ME-03010701101 50 50 m. Price on request
OTS 50 E05ME-03010701201 50 50 m. Price on request

Selected lines: 0

Technical data

General data

Material Polyester
Halogen-free yes
Colour black
Operating temperature [°C] -50 ÷ 150
Melting-point [°C] 230
Klasa palności the product meets the requirements of R22-R23 for the HL1 - HL2 - HL3 hazard levels in accordance with EN 45545-2:2013+A1:2015
Normy EN 45545-2:2013+A1:2015
Name Nominal diameter of sleeving d [mm] Max. diameter of cable harness dmin [mm]
OTS 4 4 6
OTS 6 6 9
OTS 8 8 12
OTS 10 10 17
OTS 12 12 18
OTS 16 16 22
OTS 20 20 32
OTS 25 25 35
OTS 30 30 50
OTS 40 40 55
OTS 50 50 75

Guide

Expandable sleeving OTS type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Oploty_ochronne_typu_OTS_EN.pdf EN 14-05-2025 297.03 KB PDF Download
Catalog card ERGOM_Oploty_ochronne_typu_OTS_PL.pdf PL 14-05-2025 325.48 KB PDF Download
