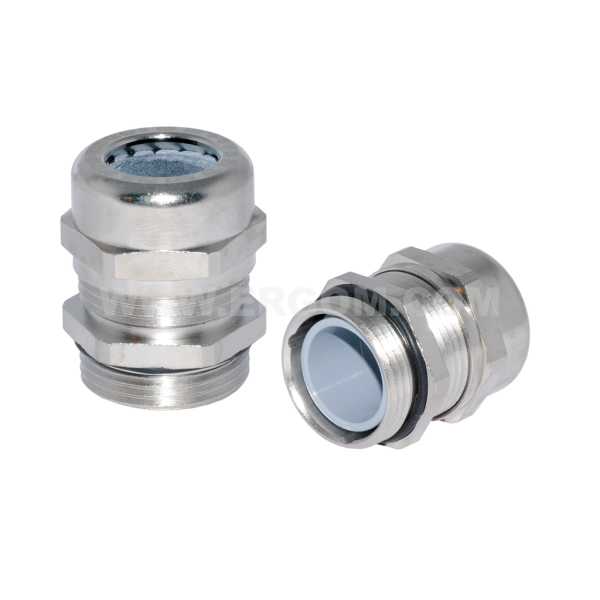

Ex brass glands, EMDW ... HM, EMDW ... H type

Ex brass glands, EMDW ... HM, EMDW ... H type

Main data of the product series

Product name: Ex brass glands, EMDW ... HM, EMDW ... H type
Category: Cable glands for explosive atmosphere
Operating temperature [°C]: -20 ÷ +80
Material: brass CuZn39Pb3, nickel-plated; lamellar insert: PA6; V2 UL 94; sealing ring: CR/NBR rubber; o-ring: NBR rubber; dust cap: polyethylene PE-LD
IP degree of protection: IP68 – 5 bar
Note!: The gland with cap installed does not ensure the described properties.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
EMDW 12 HM	E03DK-06030010101	10	10	pcs.	Price on request
EMDW 40 HM	E03DK-06030010603	10	10	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	brass CuZn39Pb3, nickel-plated; lamellar insert: PA6; V2 UL 94; sealing ring: CR/NBR rubber; o-ring: NBR rubber; dust cap: polyethylene PE-LD
Operating temperature [°C]	-20 ÷ +80
Stopień ochrony	IP68 – 5 bar
Normy	EN 50014; EN 50019
Wykonanie	EEx e

Name	Thread	Cable external diameter [mm]	A	E	L
EMDW 12 HM	M12x1,5	3÷6	14	5,0	20,0
EMDW 40 HM	M40x1,5	19÷27	43	8,0	33,0

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Dlawnice_mosiezna_Ex_typu_EMDW_HM_EMDW_H_EN.pdf	EN	14-05-2025	225.97 KB	PDF	Download
Catalog card	ERGOM_Dlawnice_mosiezna_Ex_typu_EMDW_HM_EMDW_H_PL.pdf	PL	14-05-2025	272.05 KB	PDF	Download
