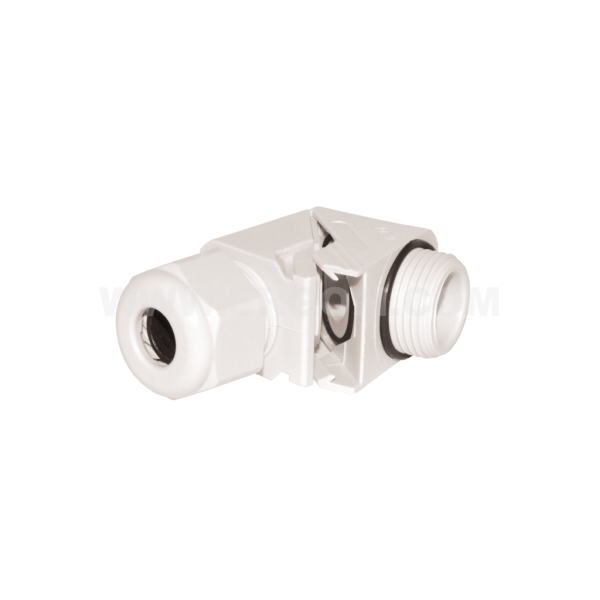

Elbow, KDD, KDD...M type

Elbow, KDD, KDD...M type

Main data of the product series

Product name
Elbow, KDD, KDD...M type
Category
Made of plastic
Material
polyamide 6; o-ring - NBR; sealing insert - NBR
Operating temperature [°C]
-20 ÷ +80
Colour
grey (RAL 7035)
IP degree of protection
IP68
Flammability class
UL 94 V2
Note!

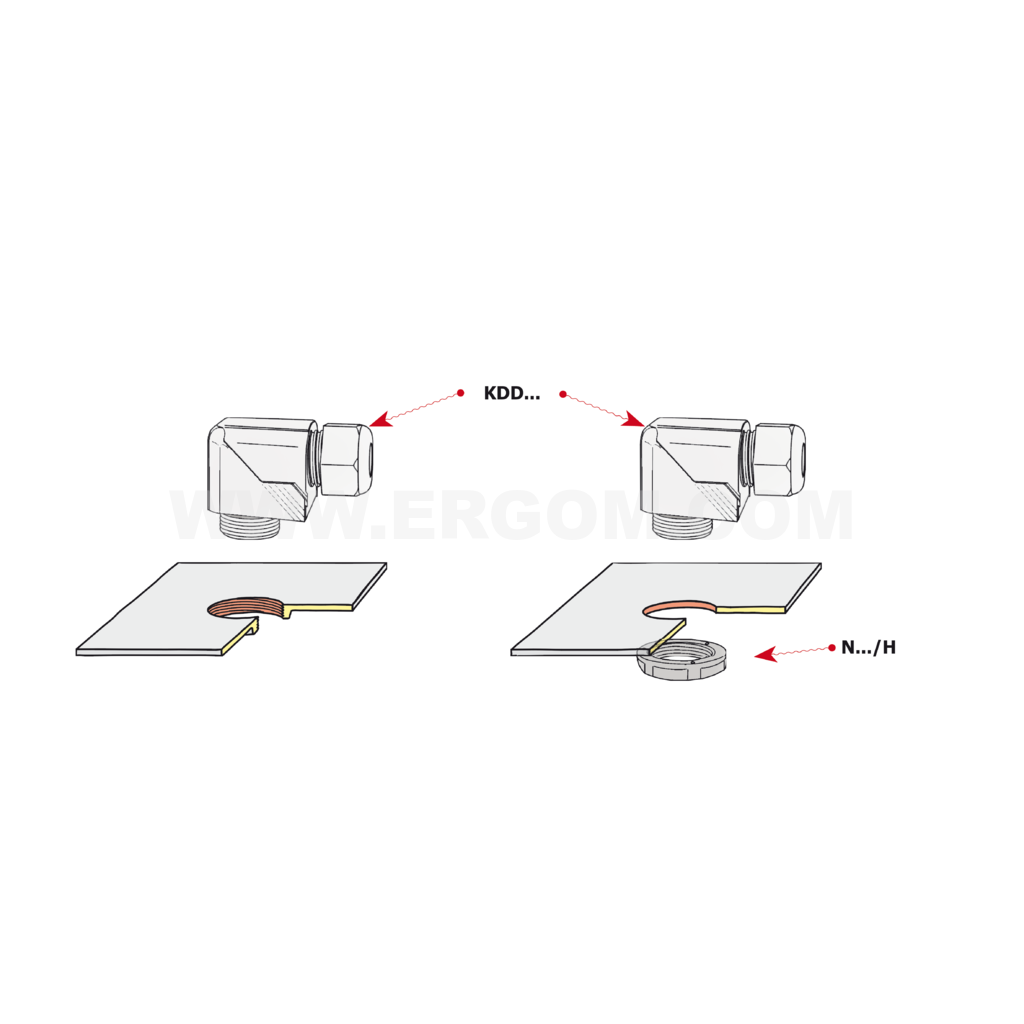

Nuts for the elbows have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KDD 9 E03DK-02160200103 1 1 pcs. Price on request
KDD 11 E03DK-02160200203 1 1 pcs. Price on request
KDD 16 E03DK-02160200403 1 1 pcs. Price on request
KDD 21 E03DK-02160200503 1 1 pcs. Price on request
KDD 29 E03DK-02160200603 1 1 pcs. Price on request
KDD 16M E03DK-02160400103 1 1 pcs. Price on request
KDD 20M E03DK-02160400203 1 1 pcs. Price on request
KDD 25M E03DK-02160400303 1 1 pcs. Price on request
KDD 32M E03DK-02160400403 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6; o-ring - NBR; sealing insert - NBR
Halogen-free yes
Colour grey (RAL 7035)
Operating temperature [°C] -20 ÷ +80
Stopień ochrony IP68
Klasa palności UL 94 V2
Normy EN 62444; type A
Name M thread PG thread Cable external diameter [mm] E H L l For spanner A
KDD 9 - PG9 4÷8 8 23,0 45 19 19
KDD 11 - PG11 5÷10 8 27,0 50 22 22
KDD 16 - PG16 10÷14 10 32,5 59 27 27
KDD 21 - PG21 13÷18 11 40,0 73 33 33
KDD 29 - PG29 18÷25 11 51,5 91 42 42
KDD 16M M16x1,5 - 4 ÷ 8 8 23,0 45 19 19
KDD 20M M20x1,5 - 6 ÷ 12 9 30,5 57 24 24
KDD 25M M25x1,5 - 13 ÷ 18 11 40,0 73 33 33
KDD 32M M32x1,5 - 18 ÷ 25 11 51,5 91 42 42
