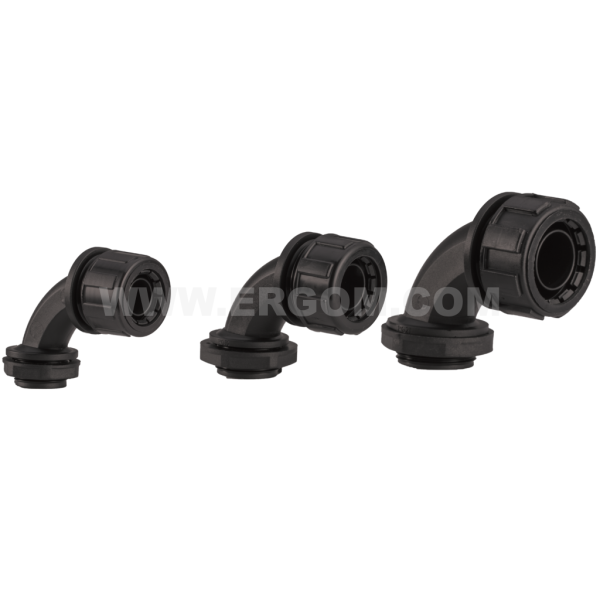

Elbow fitting for WTG protective conduits, WKD type

Elbow fitting for WTG protective conduits, WKD type

Main data of the product series

Product name
Elbow fitting for WTG protective conduits, WKD type
Category
Accessories for PVC conduits
Operating temperature [°C]
-20 ÷ +90
Material
polypropylene
Colour
black
IP degree of protection
IP66

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WKD 9/9 E03DK-07020100101 10 10 pcs. Price on request
WKD 11/9 E03DK-07020100201 10 10 pcs. Price on request
WKD 16/13 E03DK-07020100401 10 10 pcs. Price on request
WKD 21/21 E03DK-07020100501 10 10 pcs. Price on request
WKD 29/29 E03DK-07020100601 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polypropylene
Halogen-free yes
Operating temperature [°C] -20 ÷ +90
Colour black
Stopień ochrony IP66
Name PG thread Tube type For spanner A L E H B
WKD 9/9 PG9 WTG 9, WTG 9 GY 25 55 12 35 24
WKD 11/9 PG11 WTG 9, WTG 9 GY 25 60 12 35 24
WKD 16/13 PG16 WTG 13, WTG 13 GY 41 74 12 50 35
WKD 21/21 PG21 WTG 21, WTG 21 GY 41 74 12 50 35
WKD 29/29 PG29 WTG 29, WTG 29 GY 48 95 15 70 44

Guide

Elbow fitting for WTG protective conduits, WKD type
Elbow fitting for WTG protective conduits, WKD type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_rury_katowy_typu_WKD_do_rur_ochronnych_WTG_EN.pdf EN 16-07-2025 279.42 KB PDF Download
Catalog card ERGOM_Lacznik_rury_katowy_typu_WKD_do_rur_ochronnych_WTG_PL.pdf PL 16-07-2025 301.41 KB PDF Download
