Edge shield, OPN type

Edge shield, OPN type

Main data of the product series

Product name
Edge shield, OPN type
Category
Cables and bundle protection
Assembly temperature [°C]
-5 ÷ +35
Material
PCV resistant to typical solvents, lubricants, oils, sea water, moulds etc.
Note!
Shields in other colours, minimum purchase quantity 500 m.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
OPN-1 E01PK-01060300100 50 50 m. Price on request
OPN-2 E01PK-01060300400 50 50 m. Price on request
OPN-3 E01PK-01060300600 50 50 m. Price on request
OPN-1 BL E01PK-01060301100 500 50 m. Price on request
OPN-1 GY E01PK-01060301200 500 50 m. Price on request
OPN-1 RD E01PK-01060301300 500 50 m. Price on request
OPN-1 WT E01PK-01060301400 500 50 m. Price on request
OPN-1 YL E01PK-01060301500 500 50 m. Price on request
OPN-2 BL E01PK-01060301600 500 50 m. Price on request
OPN-2 GY E01PK-01060301700 500 50 m. Price on request
OPN-2 RD E01PK-01060301800 500 50 m. Price on request
OPN-2 WT E01PK-01060301900 500 50 m. Price on request
OPN-2 YL E01PK-01060302000 500 50 m. Price on request
OPN-3 BL E01PK-01060302100 500 50 m. Price on request
OPN-3 GY E01PK-01060302200 500 50 m. Price on request
OPN-3 RD E01PK-01060302300 500 50 m. Price on request
OPN-3 WT E01PK-01060302400 500 50 m. Price on request
OPN-3 YL E01PK-01060302500 500 50 m. Price on request

Selected lines: 0

Technical data

General data

Material PCV resistant to typical solvents, lubricants, oils, sea water, moulds etc.
Operating temperature [°C] -30 ÷ +70
Assembly temperature [°C] -5 ÷ +35

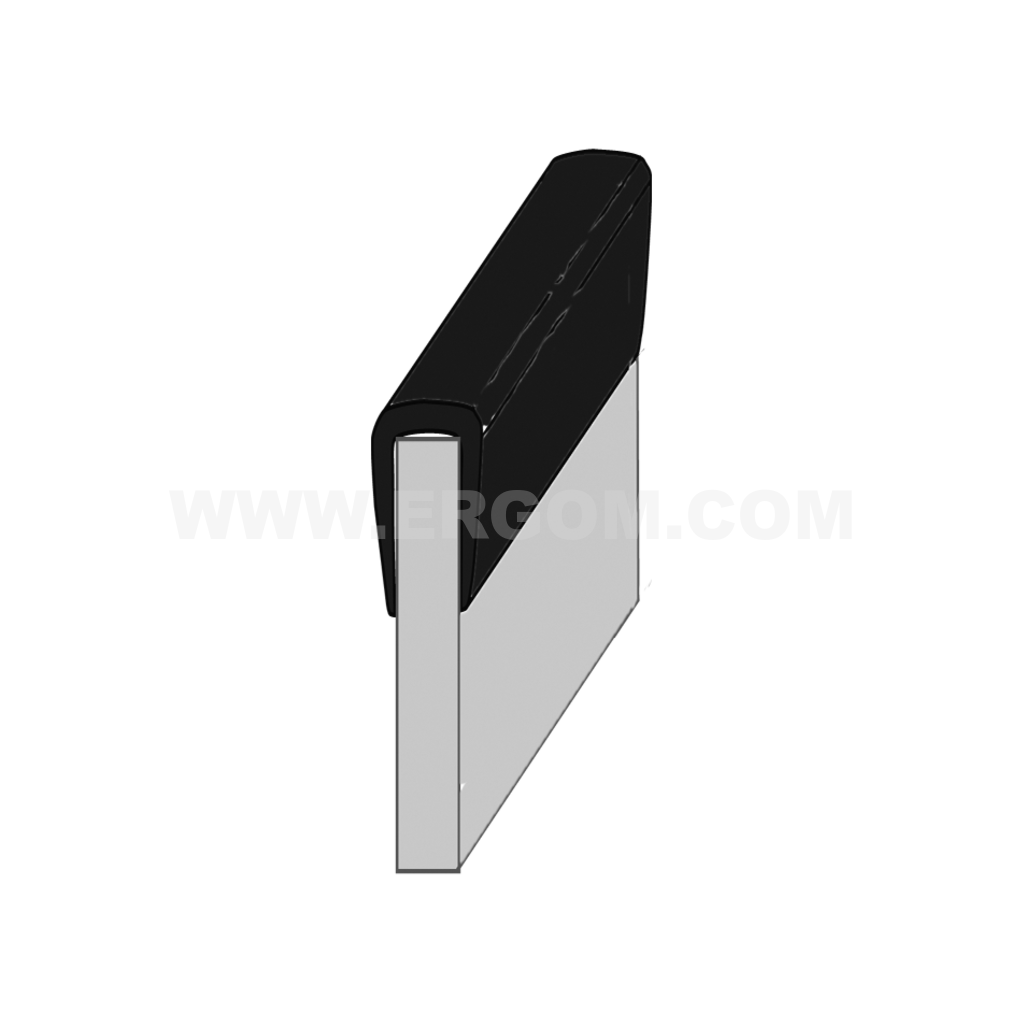

Name Colour Metal plate thickness [mm] A B
OPN-1 black 0,4÷1,3 5,0 9,0
OPN-2 black 1,3÷2,2 6,5 9,5
OPN-3 black 2,2÷3,3 7,5 11,0
OPN-1 BL blue 0,4÷1,3 5,0 9,0
OPN-1 GY grey 0,4÷1,3 5,0 9,0
OPN-1 RD red 0,4÷1,3 5,0 9,0
OPN-1 WT white 0,4÷1,3 5,0 9,0
OPN-1 YL yellow 0,4÷1,3 5,0 9,0
OPN-2 BL blue 1,3÷2,2 6,5 9,5
OPN-2 GY grey 1,3÷2,2 6,5 9,5
OPN-2 RD red 1,3÷2,2 6,5 9,5
OPN-2 WT white 1,3÷2,2 6,5 9,5
OPN-2 YL yellow 1,3÷2,2 6,5 9,5
OPN-3 BL blue 2,2÷3,3 7,5 11,0
OPN-3 GY grey 2,2÷3,3 7,5 11,0
OPN-3 RD red 2,2÷3,3 7,5 11,0
OPN-3 WT white 2,2÷3,3 7,5 11,0
OPN-3 YL yellow 2,2÷3,3 7,5 11,0

Guide

Edge shield, OPN type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Oslona_krawedzi_typu_OPN_EN.pdf EN 14-05-2025 284.91 KB PDF Download
Catalog card ERGOM_Oslona_krawedzi_typu_OPN_PL.pdf PL 14-05-2025 326.19 KB PDF Download
