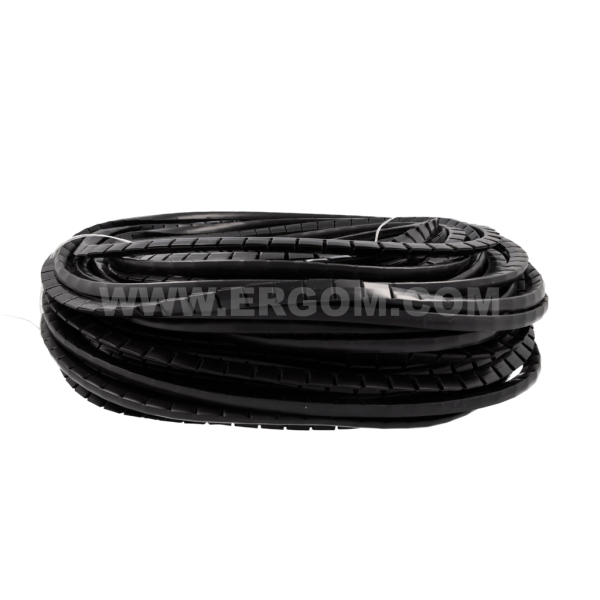

Edge shield, OPC type

Edge shield, OPC type

Main data of the product series

Product name: Edge shield, OPC type
Category: Cables and bundle protection
Assembly temperature [°C]: -5 ÷ +35
Material: PCV resistant to typical solvents, lubricants, oils, sea water, moulds etc.
Note!: Shields in other colours, minimum purchase quantity 500 m.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
OPC-1	E01PK-01060200100	50	50	m.	Price on request
OPC-2	E01PK-01060200200	50	50	m.	Price on request
OPC-3	E01PK-01060200300	50	50	m.	Price on request

Selected lines: 0

Technical data

General data

Material	PCV resistant to typical solvents, lubricants, oils, sea water, moulds etc.
Operating temperature [°C]	-30 ÷ +70
Assembly temperature [°C]	-5 ÷ +35
Colour	black

Name	Min. bending radius [mm]	Metal plate thickness [mm]	A	B
OPC-1	45	0,4÷1,3	5,0	9,0
OPC-2	55	1,3÷2,2	6,5	9,5
OPC-3	65	2,2÷3,3	7,5	11,0

Guide

Edge shield, OPC type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Oslona_krawedzi_typu_OPC_EN.pdf	EN	14-05-2025	194.3 KB	PDF	Download
Catalog card	ERGOM_Oslona_krawedzi_typu_OPC_PL.pdf	PL	14-05-2025	235.27 KB	PDF	Download
