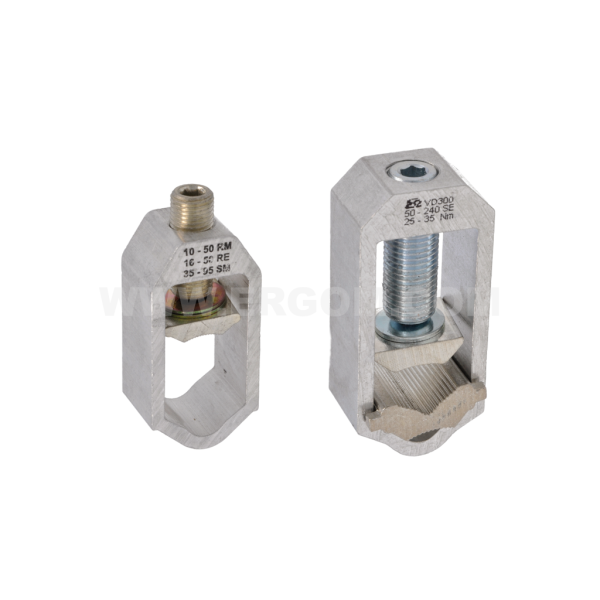

Double V-clamps, VD type

Double V-clamps, VD type

Main data of the product series

Product name
Double V-clamps, VD type
Category
V-clamps
Standards
EN 60947-7-1 (IEC 60947-7-1) EN 60947-7-2 (IEC 60947-7-2)

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
VD 120 (10-120) R32RZ-03010300102 12 12 pcs. Price on request
VD 300 R32RZ-03010300202 12 12 pcs. Price on request

Selected lines: 0

Technical data

General data

Design A complete clamp set consists of VD clamp and PV terminal plate. Appropriate combination can be set by the user.
Normy EN 60947-7-1 (IEC 60947-7-1) EN 60947-7-2 (IEC 60947-7-2)
Name Nominal cross-section, rm [mm2] Cross-section, re [mm²] Cross-section, sm [mm²] Cross-section, se [mm²] Tightening torque [Nm] b h l
VD 120 (10-120) 10÷50 16÷50 35÷95 50÷120 17,5±2,5 27 54 20
VD 300 50÷185 70÷240 70÷240 95÷240 30±5 34 74 22

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zaciski_„V_podwojne_typ_VD_EN.pdf EN 15-05-2025 204.92 KB PDF Download
Catalog card ERGOM_Zaciski_„V_podwojne_typ_VD_PL.pdf PL 15-05-2025 221.57 KB PDF Download
