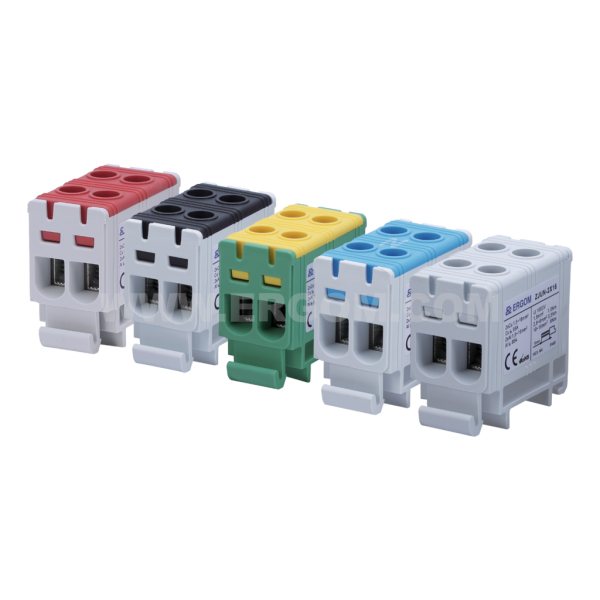

Double-circuit connector, ZJUN-2x16 type: for 16 mm² wires 1000V

Main data of the product series

Product name: Double-circuit connector, ZJUN-2x16 type: for 16 mm² wires 1000V
Category: Double-circuit connectors
Standards: EN 60947-7-1
IP degree of protection: IP20
Flammability class: UL 94 V0

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
ZJUN-2x16/BK	R34RR-07010019103	14	14	pcs.	Price on request
ZJUN-2x16/RD	R34RR-07010020103	14	1	pcs.	Price on request
ZJUN-2x16	R34RR-07010021043	14	14	pcs.	Price on request
ZJUN-2x16/BL	R34RR-07010021143	14	14	pcs.	Price on request
ZJUN-2x16 PE	R34RR-07020001943	14	14	pcs.	Price on request

Selected lines: 0

Continuous current Al [A]	85
Continuous current Cu [A]	85
Rated insulation voltage U_i [V]	1000
Electric strength [kV]	4
Body material	polyamide 6.6
Cover material	polyamide 6.6
Bolt material	galvanized steel coated with contact paste
Current circuit material	Al-alloy
Circuit insulation length [mm]	15
Terminal crimping shape on cord	trapezoid
Number of poles	1
Number of screws [pcs]	4
Number of tracks	2
Wire cross-section (cord) [mm²]	1,5÷16
Nominal cross-section [mm²]	16
Dimension (H x W x D) [mm]	43,5 x 23,8 x 40,3
Recommended tightening torque [Nm]	6
Recommended screwdriver tip type (hexagonal)	HEX: M4
Stopień ochrony	IP20
Klasa palności	UL 94 V0
Normy	EN 60947-7-1
