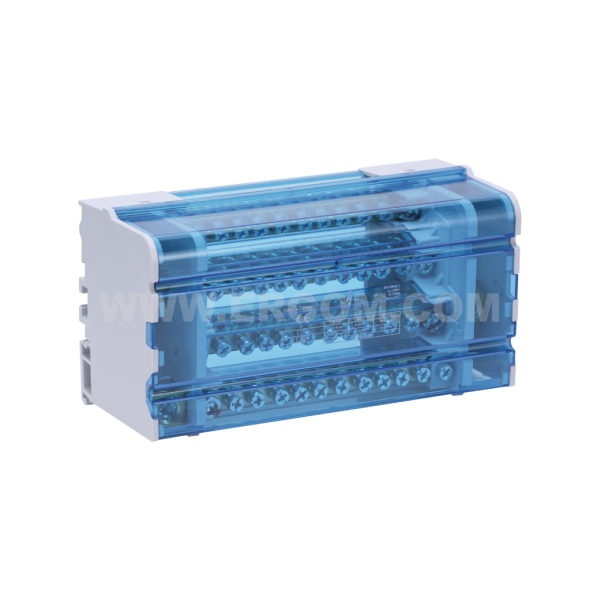

Distribution blocks, EBR2 type 500V

Distribution blocks, EBR2 type 500V

Main data of the product series

Product name: Distribution blocks, EBR2 type 500V
Category: Distribution blocks
Installation: on TSE 35 rail or with screws to the base (2 holes Ø5)
Material: conducting elements – brass; insulating elements – polyamide (sides), polycarbonate (cover)
Ambient temperature [°C]: -25 ÷ +55
Standards: EN 60947-7-1

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
EBR2 4-11/125	R33RA-02020300301	1	1	pcs.	Price on request
EBR2 4-12/160	R33RA-02020300501	1	1	pcs.	Price on request
EBR2 4-12/160 LP	R33RA-02020300601	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage U_i [V]	500
Peak current [kA]	20
Material	conducting elements – brass; insulating elements – polyamide (sides), polycarbonate (cover)
Installation	on TSE 35 rail or with screws to the base (2 holes Ø5)
Terminal type	threaded
Recommended tightening torque [Nm]	2
Ambient temperature [°C]	-25 ÷ +55
No. of circuits	-
Normy	EN 60947-7-1

Name	Terminal hole diameter (for 1 circuit) [mm]	Connected wire cross-section - cord without terminal (for 1 circuit)	Connected wire cross-section - cord with HI terminal (for 1 circuit)	Short-circuit withstand current [kA/1s]	Rated continuous current I_n 40°C [A]	H	W	D
EBR2 4-11/125	1x9; 3x7,5; 7x5,3	1x10÷25; 3x6÷16; 7x1,5÷6	1x10÷35; 3x10÷25; 7x2,5÷6	4,2	125	50	145	85
EBR2 4-12/160	1x11,5; 3x8,5; 7x7; 1x5,3	1x10÷50; 3x6÷25; 8x1,5÷16	1x10÷50; 3x10÷35; 8x2,5÷16	6	160	70	170	85
EBR2 4-12/160 LP	1x11,5; 3x8,5; 7x7; 1x5,3	1x10÷50; 3x6÷25; 8x1,5÷16	1x10÷50; 3x10÷35; 8x2,5÷16	6	160	50	170	90

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Bloki_rozdzielcze_typ_EBR2_EN.pdf	EN	22-05-2025	342.19 KB	PDF	Download
Catalog card	ERGOM_Bloki_rozdzielcze_typ_EBR2_PL.pdf	PL	22-05-2025	359.29 KB	PDF	Download
