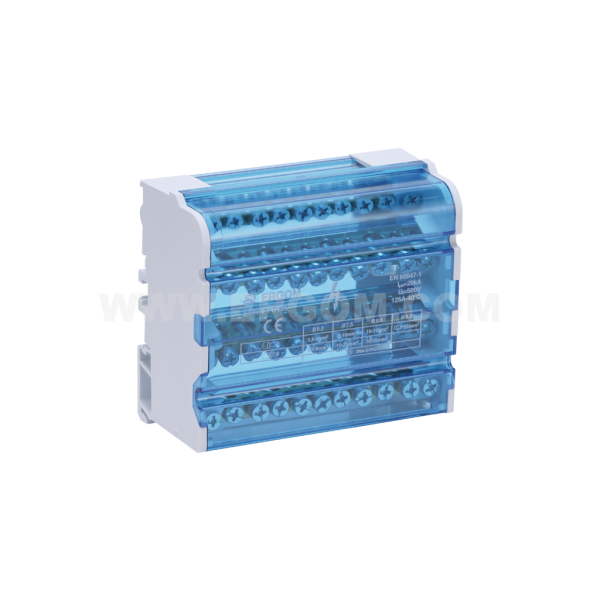

Distribution blocks, EBR type 500V

Distribution blocks, EBR type 500V

Main data of the product series

Product name: Distribution blocks, EBR type 500V
Category: Distribution blocks
Installation: on TSE 35 rail or with screws to the base (2 holes Ø5)
Material: conducting elements – brass; insulating elements – polyamide (sides), polycarbonate (cover)
Ambient temperature [°C]: -25 ÷ +55
Standards: EN 60947-7-1

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
EBR 2-7/100	R33RA-02020100101	1	1	pcs.	Price on request
EBR 2-15/125	R33RA-02020100201	1	1	pcs.	Price on request
EBR 4-7/100	R33RA-02020200101	1	1	pcs.	Price on request
EBR 4-11/125	R33RA-02020200201	1	1	pcs.	Price on request
EBR 4-15/125	R33RA-02020200301	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage U_i [V]	500
Material	conducting elements – brass; insulating elements – polyamide (sides), polycarbonate (cover)
Installation	on TSE 35 rail or with screws to the base (2 holes Ø5)
Terminal type	threaded
Recommended tightening torque [Nm]	2
Ambient temperature [°C]	-25 ÷ +55
Normy	EN 60947-7-1

Name	Peak current [kA]	Terminal hole diameter (for 1 circuit) [mm]	Connected wire cross-section - cord without terminal (for 1 circuit)	Connected wire cross-section - cord with HI terminal (for 1 circuit)	Short-circuit withstand current [kA/1s]	Rated continuous current I_n 40°C [A]	No. of circuits	H	W	D
EBR 2-7/100	20	1x8,3+1x7,5+5x5,3	2x10÷25+5x2,5÷6	2x6÷16+5x1,5÷6	3	101	2	51	67	45
EBR 2-15/125	20	2x8,3+2x7,5+11x5,3	2x10÷35+2x10÷25+11x2,5÷6	2x10÷16+2x6÷16+11x1,5÷6	4,2	125	2	50,5	133	44
EBR 4-7/100	18	1x8,3+1x7,5+5x5,3	2x10÷25+5x2,5÷6	2x6÷16+5x1,5÷6	3	101	4	50	64,5	87
EBR 4-11/125	18	2x8,3+2x7,5+7x5,3	2x10÷35+2x10÷25+7x2,5÷6	2x10÷16+2x6÷16+7x1,5÷6	4,2	125	4	48	100	88
EBR 4-15/125	18	2x8,3+2x7,5+11x5,3	2x10÷35+2x10÷25+11x2,5÷6	2x10÷16+2x6÷16+11x1,5÷6	4,2	125	4	50	130	87

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Bloki_rozdzielcze_typ_EBR_EN.pdf	EN	11-09-2025	296.67 KB	PDF	Download
Catalog card	ERGOM_Bloki_rozdzielcze_typ_EBR_PL.pdf	PL	11-09-2025	344.98 KB	PDF	Download
