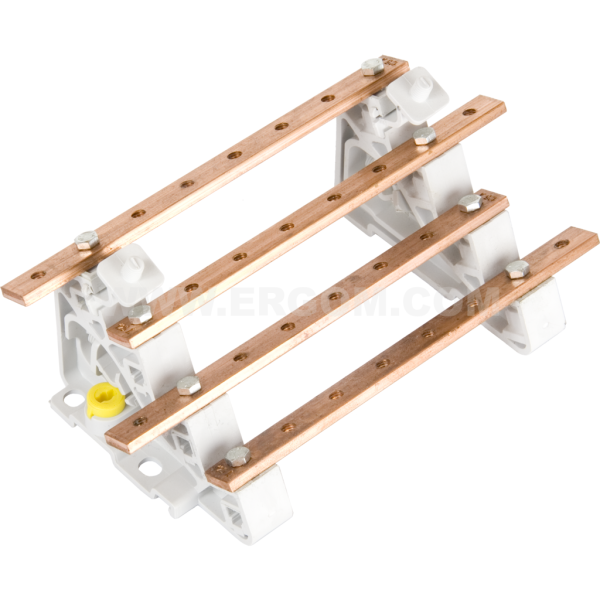

Distribution blocks, BRS type 500V

Distribution blocks, BRS type 500V

Main data of the product series

Product name
Distribution blocks, BRS type 500V
Category
Distribution blocks
Ambient temperature [°C]
-5 ÷ +85
Material
insulation base - polyamide; rails - electrical engineering copper; standardized elements - galvanized steel
Standards
EN 61439-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
BRS 4-125 R33RA-03010000101 1 1 pcs. Price on request
BRS 4-160 R33RA-03010000201 1 1 pcs. Price on request
BRS 4-250 R33RA-03010000301 1 1 pcs. Price on request
BRS 4-400 R33RA-03010000401 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V] 500
Material insulation base - polyamide; rails - electrical engineering copper; standardized elements - galvanized steel
Ambient temperature [°C] -5 ÷ +85
No. of circuits -
Normy EN 61439-1
Name Short-circuit withstand current [kA/1s] Rated continuous current In 40°C [A] Ipk [kA] Busbar dimensions [mm] No. of supports No. of holes per bar A B C D
BRS 4-125 23 125 48 12 x 4 2 6 x M5 183 135 74 114
BRS 4-160 23 160 48 15 x 4 2 6 x M5 183 135 74 114
BRS 4-250 23 250 48 20 x 5 2 5 x M6; 1 x M8 190 190 67 114
BRS 4-400 20 400 40 25 x 6 3 16 x M6; 1 x M8 410 175 110 2 x 152

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Bloki_rozdzielcze_typ_BRS_EN.pdf EN 15-05-2025 339.68 KB PDF Download
Catalog card ERGOM_Bloki_rozdzielcze_typ_BRS_PL.pdf PL 15-05-2025 389.6 KB PDF Download
