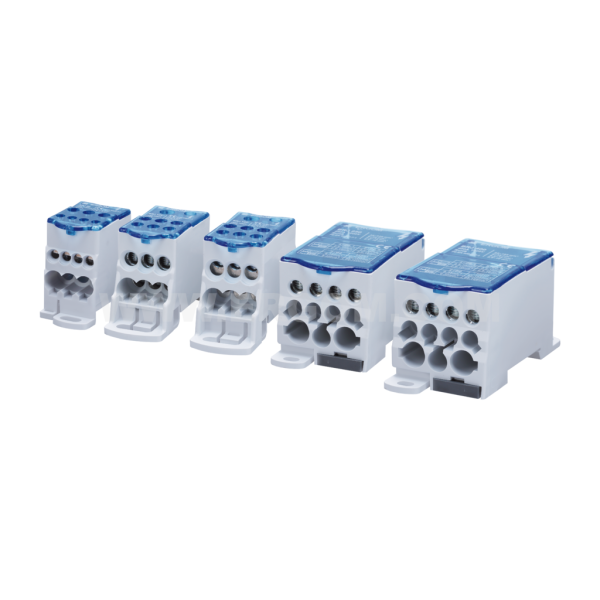

Distribution blocks, BRJ type 1000V

Distribution blocks, BRJ type 1000V

Main data of the product series

Product name
Distribution blocks, BRJ type 1000V
Category
Distribution blocks
Material
conductive elements: brass, tin-plated; insulation elements: polyamide (body), polycarbonate (cover)
Installation
on TSE 35 rail or with screws to the base (2 holes Ø5)
Ambient temperature [°C]
-25 ÷ +55
IP degree of protection
IP20
Standards
EN 60947-7-1
Flammability class
UL 94 V0

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
BRJ 80 R33RA-02030102101 1 1 pcs. Price on request
BRJ 125 R33RA-02030102201 1 1 pcs. Price on request
BRJ 160 R33RA-02030102401 1 1 pcs. Price on request
BRJ 250 R33RA-02030102701 1 1 pcs. Price on request
BRJ 400 R33RA-02030102801 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V AC] 1000
Material conductive elements: brass, tin-plated; insulation elements: polyamide (body), polycarbonate (cover)
Installation on TSE 35 rail or with screws to the base (2 holes Ø5)
Terminal type threaded
Ambient temperature [°C] -25 ÷ +55
Colour grey
Stopień ochrony IP20
Klasa palności UL 94 V0
Normy EN 60947-7-1
Name Rated continuous current In 40°C [A] Number of inputs / outputs / Connection cross-sections H W D
BRJ 80 80 3x2,5-16; 4x2,5-6 46 27 66
BRJ 125 125 1x10-35; 1x6-16 / 6x2,5-16 46 29 77
BRJ 160 160 1x16-70; 1x6-16 / 6x2,5-16 46 29 77
BRJ 250 250 1x35-120 / 4x2,5-10; 5x 2,5-16; 2x6-35 50 46 96
BRJ 400 400 1x95-185 / 4x2,5-10; 5x 2,5-16; 2x6-35 50 46 96

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Bloki_rozdzielcze_typ_BRJ_EN.pdf EN 01-07-2025 301.95 KB PDF Download
Catalog card ERGOM_Bloki_rozdzielcze_typ_BRJ_PL.pdf PL 01-07-2025 347.9 KB PDF Download
