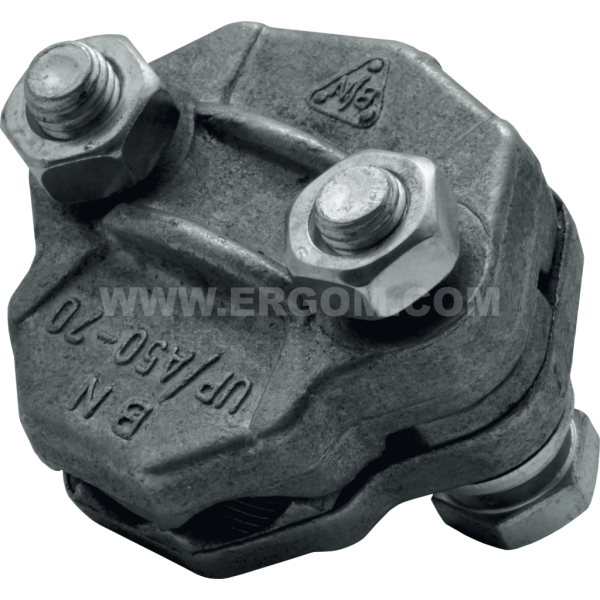

Dead-end clamps, UP/A type

Dead-end clamps, UP/A type

Main data of the product series

Product name: Dead-end clamps, UP/A type
Category: Loop
Material: Body – Aluminium, copper; Screws – Galvanized steel; Nuts – Galvanized steel

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
UP/A 10-16	E14KI-04020100101	12	1	pcs.	Price on request
UP/A 25-35	E14KI-04020100201	12	1	pcs.	Price on request
UP/A 50-70	E14KI-04020100301	12	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	Body – Aluminium, copper; Screws – Galvanized steel; Nuts – Galvanized steel
Number of screws [pcs]	2

Name	L	E	H	W	Cross-section, rm/sm [mm²]	Screw
UP/A 10-16	35	23	25	38	10, 16	M6x35
UP/A 25-35	50	31	30	51	25, 35	M8x40
UP/A 50-70	60	41	34	64	50, 70	M10x45

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Zaciski_petlicowe_typ_UP_A_EN.pdf	EN	04-07-2025	349.86 KB	PDF	Download
Catalog card	ERGOM_Zaciski_petlicowe_typ_UP_A_PL.pdf	PL	04-07-2025	360.01 KB	PDF	Download
