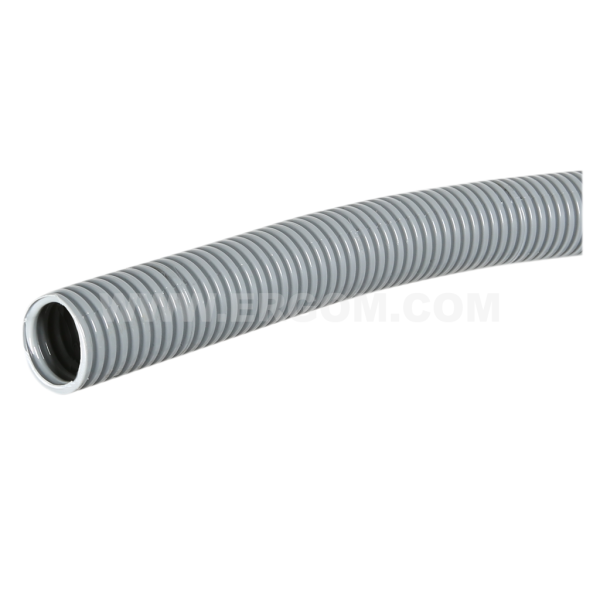

Corrugated protective conduit made of polyamide for moving connections, WTE...R type

Corrugated protective conduit made of polyamide for moving connections, WTE...R type

Main data of the product series

Product name
Corrugated protective conduit made of polyamide for moving connections, WTE...R type
Category
Corrugated conduits made of polyamide
Material
polyamide 12
Colour
grey RAL 7012
Operating temperature [°C]
-25 ÷ +85 (without movement: -50 ÷ +90)
Compression strength
200 N
IP degree of protection
IP67
Flammability class
EN 61386-1:2011 - flame retardant, UL 94 V2, halogen free

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WTE 7R E03DK-09040100100 100 50 m. Price on request
WTE 9R E03DK-09040100200 100 50 m. Price on request
WTE 11R E03DK-09040100300 50 50 m. Price on request
WTE 13R E03DK-09040100400 100 50 m. Price on request
WTE 16R E03DK-09040100500 100 50 m. Price on request
WTE 21R E03DK-09040100600 50 50 m. Price on request
WTE 29R E03DK-09040100700 100 50 m. Price on request
WTE 36R E03DK-09040100800 50 25 m. Price on request
WTE 48R E03DK-09040100900 50 25 m. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 12
Halogen-free yes
Operating temperature [°C] -25 ÷ +85 (without movement: -50 ÷ +90)
Colour grey RAL 7012
Compression strength 200 N
Stopień ochrony IP67
Klasa palności EN 61386-1:2011 - flame retardant, UL 94 V2, halogen free
Normy EN 61386-1:1241; EN 61386-24
Name Min. bending radius [mm] Nominal size of the connector d D
WTE 7R 25 7 6,5 10,0
WTE 9R 30 9 9,9 13,0
WTE 11R 35 11 11,7 15,8
WTE 13R 40 13 14,0 18,6
WTE 16R 45 16 16,5 21,2
WTE 21R 50 21 21,7 28,5
WTE 29R 63 29 27,7 34,5
WTE 36R 85 36 35,2 42,5
WTE 48R 100 48 46,5 54,5

Guide

Corrugated protective conduit made of polyamide for moving connections, WTE...R type
Corrugated protective conduit made of polyamide for moving connections, WTE...R type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Rura_ochronna_karbowana_z_poliamidu_–_ruchowa_typu_WTE_R_EN.pdf EN 14-05-2025 265.01 KB PDF Download
Catalog card ERGOM_Rura_ochronna_karbowana_z_poliamidu_–_ruchowa_typu_WTE_R_PL.pdf PL 14-05-2025 282.15 KB PDF Download
