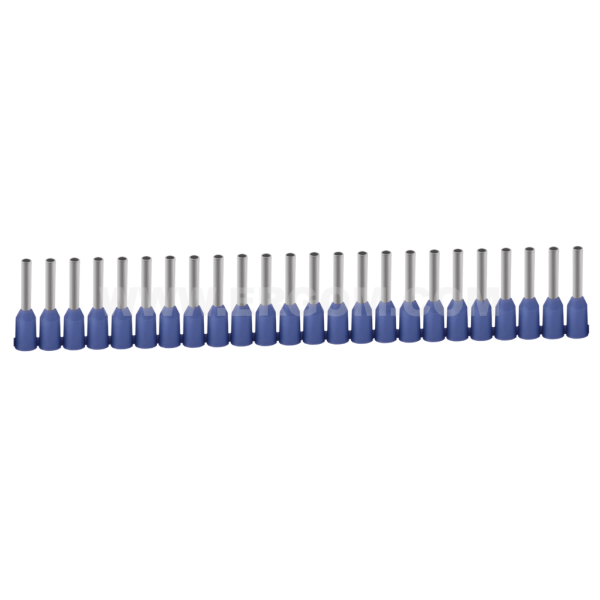

Cord end terminals in strips, HIS type

Cord end terminals in strips, HIS type

Main data of the product series

Product name: Cord end terminals in strips, HIS type
Category: Insulated
Insulation: polypropylene
Operating temperature [°C]: -30 ÷ +105
Surface: tin-plated
Material: Cu
Note!: Other lengths and colours on request.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
HIS 0,5	E08KH-02030100101	1	500	pkt.	Price on request
HIS 0,5 DIN	E08KH-02030100201	1	500	pkt.	Price on request
HIS 0,75	E08KH-02030100301	1	500	pkt.	Price on request
HIS 0,75 DIN	E08KH-02030100401	1	500	pkt.	Price on request
HIS 0,75 F	E08KH-02030100501	1	500	pkt.	Price on request
HIS 1	E08KH-02030100601	1	500	pkt.	Price on request
HIS 1 DIN	E08KH-02030100701	1	500	pkt.	Price on request
HIS 1,5	E08KH-02030100801	1	500	pkt.	Price on request
HIS 1,5 DIN	E08KH-02030100901	1	500	pkt.	Price on request
HIS 2,5	E08KH-02030101001	1	500	pkt.	Price on request
HIS 2,5 F	E08KH-02030101101	1	500	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polypropylene
Material	Cu
Halogen-free	yes
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +105
L₁	14
L₂	8
Wykonanie	DIN 46228/4 (concerns only sizes of single terminal)

Name	d₁	d₂	R	Cross-section [mm²]	AWG cross-section	Insulation colour
HIS 0,5	1,0	2,6	3,6	0,5	20	orange
HIS 0,5 DIN	1,0	2,6	3,6	0,5	20	white
HIS 0,75	1,2	2,8	3,6	0,75	18	white
HIS 0,75 DIN	1,2	2,8	3,6	0,75	18	grey
HIS 0,75 F	1,2	2,8	3,6	0,75	18	blue
HIS 1	1,4	3,0	4,2	1	18	yellow
HIS 1 DIN	1,4	3,0	4,2	1	18	red
HIS 1,5	1,7	3,5	4,2	1,5	16	red
HIS 1,5 DIN	1,7	3,5	4,2	1,5	16	black
HIS 2,5	2,2	4,2	5,0	2,5	14	blue
HIS 2,5 F	2,2	4,2	5,0	2,5	14	grey

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Koncowki_tulejkowe_HIS_w_postaci_paskow_EN.pdf	EN	04-07-2025	378.45 KB	PDF	Download
Catalog card	ERGOM_Koncowki_tulejkowe_HIS_w_postaci_paskow_PL.pdf	PL	04-07-2025	398.17 KB	PDF	Download
