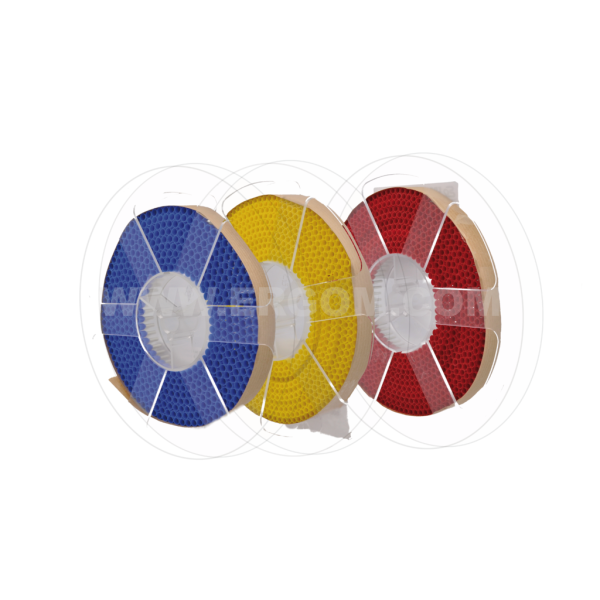

Cord end terminals in strip for automatic crimping machine, HIT type

Cord end terminals in strip for automatic crimping machine, HIT type

Main data of the product series

Product name
Cord end terminals in strip for automatic crimping machine, HIT type
Category
Insulated
Insulation
polypropylene
Operating temperature [°C]
-30 ÷ +105
Surface
tin-plated
Material
Cu
Note!
On request available bigger spools (quantity of cord end terminals in strip)

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
HIT 2,5 E08KH-02030201001 1 500 pkt. Price on request
HIT 2,5 F E08KH-02030201101 1 500 pkt. Price on request
HIT 0,5 E08KH-02030202001 1 1 100 pkt. Price on request
HIT 0,5 DIN E08KH-02030202101 1 1 100 pkt. Price on request
HIT 0,75 E08KH-02030202201 1 1 100 pkt. Price on request
HIT 0,75 DIN E08KH-02030202301 1 1 100 pkt. Price on request
HIT 0,75 F E08KH-02030202401 1 1 100 pkt. Price on request
HIT 1 E08KH-02030202501 1 800 pkt. Price on request
HIT 1 DIN E08KH-02030202601 1 800 pkt. Price on request
HIT 1,5 E08KH-02030202701 1 800 pkt. Price on request
HIT 1,5 DIN E08KH-02030202801 1 800 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation polypropylene
Material Cu
Halogen-free yes
Surface tin-plated
Operating temperature [°C] -30 ÷ +105
L1 14
L2 8
Wykonanie DIN 46228/4 (concerns only sizes of single terminal)
Name d1 d2 R Cross-section [mm²] AWG cross-section Insulation colour
HIT 2,5 2,2 4,2 5,0 2,5 14 blue
HIT 2,5 F 2,2 4,2 5,0 2,5 14 grey
HIT 0,5 1,0 2,6 3,6 0,5 20 orange
HIT 0,5 DIN 1,0 2,6 3,6 0,5 20 white
HIT 0,75 1,2 2,8 3,6 0,75 18 white
HIT 0,75 DIN 1,2 2,8 3,6 0,75 18 grey
HIT 0,75 F 1,2 2,8 3,6 0,75 18 blue
HIT 1 1,4 3,0 4,2 1 18 yellow
HIT 1 DIN 1,4 3,0 4,2 1 18 red
HIT 1,5 1,7 3,5 4,2 1,5 16 red
HIT 1,5 DIN 1,7 3,5 4,2 1,5 16 black

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_tulejkowe_HIT_w_postaci_tasmy_do_automatu_EN.pdf EN 04-07-2025 356.07 KB PDF Download
Catalog card ERGOM_Koncowki_tulejkowe_HIT_w_postaci_tasmy_do_automatu_PL.pdf PL 04-07-2025 368.06 KB PDF Download
