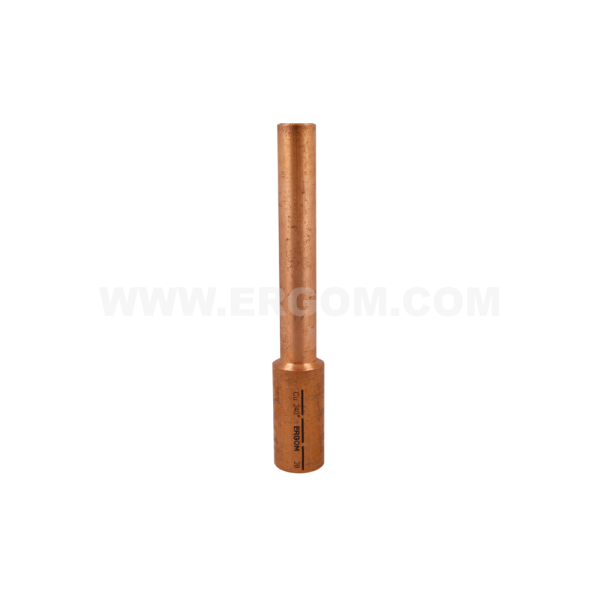

Copper pin terminals, BMV type

Copper pin terminals, BMV type

Main data of the product series

Product name
Copper pin terminals, BMV type
Category
Pins
Surface
uncoated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
BMV 35 E11KM-02120100100 10 1 pcs. Price on request
BMV 50 E11KM-02120100200 10 1 pcs. Price on request
BMV 70 E11KM-02120100300 10 1 pcs. Price on request
BMV 95 E11KM-02120100400 10 1 pcs. Price on request
BMV 120 E11KM-02120100500 10 1 pcs. Price on request
BMV 150 E11KM-02120100600 10 1 pcs. Price on request
BMV 185 E11KM-02120100700 10 1 pcs. Price on request
BMV 240 E11KM-02120100810 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
L2 125
D2 20
Wykonanie DIN 46267 Part 1 – concerns diameters the tubular part
Name d L1 L3 D1 Cross-section, rm/sm [mm²] Cross-section, re/se [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
BMV 35 8,2 165 20 12,5 35 50 12 2 4
BMV 50 10,0 165 28 14,5 50 70 14 2 4
BMV 70 11,5 165 28 16,5 70 95 16 2 4
BMV 95 13,5 165 35 19,0 95 120 18 2 4
BMV 120 15,5 165 35 21,0 120 150 20 2 4
BMV 150 17,0 165 40 23,5 150 185 22 2 4
BMV 185 19,0 170 42 25,5 185 240 25 2 5
BMV 240 21,5 185 42 29,0 240 300 28 3 5

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Bolce_miedziane_typu_BMV_EN.pdf EN 04-07-2025 404.68 KB PDF Download
Catalog card ERGOM_Bolce_miedziane_typu_BMV_PL.pdf PL 04-07-2025 449.93 KB PDF Download
