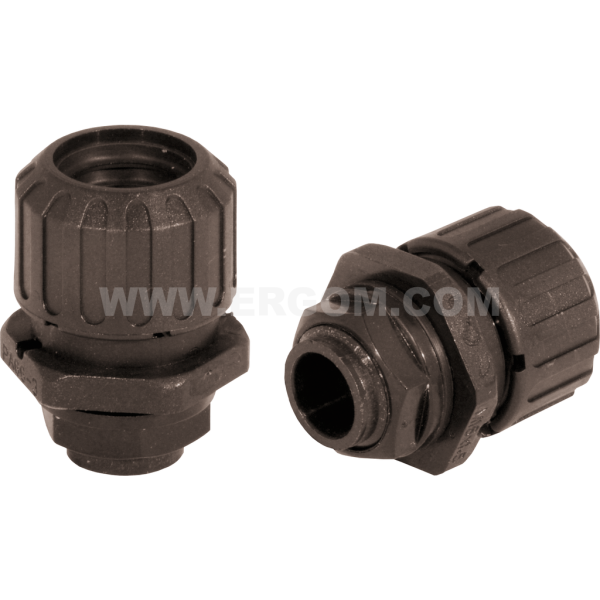

Conduit-and-box joint, LRS, LRS...M

Conduit-and-box joint, LRS, LRS...M

Main data of the product series

Product name
Conduit-and-box joint, LRS, LRS...M
Category
Accessories for corrugated conduits made of polyamide
Operating temperature [°C]
-40 ÷ +120
Material
polyamide 6.6
Colour
black
IP degree of protection
IP67
Note!
Black N BK, N...M BK nuts and UUPE, UUPE...M gland seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LRS 16M/7 E03DK-07010200101 10 10 pcs. Price on request
LRS 16M/9 E03DK-07010200201 10 10 pcs. Price on request
LRS 16M/11 E03DK-07010200301 10 10 pcs. Price on request
LRS 20M/11 E03DK-07010200401 10 10 pcs. Price on request
LRS 20M/16 E03DK-07010200501 10 10 pcs. Price on request
LRS 25M/21 E03DK-07010200601 10 10 pcs. Price on request
LRS 32M/29 E03DK-07010200701 10 10 pcs. Price on request
LRS 40M/36 E03DK-07010200801 10 10 pcs. Price on request
LRS 50M/48 E03DK-07010200901 10 10 pcs. Price on request
LRS 9/7 E03DK-07010300101 10 10 pcs. Price on request
LRS 9/9 E03DK-07010300201 10 10 pcs. Price on request
LRS 11/11 E03DK-07010300301 10 10 pcs. Price on request
LRS 16/16 E03DK-07010300401 10 10 pcs. Price on request
LRS 21/21 E03DK-07010300501 10 10 pcs. Price on request
LRS 29/29 E03DK-07010300601 10 10 pcs. Price on request
LRS 36/36 E03DK-07010300701 10 10 pcs. Price on request
LRS 48/48 E03DK-07010300801 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Operating temperature [°C] -40 ÷ +120
Colour black
Stopień ochrony IP67
Name M thread PG thread Tube outside diameter [mm] Tube type For spanner A D L C E
LRS 16M/7 M16x1,5 - 10,0 WTE 7, WTE 7L, WTE 7R, WTE 7W 22,0 22,8 22,5 10,7 11,5
LRS 16M/9 M16x1,5 - 13,0 WTE 9, WTE 9L, WTE 9R, WTE 9W 22,0 22,8 26,5 10,7 11,5
LRS 16M/11 M16x1,5 - 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 26,3 26,0 25,5 10,7 11,5
LRS 20M/11 M20x1,5 - 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 29,0 26,0 22,5 15,0 14,0
LRS 20M/16 M20x1,5 - 21,2 WTE 16, WTE 16L, WTE 16R, WTE 16W 30,0 31,0 25,2 15,0 14,0
LRS 25M/21 M25x1,5 - 28,5 WTE 21, WTE 21L, WTE 21R, WTE 21W 38,0 39,0 29,8 19,0 15,2
LRS 32M/29 M32x1,5 - 34,5 WTE 29, WTE 29L, WTE 29R, WTE 29W 46,0 46,1 32,8 25,7 16,0
LRS 40M/36 M40x1,5 - 42,5 WTE 36, WTE 36L, WTE 36R, WTE 36W 59,0 58,0 42,5 31,0 16,0
LRS 50M/48 M50x1,5 - 54,5 WTE 48, WTE 48L, WTE 48R, WTE 48W 73,0 71,7 42,5 41,0 16,0
LRS 9/7 - PG9 10,0 WTE 7, WTE 7L, WTE 7R, WTE 7W 22,0 22,8 20,0 10,7 10,0
LRS 9/9 - PG9 13,0 WTE 9, WTE 9L, WTE 9R, WTE 9W 21,5 22,0 26,5 10,7 10,0
LRS 11/11 - PG11 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 27,0 26,0 22,5 13,8 10,0
LRS 16/16 - PG16 21,2 WTE 16, WTE 16L, WTE 16R, WTE 16W 29,6 31,0 28,0 17,9 11,2
LRS 21/21 - PG21 28,5 WTE 21, WTE 21L, WTE 21R, WTE 21W 38,0 39,0 30,0 22,6 12,2
LRS 29/29 - PG29 34,5 WTE 29, WTE 29L, WTE 29R, WTE 29W 46,0 46,1 32,8 31,0 12,2
LRS 36/36 - PG36 42,5 WTE 36, WTE 36L, WTE 36R, WTE 36W 59,0 59,0 42,5 37,9 12,0
LRS 48/48 - PG48 54,5 WTE 48, WTE 48L, WTE 48R, WTE 48W 73,0 71,1 42,5 49,5 12,0

Guide

Conduit-and-box joint, LRS, LRS...M
Conduit-and-box joint, LRS, LRS...M

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_rura-skrzynka_typu_LRS_LRS_M_EN.pdf EN 14-05-2025 238.99 KB PDF Download
Catalog card ERGOM_Lacznik_rura-skrzynka_typu_LRS_LRS_M_PL.pdf PL 14-05-2025 279.79 KB PDF Download
