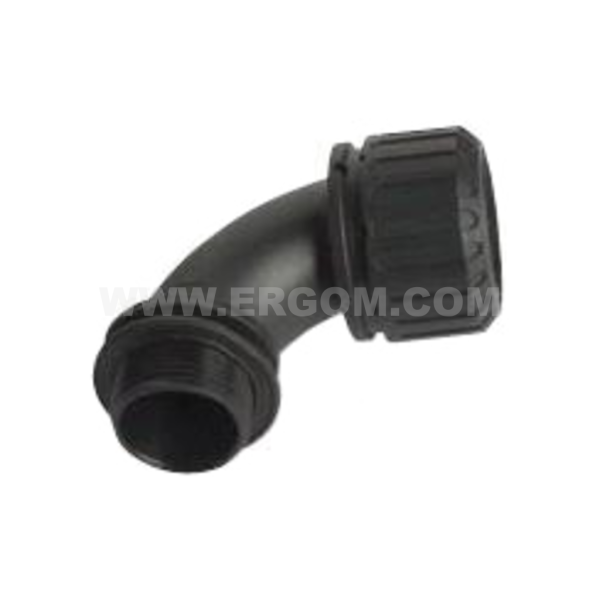

Conduit-and-box angle joint, LRSK...M type

Conduit-and-box angle joint, LRSK...M type

Main data of the product series

Product name
Conduit-and-box angle joint, LRSK...M type
Category
Accessories for corrugated conduits made of polyamide
Operating temperature [°C]
-40 ÷ +120
Material
polyamide 6.6
Colour
black
IP degree of protection
IP67

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LRSK 16M/7 E03DK-07010100101 10 10 pcs. Price on request
LRSK 16M/9 E03DK-07010100201 10 10 pcs. Price on request
LRSK 16M/11 E03DK-07010100301 10 10 pcs. Price on request
LRSK 20M/11 E03DK-07010100401 10 10 pcs. Price on request
LRSK 20M/16 E03DK-07010100501 10 10 pcs. Price on request
LRSK 25M/21 E03DK-07010100601 10 10 pcs. Price on request
LRSK 32M/29 E03DK-07010100701 10 10 pcs. Price on request
LRSK 40M/36 E03DK-07010100801 10 10 pcs. Price on request
LRSK 50M/48 E03DK-07010100901 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Operating temperature [°C] -40 ÷ +120
Colour black
Stopień ochrony IP67
Name M thread Tube type D L C E H
LRSK 16M/7 M16x1,5 WTE 7, WTE 7L, WTE 7R, WTE 7W 22,8 57,0 11,3 11,5 34,0
LRSK 16M/9 M16x1,5 WTE 9, WTE 9L, WTE 9R, WTE 9W 22,8 57,0 11,3 11,5 34,0
LRSK 16M/11 M16x1,5 WTE 11, WTE 11L, WTE 11R, WTE 11W 26,0 57,4 15,2 11,5 35,8
LRSK 20M/11 M20x1,5 WTE 11, WTE 11L, WTE 11R, WTE 11W 26,0 59,9 15,2 14,0 35,8
LRSK 20M/16 M20x1,5 WTE 16, WTE 16L, WTE 16R, WTE 16W 31,0 60,7 15,2 14,0 38,3
LRSK 25M/21 M25x1,5 WTE 21, WTE 21L, WTE 21R, WTE 21W 39,0 72,1 20,2 15,2 47,0
LRSK 32M/29 M32x1,5 WTE 29, WTE 29L, WTE 29R, WTE 29W 46,1 85,2 25,9 16,0 59,5
LRSK 40M/36 M40x1,5 WTE 36, WTE 36L, WTE 36R, WTE 36W 58,0 100,4 34,0 16,0 77,0
LRSK 50M/48 M50x1,5 WTE 48, WTE 48L, WTE 48R, WTE 48W 71,7 122,9 40,2 16,0 98,2

Guide

Conduit-and-box angle joint, LRSK...M type
Conduit-and-box angle joint, LRSK...M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_katowy_typu_LRSK_M_EN.pdf EN 14-05-2025 239.62 KB PDF Download
Catalog card ERGOM_Lacznik_katowy_typu_LRSK_M_PL.pdf PL 14-05-2025 279.11 KB PDF Download
