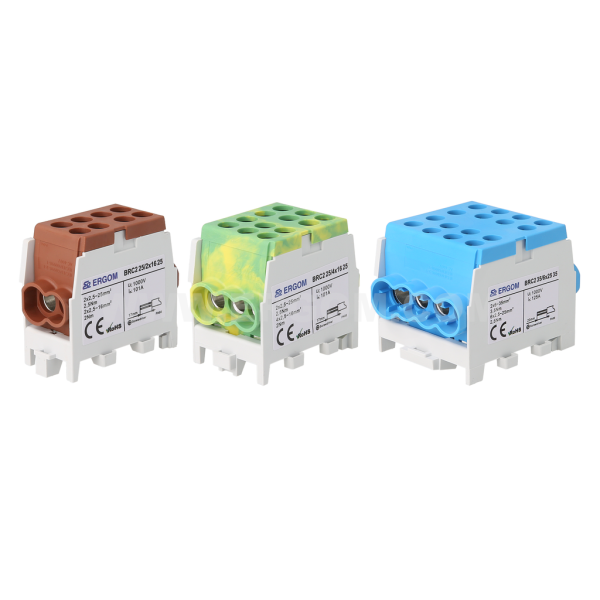

Compact distribution blocks, BRC2 type 1000V

Compact distribution blocks, BRC2 type 1000V

Main data of the product series

Product name
Compact distribution blocks, BRC2 type 1000V
Category
Distribution blocks
Installation
rail, TSE 35
Material
body – polyamide; terminal - brass; bolts – galvanized steel
Standards
EN 60947-1; EN 60947-7-1; EN 60998-1; EN 60998-2-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
BRC2 25/2x16 25 GY R33RA-02030011101 14 14 pcs. Price on request
BRC2 25/2x16 25 BL R33RA-02030011201 14 14 pcs. Price on request
BRC2 25/2x16 25 GR R33RA-02030011301 14 14 pcs. Price on request
BRC2 25/2x16 25 YL-GR R33RA-02030011401 14 14 pcs. Price on request
BRC2 25/2x16 25 BK R33RA-02030011501 14 14 pcs. Price on request
BRC2 25/2x16 25 BR R33RA-02030011601 14 14 pcs. Price on request
BRC2 25/4x16 25 GY R33RA-02030012101 10 10 pcs. Price on request
BRC2 25/4x16 25 BL R33RA-02030012201 10 10 pcs. Price on request
BRC2 25/4x16 25 GR R33RA-02030012301 10 10 pcs. Price on request
BRC2 25/4x16 25 YL-GR R33RA-02030012401 10 10 pcs. Price on request
BRC2 25/4x16 25 BK R33RA-02030012501 10 10 pcs. Price on request
BRC2 25/4x16 25 BR R33RA-02030012601 10 10 pcs. Price on request
BRC2 25/6x16 25 GY R33RA-02030013101 8 8 pcs. Price on request
BRC2 25/6x16 25 BL R33RA-02030013201 8 8 pcs. Price on request
BRC2 25/6x16 25 GR R33RA-02030013301 8 8 pcs. Price on request
BRC2 25/6x16 25 YL-GR R33RA-02030013401 8 8 pcs. Price on request
BRC2 25/6x16 25 BK R33RA-02030013501 8 8 pcs. Price on request
BRC2 25/6x16 25 BR R33RA-02030013601 8 8 pcs. Price on request
BRC2 25/3x25 GY R33RA-02030014101 14 14 pcs. Price on request
BRC2 25/3x25 BL R33RA-02030014201 14 14 pcs. Price on request
BRC2 25/3x25 GR R33RA-02030014301 14 14 pcs. Price on request
BRC2 25/3x25 YL-GR R33RA-02030014401 14 14 pcs. Price on request
BRC2 25/3x25 BK R33RA-02030014501 14 14 pcs. Price on request
BRC2 25/3x25 BR R33RA-02030014601 14 14 pcs. Price on request
BRC2 35/2x25 35 GY R33RA-02030015101 14 14 pcs. Price on request
BRC2 35/2x25 35 BL R33RA-02030015201 14 14 pcs. Price on request
BRC2 35/2x25 35 GR R33RA-02030015301 14 14 pcs. Price on request
BRC2 35/2x25 35 YL-GR R33RA-02030015401 14 14 pcs. Price on request
BRC2 35/2x25 35 BK R33RA-02030015501 14 14 pcs. Price on request
BRC2 35/2x25 35 BR R33RA-02030015601 14 14 pcs. Price on request
BRC2 35/4x25 35 GY R33RA-02030016101 10 10 pcs. Price on request
BRC2 35/4x25 35 BL R33RA-02030016201 10 10 pcs. Price on request
BRC2 35/4x25 35 GR R33RA-02030016301 10 10 pcs. Price on request
BRC2 35/4x25 35 YL-GR R33RA-02030016401 10 10 pcs. Price on request
BRC2 35/4x25 35 BK R33RA-02030016501 10 10 pcs. Price on request
BRC2 35/4x25 35 BR R33RA-02030016601 10 10 pcs. Price on request
BRC2 35/6x25 35 GY R33RA-02030017101 8 8 pcs. Price on request
BRC2 35/6x25 35 BL R33RA-02030017201 8 8 pcs. Price on request
BRC2 35/6x25 35 GR R33RA-02030017301 8 8 pcs. Price on request
BRC2 35/6x25 35 YL-GR R33RA-02030017401 8 8 pcs. Price on request
BRC2 35/6x25 35 BK R33RA-02030017501 8 8 pcs. Price on request
BRC2 35/6x25 35 BR R33RA-02030017601 8 8 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V AC] 1000
Electric strength [kV] 2
Number of poles 1
Material body – polyamide; terminal - brass; bolts – galvanized steel
Installation rail, TSE 35
Normy EN 60947-1; EN 60947-7-1; EN 60998-1; EN 60998-2-1
Name Short-circuit withstand current [kA/1s] Rated continuous current In 40°C [A] Number of inputs / outputs Colour Cross-sections of cables (wire/cord) [mm²] Tightening torque [Nm] W S D
BRC2 25/2x16 25 GY 3 101 1x25 / 2x16 1x25 grey 2,5-25 / 2,5-16 2 / 2,5 44 20 40
BRC2 25/2x16 25 BL 3 101 1x25 / 2x16 1x25 blue 2,5-25 / 2,5-16 2 / 2,5 44 20 40
BRC2 25/2x16 25 GR 3 101 1x25 / 2x16 1x25 green 2,5-25 / 2,5-16 2 / 2,5 44 20 40
BRC2 25/2x16 25 YL-GR 3 101 1x25 / 2x16 1x25 yellow-green 2,5-25 / 2,5-16 2 / 2,5 44 20 40
BRC2 25/2x16 25 BK 3 101 1x25 / 2x16 1x25 black 2,5-25 / 2,5-16 2 / 2,5 44 20 40
BRC2 25/2x16 25 BR 3 101 1x25 / 2x16 1x25 brown 2,5-25 / 2,5-16 2 / 2,5 44 20 40
BRC2 25/4x16 25 GY 3 101 1x25 / 4x16 1x25 grey 2,5-25 / 2,5-16 2 / 2,5 44 27,5 40
BRC2 25/4x16 25 BL 3 101 1x25 / 4x16 1x25 blue 2,5-25 / 2,5-16 2 / 2,5 44 27,5 40
BRC2 25/4x16 25 GR 3 101 1x25 / 4x16 1x25 green 2,5-25 / 2,5-16 2 / 2,5 44 27,5 40
BRC2 25/4x16 25 YL-GR 3 101 1x25 / 4x16 1x25 yellow-green 2,5-25 / 2,5-16 2 / 2,5 44 27,5 40
BRC2 25/4x16 25 BK 3 101 1x25 / 4x16 1x25 black 2,5-25 / 2,5-16 2 / 2,5 44 27,5 40
BRC2 25/4x16 25 BR 3 101 1x25 / 4x16 1x25 brown 2,5-25 / 2,5-16 2 / 2,5 44 27,5 40
BRC2 25/6x16 25 GY 3 101 1x25 / 6x16 1x25 grey 2,5-25 / 2,5-16 2 / 2,5 44 35 40
BRC2 25/6x16 25 BL 3 101 1x25 / 6x16 1x25 blue 2,5-25 / 2,5-16 2 / 2,5 44 35 40
BRC2 25/6x16 25 GR 3 101 1x25 / 6x16 1x25 green 2,5-25 / 2,5-16 2 / 2,5 44 35 40
BRC2 25/6x16 25 YL-GR 3 101 1x25 / 6x16 1x25 yellow-green 2,5-25 / 2,5-16 2 / 2,5 44 35 40
BRC2 25/6x16 25 BK 3 101 1x25 / 6x16 1x25 black 2,5-25 / 2,5-16 2 / 2,5 44 35 40
BRC2 25/6x16 25 BR 3 101 1x25 / 6x16 1x25 brown 2,5-25 / 2,5-16 2 / 2,5 44 35 40
BRC2 25/3x25 GY 3 101 1x25 / 3x25 grey 2,5-25 / 2,5-16 2,5 44 20 41
BRC2 25/3x25 BL 3 101 1x25 / 3x25 blue 2,5-25 / 2,5-16 2,5 44 20 41
BRC2 25/3x25 GR 3 101 1x25 / 3x25 green 2,5-25 / 2,5-16 2,5 44 20 41
BRC2 25/3x25 YL-GR 3 101 1x25 / 3x25 yellow-green 2,5-25 / 2,5-16 2,5 44 20 41
BRC2 25/3x25 BK 3 101 1x25 / 3x25 black 2,5-25 / 2,5-16 2,5 44 20 41
BRC2 25/3x25 BR 3 101 1x25 / 3x25 brown 2,5-25 / 2,5-16 2,5 44 20 41
BRC2 35/2x25 35 GY 4,2 125 1x35 / 2x25 1x35 grey 6-35 / 6-25 2,5 / 3,5 55 23,5 43
BRC2 35/2x25 35 BL 4,2 125 1x35 / 2x25 1x35 blue 6-35 / 6-25 2,5 / 3,5 55 23,5 43
BRC2 35/2x25 35 GR 4,2 125 1x35 / 2x25 1x35 green 6-35 / 6-25 2,5 / 3,5 55 23,5 43
BRC2 35/2x25 35 YL-GR 4,2 125 1x35 / 2x25 1x35 yellow-green 6-35 / 6-25 2,5 / 3,5 55 23,5 43
BRC2 35/2x25 35 BK 4,2 125 1x35 / 2x25 1x35 black 6-35 / 6-25 2,5 / 3,5 55 23,5 43
BRC2 35/2x25 35 BR 4,2 125 1x35 / 2x25 1x35 brown 6-35 / 6-25 2,5 / 3,5 55 23,5 43
BRC2 35/4x25 35 GY 4,2 125 1x35 / 4x25 1x35 grey 6-35 / 6-25 2,5 / 3,5 55 33 43
BRC2 35/4x25 35 BL 4,2 125 1x35 / 4x25 1x35 blue 6-35 / 6-25 2,5 / 3,5 55 33 43
BRC2 35/4x25 35 GR 4,2 125 1x35 / 4x25 1x35 green 6-35 / 6-25 2,5 / 3,5 55 33 43
BRC2 35/4x25 35 YL-GR 4,2 125 1x35 / 4x25 1x35 yellow-green 6-35 / 6-25 2,5 / 3,5 55 33 43
BRC2 35/4x25 35 BK 4,2 125 1x35 / 4x25 1x35 black 6-35 / 6-25 2,5 / 3,5 55 33 43
BRC2 35/4x25 35 BR 4,2 125 1x35 / 4x25 1x35 brown 6-35 / 6-25 2,5 / 3,5 55 33 43
BRC2 35/6x25 35 GY 4,2 125 1x35 / 6x25 1x35 grey 6-35 / 6-25 2,5 / 3,5 55 42,5 43
BRC2 35/6x25 35 BL 4,2 125 1x35 / 6x25 1x35 blue 6-35 / 6-25 2,5 / 3,5 55 42,5 43
BRC2 35/6x25 35 GR 4,2 125 1x35 / 6x25 1x35 green 6-35 / 6-25 2,5 / 3,5 55 42,5 43
BRC2 35/6x25 35 YL-GR 4,2 125 1x35 / 6x25 1x35 yellow-green 6-35 / 6-25 2,5 / 3,5 55 42,5 43
BRC2 35/6x25 35 BK 4,2 125 1x35 / 6x25 1x35 black 6-35 / 6-25 2,5 / 3,5 55 42,5 43
BRC2 35/6x25 35 BR 4,2 125 1x35 / 6x25 1x35 brown 6-35 / 6-25 2,5 / 3,5 55 42,5 43

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Bloki_rozdzielcze_typ_BRC2_EN.pdf EN 15-05-2025 344.88 KB PDF Download
Catalog card ERGOM_Bloki_rozdzielcze_typ_BRC2_PL.pdf PL 15-05-2025 393.88 KB PDF Download
