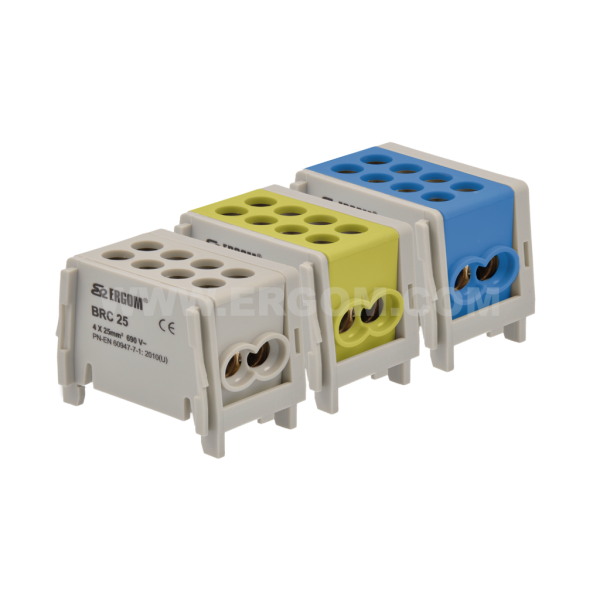

Compact distribution blocks, BRC type 690V

Compact distribution blocks, BRC type 690V

Main data of the product series

Product name
Compact distribution blocks, BRC type 690V
Category
Distribution blocks
Installation
rail, TSE 35
Material
body – polyamide; terminal - brass; bolts – galvanized steel
Standards
EN 60947-7-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
BRC 25-1/2 R33RA-02030000101 1 1 pcs. Price on request
BRC 25-2/4 R33RA-02030000201 1 1 pcs. Price on request
BRC 25-3/6 R33RA-02030000301 1 1 pcs. Price on request
BRC 25-4/8 R33RA-02030000401 1 1 pcs. Price on request
BRC 25-1/2 BL R33RA-02030000501 1 1 pcs. Price on request
BRC 25-1/2 YL/GR R33RA-02030000601 1 1 pcs. Price on request
BRC 35/25 R33RA-02030001101 1 1 pcs. Price on request
BRC 35/25 BL R33RA-02030001201 1 1 pcs. Price on request
BRC 35/25 YL/GR R33RA-02030001301 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V AC] 690
Electric strength [kV] 2
Material body – polyamide; terminal - brass; bolts – galvanized steel
Installation rail, TSE 35
W1 53
Normy EN 60947-7-1
Name Rated continuous current In 40°C [A] Number of inputs / outputs Number of poles Colour Cross-sections of cables (wire/cord) [mm²] Tightening torque [Nm] W S S1 D
BRC 25-1/2 100 2x25 / 2x25 1 grey 2,5-25 / 2,5-16 2,5 43 27 20 39,5
BRC 25-2/4 100 4x25 /4x25 2 grey 2,5-25 / 2,5-16 2,5 43 27 20 39,5
BRC 25-3/6 100 6x25 / 6x25 3 grey 2,5-25 / 2,5-16 2,5 43 27 20 39,5
BRC 25-4/8 100 8x25 / 8x25 4 grey 2,5-25 / 2,5-16 2,5 43 27 20 39,5
BRC 25-1/2 BL 100 2x25 / 2x25 1 blue 2,5-25 / 2,5-16 2,5 43 27 20 39,5
BRC 25-1/2 YL/GR 100 2x25 / 2x25 1 yellow-green 2,5-25 / 2,5-16 2,5 43 27 20 39,5
BRC 35/25 125 1x25 / 1x25 1x35 / 1x35 1 grey 6-35 / 6-25 2,5 / 3,5 59,5 33 27 37
BRC 35/25 BL 125 1x25 / 1x25 1x35 / 1x35 1 blue 6-35 / 6-25 2,5 / 3,5 59,5 33 27 37
BRC 35/25 YL/GR 125 1x25 / 1x25 1x35 / 1x35 1 yellow-green 6-35 / 6-25 2,5 / 3,5 59,5 33 27 37

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Bloki_rozdzielcze_kompaktowe_typ_BRC_EN.pdf EN 15-05-2025 256.14 KB PDF Download
Catalog card ERGOM_Bloki_rozdzielcze_kompaktowe_typ_BRC_PL.pdf PL 15-05-2025 303.45 KB PDF Download
