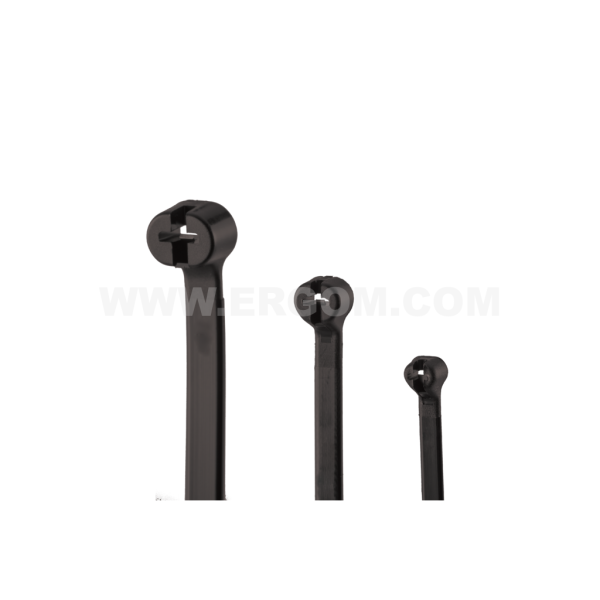

Cable ties, TYUV type

Cable ties, TYUV type

Main data of the product series

Product name: Cable ties, TYUV type
Category: TY type
Operating temperature [°C]: -40 ÷ +85
Colour: black
Material: polyamide 6.6 resistant to ultraviolet radiation; stainless steel
Flammability class: UL 94 V2

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
TYUV 20/3	E01TK-01150100101	1	100	pkt.	Price on request
TYUV 20/3,6	E01TK-01150100201	1	100	pkt.	Price on request
TYUV 30/3,6	E01TK-01150100301	1	100	pkt.	Price on request
TYUV 30/5	E01TK-01150100401	1	100	pkt.	Price on request
TYUV 40/5	E01TK-01150100501	1	100	pkt.	Price on request
TYUV 30/8	E01TK-01150100601	1	100	pkt.	Price on request
TYUV 70/8	E01TK-01150100701	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Material	polyamide 6.6 resistant to ultraviolet radiation; stainless steel
Halogen-free	yes
Colour	black
Operating temperature [°C]	-40 ÷ +85
Minimum installation temperature [°C]	0
Klasa palności	UL 94 V2
Normy	EN IEC 62275:2019

Name	Tensile strength, min. [daN]	Max. bundle dia. [mm]	Tool type	L	W
TYUV 20/3	8	50	MK III A, MK III PR	200	2,4
TYUV 20/3,6	18	50	MK III A, MK III B, MK III C, MK III PR	208	3,6
TYUV 30/3,6	18	76	MK III A, MK III B, MK III C, MK III PR	281	3,6
TYUV 30/5	22	78	MK III A, MK III B, MK III C, MK III PR	293	4,8
TYUV 40/5	22	102	MK III A, MK III B, MK III C, MK III PR	360	4,8
TYUV 30/8	54	90	MK III B, MK III C	338	7,6
TYUV 70/8	54	229	MK III B, MK III C	762	7,6

Guide

Cable ties, TYUV type — 1.1 - Insert the tip of the tie - insert the end of the cable tie into its lock

Cable ties, TYUV type — 1.2 - Tighten manually the tie till the complete fixing of the cables

Cable ties, TYUV type — 1.3 - Avoid sharp bending of the tie it will not improve the fixing strength

Cable ties, TYUV type — 1.4 - Cut the exceeding part of the tie with the tool, leaving a few mm length as safety

Cable ties, TYUV type — 2.1 - Tightening the cable ties with a tool - set the max tension of the tool depending on the size of the tie

Cable ties, TYUV type — 2.2 - Grip the cable tie with the tool

Cable ties, TYUV type — 2.3 - Tighten the tie till the complete fixing of the cables

Cable ties, TYUV type — 2.4 - Cut the exceeding part of the cable tie, properly adjusting the setting of the tool

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Tasmy_kablowe_typu_TYUV_EN.pdf	EN	30-05-2025	188.5 KB	PDF	Download
Catalog card	ERGOM_Tasmy_kablowe_typu_TYUV_PL.pdf	PL	30-05-2025	228.86 KB	PDF	Download
