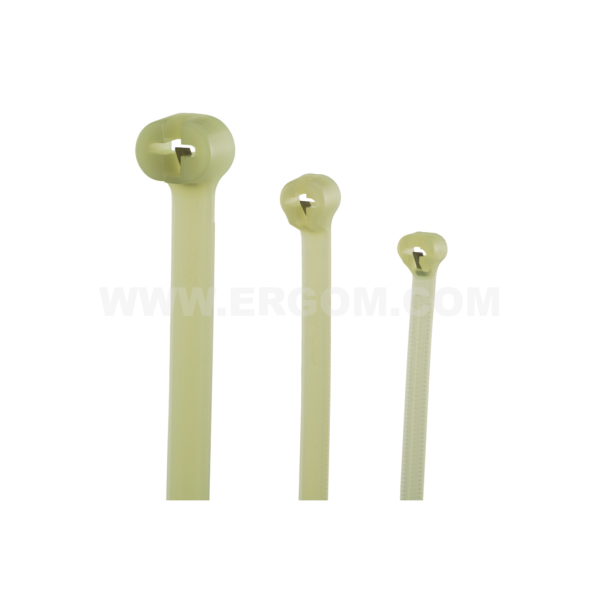

Cable ties TYS type

Cable ties TYS type

Main data of the product series

Product name
Cable ties TYS type
Category
TY type
Operating temperature [°C]
-40 ÷ +105
Colour
natural (bright green in different shades)
Material
polyamide 6.6 thermal stabilised; stainless steel
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TYS 9/3 E01TK-01160100101 1 100 pkt. Price on request
TYS 20/3 E01TK-01160100151 1 100 pkt. Price on request
TYS 14/3,6 E01TK-01160100201 1 100 pkt. Price on request
TYS 20/5 E01TK-01160100301 1 100 pkt. Price on request
TYS 40/5 E01TK-01160100401 1 100 pkt. Price on request
TYS 20/8 E01TK-01160100501 1 100 pkt. Price on request
TYS 30/8 E01TK-01160100601 1 100 pkt. Price on request
TYS 70/8 E01TK-01160100701 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6 thermal stabilised; stainless steel
Halogen-free yes
Colour natural (bright green in different shades)
Operating temperature [°C] -40 ÷ +105
Minimum installation temperature [°C] 0
Klasa palności UL 94 V2
Normy EN IEC 62275:2019
Name Tensile strength, min. [daN] Max. bundle dia. [mm] Tool type L W
TYS 9/3 8 16 MK III A, MK III PR 92 2,4
TYS 20/3 8 50 MK III A, MK III PR 200 2,4
TYS 14/3,6 18 29 MK III A, MK III B, MK III C, MK III PR 140 3,6
TYS 20/5 22 45 MK III A, MK III B, MK III C, MK III PR 186 4,8
TYS 40/5 22 102 MK III A, MK III B, MK III C, MK III PR 360 4,8
TYS 20/8 54 50 MK III B, MK III C 223 7,6
TYS 30/8 54 90 MK III B, MK III C 338 7,6
TYS 70/8 54 229 MK III B, MK III C 762 7,6

Guide

Cable ties TYS type
1.1 - Insert the tip of the tie - insert the end of the cable tie into its lock
Cable ties TYS type
1.2 - Tighten manually the tie till the complete fixing of the cables
Cable ties TYS type
1.3 - Avoid sharp bending of the tie it will not improve the fixing strength
Cable ties TYS type
1.4 - Cut the exceeding part of the tie with the tool, leaving a few mm length as safety
Cable ties TYS type
2.1 - Tightening the cable ties with a tool - set the max tension of the tool depending on the size of the tie
Cable ties TYS type
2.2 - Grip the cable tie with the tool
Cable ties TYS type
2.3 - Tighten the tie till the complete fixing of the cables
Cable ties TYS type
2.4 - Cut the exceeding part of the cable tie, properly adjusting the setting of the tool

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Tasmy_kablowe_typu_TYS_EN.pdf EN 30-05-2025 212.55 KB PDF Download
Catalog card ERGOM_Tasmy_kablowe_typu_TYS_PL.pdf PL 30-05-2025 233.4 KB PDF Download
