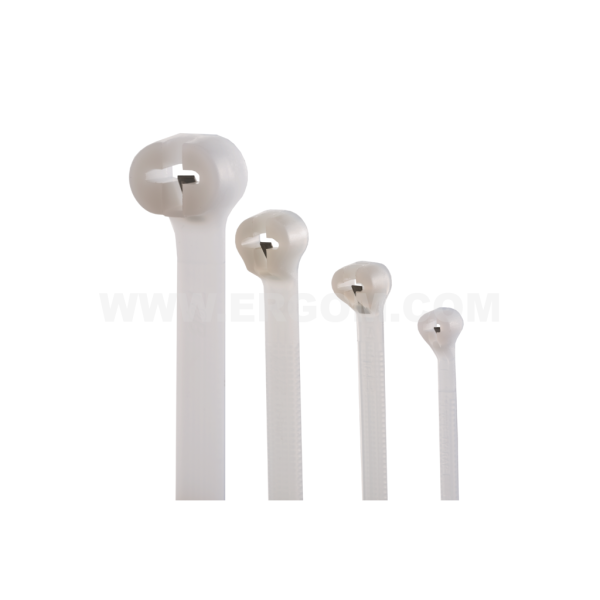

Cable ties, TY type

Cable ties, TY type

Main data of the product series

Product name
Cable ties, TY type
Category
TY type
Operating temperature [°C]
-40 ÷ +85
Colour
natural (bright)
Material
polyamide 6.6; stainless steel
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TY 9/3 E01TK-01120100101 1 100 pkt. Price on request
TY 20/3 E01TK-01120100201 1 100 pkt. Price on request
TY 14/3,6 E01TK-01120100301 1 100 pkt. Price on request
TY 20/3,6 E01TK-01120100401 1 100 pkt. Price on request
TY 30/3,6 E01TK-01120100501 1 100 pkt. Price on request
TY 40/3,6 E01TK-01120100601 1 100 pkt. Price on request
TY 20/5 E01TK-01120100701 1 100 pkt. Price on request
TY 30/5 E01TK-01120100801 1 100 pkt. Price on request
TY 40/5 E01TK-01120100901 1 100 pkt. Price on request
TY 20/8 E01TK-01120101001 1 100 pkt. Price on request
TY 30/8 E01TK-01120101101 1 100 pkt. Price on request
TY 70/8 E01TK-01120101201 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6; stainless steel
Halogen-free yes
Colour natural (bright)
Operating temperature [°C] -40 ÷ +85
Minimum installation temperature [°C] 0
Klasa palności UL 94 V2
Normy EN IEC 62275:2019
Name Tensile strength, min. [daN] Max. bundle dia. [mm] Tool type L W
TY 9/3 8 16 MK III A, MK III PR 92 2,4
TY 20/3 8 50 MK III A, MK III PR 200 2,4
TY 14/3,6 18 29 MK III A, MK III B, MK III C, MK III PR 140 3,6
TY 20/3,6 18 50 MK III A, MK III B, MK III C, MK III PR 208 3,6
TY 30/3,6 18 76 MK III A, MK III B, MK III C, MK III PR 281 3,6
TY 40/3,6 18 103 MK III A, MK III B, MK III C, MK III PR 368 3,6
TY 20/5 22 45 MK III A, MK III B, MK III C, MK III PR 186 4,8
TY 30/5 22 78 MK III A, MK III B, MK III C, MK III PR 293 4,8
TY 40/5 22 102 MK III A, MK III B, MK III C, MK III PR 360 4,8
TY 20/8 54 50 MK III B, MK III C 223 7,6
TY 30/8 54 90 MK III B, MK III C 338 7,6
TY 70/8 54 229 MK III B, MK III C 762 7,0

Guide

Cable ties, TY type
1.1 - Insert the tip of the tie - insert the end of the cable tie into its lock
Cable ties, TY type
1.2 - Tighten manually the tie till the complete fixing of the cables
Cable ties, TY type
1.3 - Avoid sharp bending of the tie it will not improve the fixing strength
Cable ties, TY type
1.4 - Cut the exceeding part of the tie with the tool, leaving a few mm length as safety
Cable ties, TY type
2.1 - Tightening the cable ties with a tool - set the max tension of the tool depending on the size of the tie
Cable ties, TY type
2.2 - Grip the cable tie with the tool
Cable ties, TY type
2.3 - Tighten the tie till the complete fixing of the cables
Cable ties, TY type
2.4 - Cut the exceeding part of the cable tie, properly adjusting the setting of the tool

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Tasmy_kablowe_TY_EN.pdf EN 30-05-2025 265.25 KB PDF Download
Catalog card ERGOM_Tasmy_kablowe_TY_PL.pdf PL 30-05-2025 305.4 KB PDF Download
