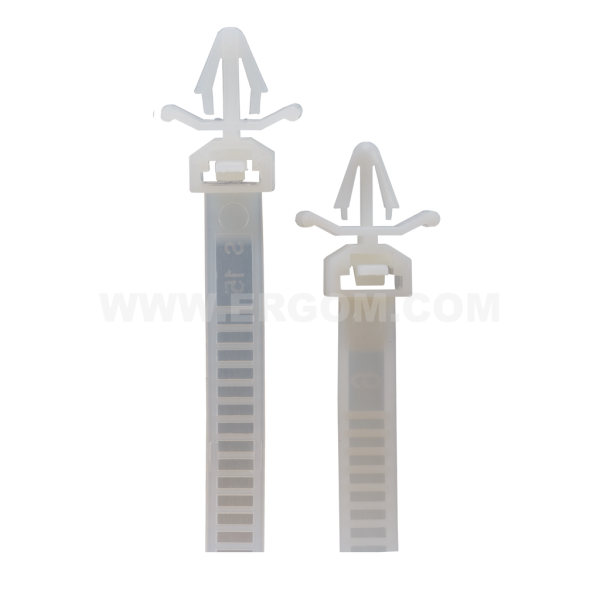

Cable ties, TKZD type

Cable ties, TKZD type

Main data of the product series

Product name
Cable ties, TKZD type
Category
TK type
Operating temperature [°C]
-40 ÷ +85
Colour
natural (bright)
Material
polyamide 6.6
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TKZD 20/5 E01TK-01060200101 1 100 pkt. Price on request
TKZD 14/8 E01TK-01060200201 1 100 pkt. Price on request
TKZD 16/8 E01TK-01060200301 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Colour natural (bright)
Operating temperature [°C] -40 ÷ +85
Minimum installation temperature [°C] 0
Hole dia. [mm] 6
Metal plate thickness [mm] 1,5
Klasa palności UL 94 V2
Normy EN IEC 62275:2019
Name Tensile strength, min. [daN] Max. bundle dia. [mm] L W
TKZD 20/5 20 48 210 4,5
TKZD 14/8 22 36 150 8
TKZD 16/8 22 38 165 8

Guide

Cable ties, TKZD type
Cable ties, TKZD type
Cable ties, TKZD type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Tasmy_kablowe_typu_TKZD_EN.pdf EN 30-05-2025 237.82 KB PDF Download
Catalog card ERGOM_Tasmy_kablowe_typu_TKZD_PL.pdf PL 30-05-2025 277.32 KB PDF Download
