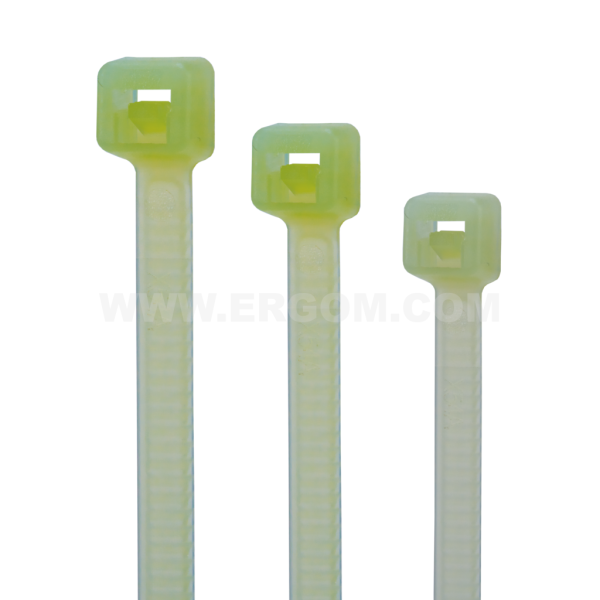

Cable ties, TKS type

Cable ties, TKS type

Main data of the product series

Product name: Cable ties, TKS type
Category: TK type
Operating temperature [°C]: -40 ÷ +105
Colour: light green
Material: polyamide 6.6
Flammability class: UL 94 V2

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
TKS 9/3	E01TK-01090100101	5	100	pkt.	Price on request
TKS 14/3,6	E01TK-01090100201	5	100	pkt.	Price on request
TKS 20/5	E01TK-01090100401	5	100	pkt.	Price on request
TKS 30/5	E01TK-01090100501	5	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Material	polyamide 6.6
Halogen-free	yes
Colour	light green
Operating temperature [°C]	-40 ÷ +105
Minimum installation temperature [°C]	0
Klasa palności	UL 94 V2
Normy	EN IEC 62275:2019

Name	Tensile strength, min. [daN]	Max. bundle dia. [mm]	Tool type	L	W
TKS 9/3	8	20	MK III A, MK III PR	98	2,5
TKS 14/3,6	18	33	MK III A, MK III B, MK III C, MK III PR	140	3,6
TKS 20/5	22	50	MK III A, MK III B, MK III C, MK III PR	200	4,8
TKS 30/5	22	76	MK III A, MK III B, MK III C, MK III PR	292	4,8

Guide

Cable ties, TKS type — 1.1 - Insert the tip of the tie - insert the end of the cable tie into its lock

Cable ties, TKS type — 1.2 - Tighten manually the tie till the complete fixing of the cables

Cable ties, TKS type — 1.3 - Avoid sharp bending of the tie it will not improve the fixing strength

Cable ties, TKS type — 1.4 - Cut the exceeding part of the tie with the tool, leaving a few mm length as safety

Cable ties, TKS type — 2.1 - Tightening the cable ties with a tool - set the max tension of the tool depending on the size of the tie

Cable ties, TKS type — 2.2 - Grip the cable tie with the tool

Cable ties, TKS type — 2.3 - Tighten the tie till the complete fixing of the cables

Cable ties, TKS type — 2.4 - Cut the exceeding part of the cable tie, properly adjusting the setting of the tool

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Tasmy_kablowe_TKS_EN.pdf	EN	30-05-2025	220.54 KB	PDF	Download
Catalog card	ERGOM_Tasmy_kablowe_TKS_PL.pdf	PL	30-05-2025	232.16 KB	PDF	Download
