Cable ties, TK type

Cable ties, TK type

Main data of the product series

Product name
Cable ties, TK type
Category
TK type
Material
polyamide 6.6
Operating temperature [°C]
-40 ÷ +85
Colour
natural (bright)
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TK 6/3 E01TK-01010100201 5 100 pkt. Price on request
TK 9/3 E01TK-01010100301 5 100 pkt. Price on request
TK 12/3 E01TK-01010100401 5 100 pkt. Price on request
TK 16/3 E01TK-01010100501 5 100 pkt. Price on request
TK 20/3 E01TK-01010100601 5 100 pkt. Price on request
TK 14/3,6 E01TK-01010100701 5 100 pkt. Price on request
TK 20/3,6 E01TK-01010100801 5 100 pkt. Price on request
TK 25/3,6 E01TK-01010100901 5 100 pkt. Price on request
TK 30/3,6 E01TK-01010101001 5 100 pkt. Price on request
TK 40/3,6 E01TK-01010101101 5 100 pkt. Price on request
TK 12/5 E01TK-01010101201 5 100 pkt. Price on request
TK 16/5 E01TK-01010101301 5 100 pkt. Price on request
TK 18/5 E01TK-01010101401 5 100 pkt. Price on request
TK 20/5 E01TK-01010101501 5 100 pkt. Price on request
TK 25/5 E01TK-01010101601 5 100 pkt. Price on request
TK 30/5 E01TK-01010101701 5 100 pkt. Price on request
TK 40/5 E01TK-01010101801 5 100 pkt. Price on request
TK 43/5 E01TK-01010101901 5 100 pkt. Price on request
TK 20/8 E01TK-01010102001 1 100 pkt. Price on request
TK 30/8 E01TK-01010102101 1 100 pkt. Price on request
TK 40/8 E01TK-01010102201 1 100 pkt. Price on request
TK 45/8 E01TK-01010102301 1 100 pkt. Price on request
TK 50/8 E01TK-01010102401 1 100 pkt. Price on request
TK 70/8 E01TK-01010102501 1 100 pkt. Price on request
TK 60/9 E01TK-01010102601 1 100 pkt. Price on request
TK 70/9 E01TK-01010102701 1 100 pkt. Price on request
TK 80/9 E01TK-01010102801 1 100 pkt. Price on request
TK 110/9 E01TK-01010102901 1 100 pkt. Price on request
TK 20/13 E01TK-01010103001 1 50 pkt. Price on request
TK 50/13 E01TK-01010103101 1 50 pkt. Price on request
TK 70/13 E01TK-01010103201 1 50 pkt. Price on request
TK 100/13 E01TK-01010103311 1 50 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Colour natural (bright)
Operating temperature [°C] -40 ÷ +85
Minimum installation temperature [°C] 0
Klasa palności UL 94 V2
Normy EN IEC 62275:2019 EN 45545-2 +A1 For the GiG certificate: PN-EN IEC 60079-0:2018-09 PN-EN 1127-2:2014-08 IEC/TS 60079-32-1:2013-08
Name Tensile strength, min. [daN] Max. bundle dia. [mm] Tool type L W
TK 6/3 8 14,0 MK III A, MK III PR 80 2,5
TK 9/3 8 20,5 MK III A, MK III PR 100 2,5
TK 12/3 8 27,0 MK III A, MK III PR 120 2,5
TK 16/3 8 39,8 MK III A, MK III PR 160 2,5
TK 20/3 8 52,5 MK III A, MK III PR 200 2,5
TK 14/3,6 18 33,0 MK III A, MK III B, MK III C, MK III PR 140 3,6
TK 20/3,6 18 46,0 MK III A, MK III B, MK III C, MK III PR 200 3,6
TK 25/3,6 18 68,0 MK III A, MK III B, MK III C, MK III PR 250 3,6
TK 30/3,6 18 84,0 MK III A, MK III B, MK III C, MK III PR 300 3,6
TK 40/3,6 18 106,0 MK III A, MK III B, MK III C, MK III PR 370 3,6
TK 12/5 22 23,8 MK III A, MK III B, MK III C, MK III PR 120 4,8
TK 16/5 22 36,6 MK III A, MK III B, MK III C, MK III PR 160 4,8
TK 18/5 22 43,0 MK III A, MK III B, MK III C, MK III PR 180 4,8
TK 20/5 22 49,5 MK III A, MK III B, MK III C, MK III PR 200 4,8
TK 25/5 22 65,0 MK III A, MK III B, MK III C, MK III PR 250 4,8
TK 30/5 22 81,0 MK III A, MK III B, MK III C, MK III PR 300 4,8
TK 40/5 22 103,5 MK III A, MK III B, MK III C, MK III PR 370 4,8
TK 43/5 22 122,5 MK III A, MK III B, MK III C, MK III PR 430 4,8
TK 20/8 54 50,9 MK III B, MK III C 200 7,6
TK 30/8 54 82,8 MK III B, MK III C 300 7,6
TK 40/8 54 103,5 MK III B, MK III C 365 7,6
TK 45/8 54 130,5 MK III B, MK III C 450 7,6
TK 50/8 54 162,5 MK III B, MK III C 550 7,6
TK 70/8 54 226,0 MK III B, MK III C 750 7,6
TK 60/9 77 181,5 MK III B, MK III C 610 8,8
TK 70/9 77 195,0 MK III B, MK III C 710 8,8
TK 80/9 77 229,5 MK III B, MK III C 760 8,8
TK 110/9 77 340,0 MK III B, MK III C 1168 8,8
TK 20/13 110 57,0 MK III C 230 12,4
TK 50/13 110 140,0 MK III C 480 12,4
TK 70/13 110 216,0 MK III C 730 12,4
TK 100/13 110 315,0 MK III C 1000 12,4

Guide

Cable ties, TK type

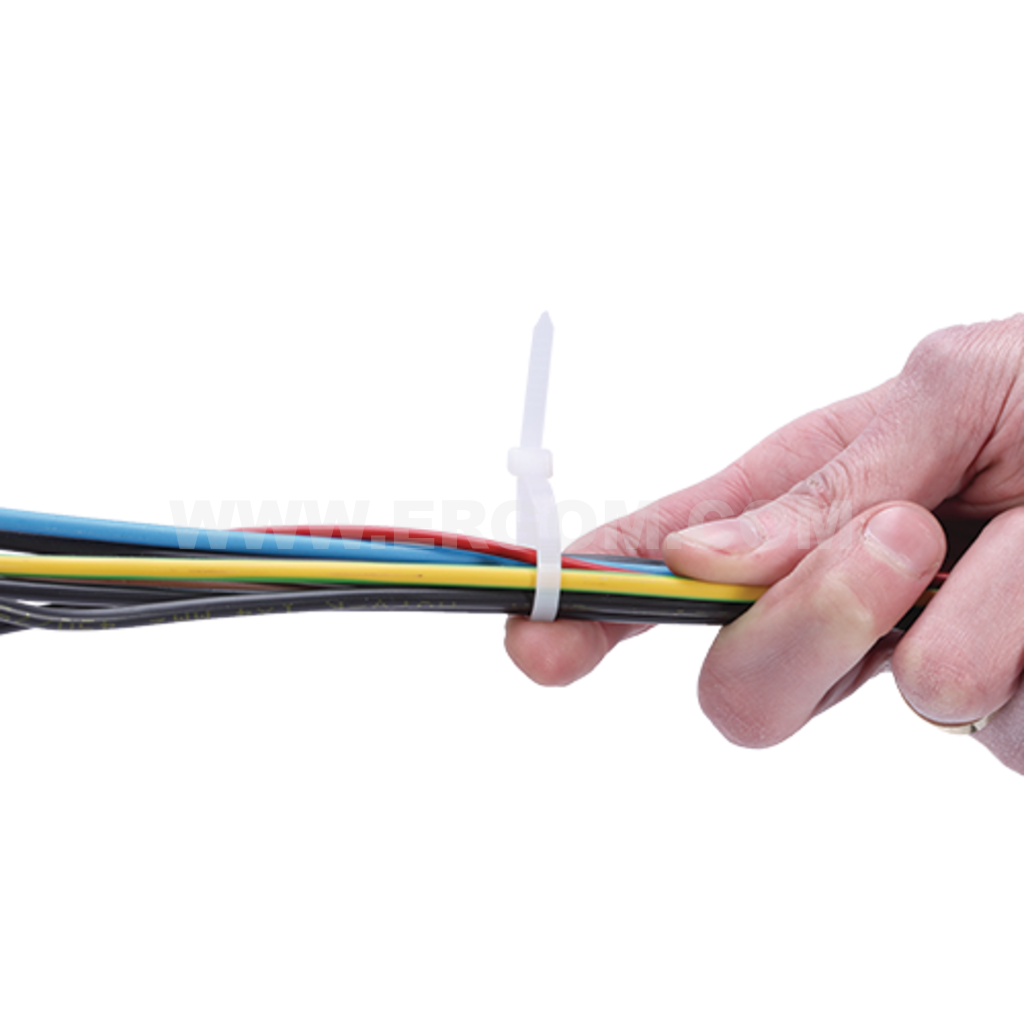

1.1 - Insert the tip of the tie - insert the end of the cable tie into its lock
Cable ties, TK type

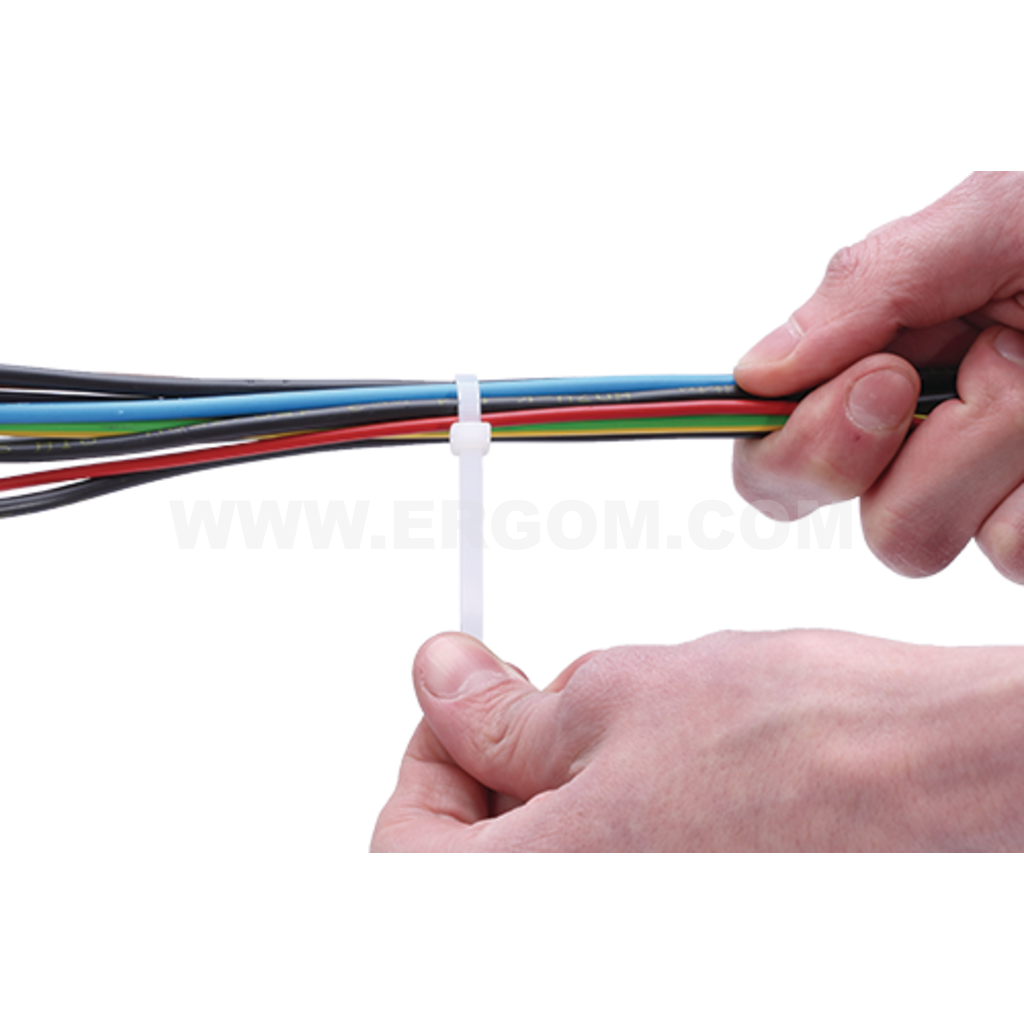

1.2 - Tighten manually the tie till the complete fixing of the cables
Cable ties, TK type

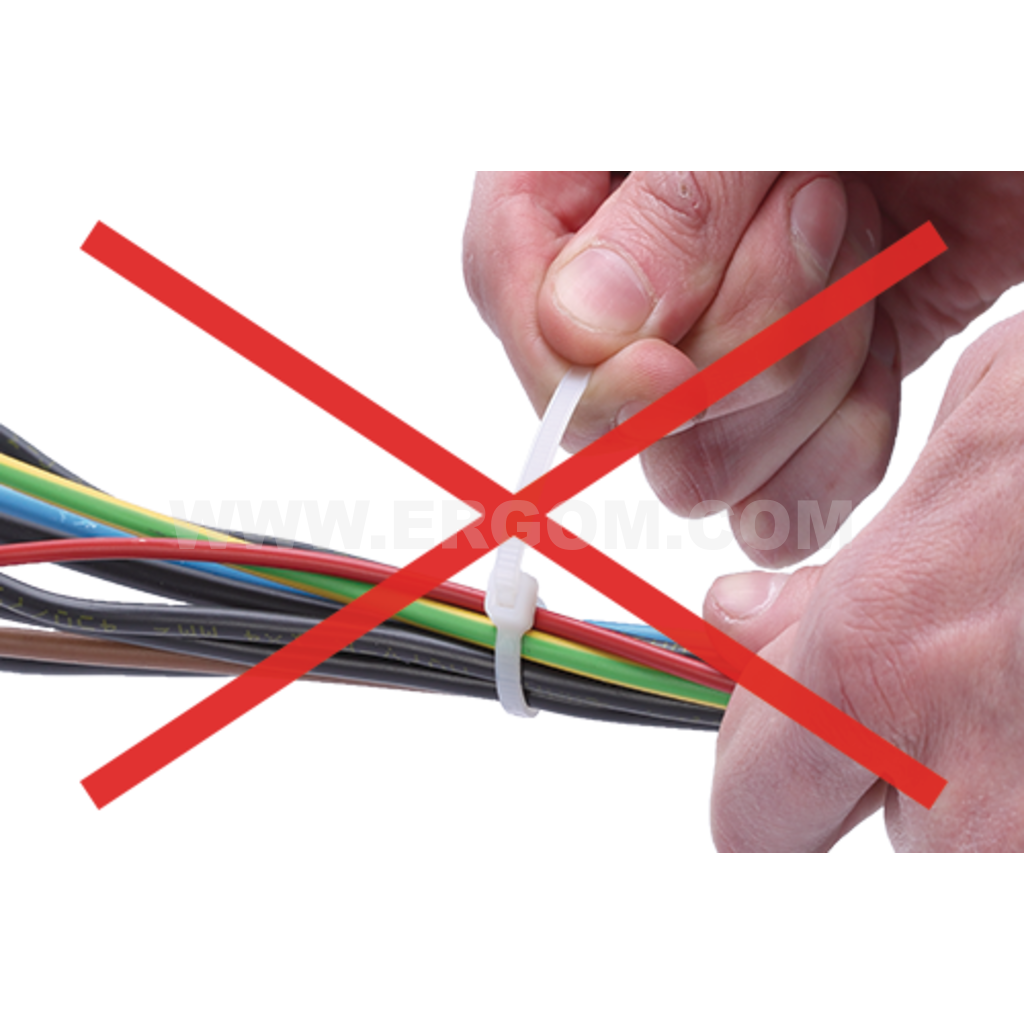

1.3 - Avoid sharp bending of the tie it will not improve the fixing strength
Cable ties, TK type

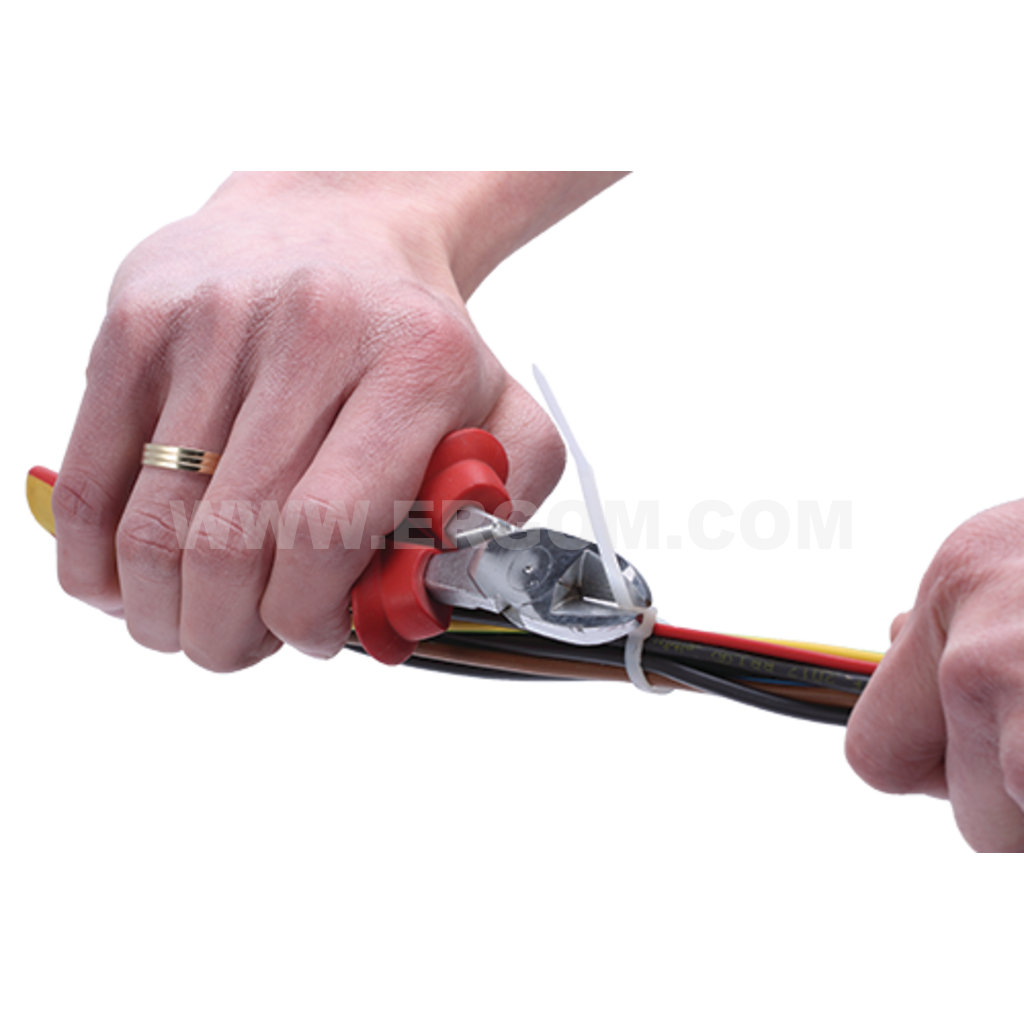

1.4 - Cut the exceeding part of the tie with the tool, leaving a few mm length as safety
Cable ties, TK type

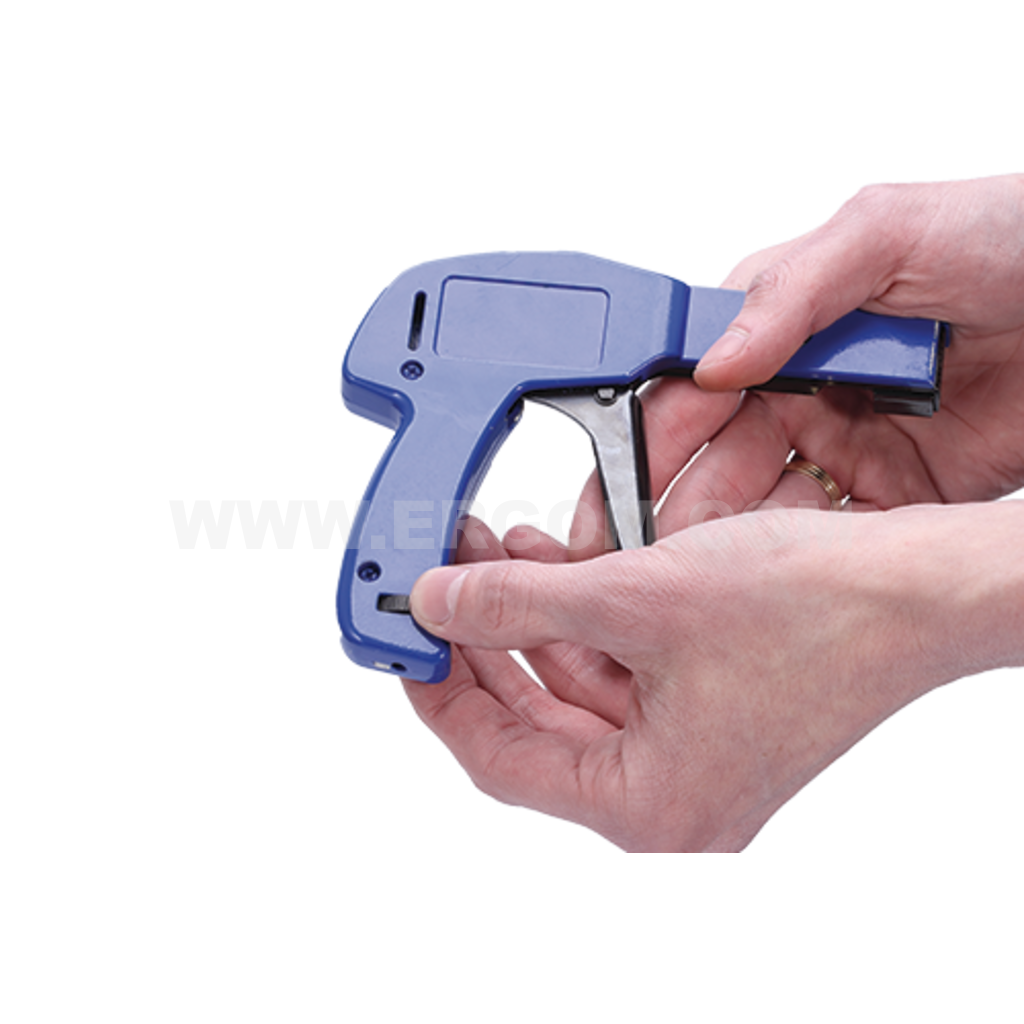

2.1 - Tightening the cable ties with a tool - set the max tension of the tool depending on the size of the tie
Cable ties, TK type

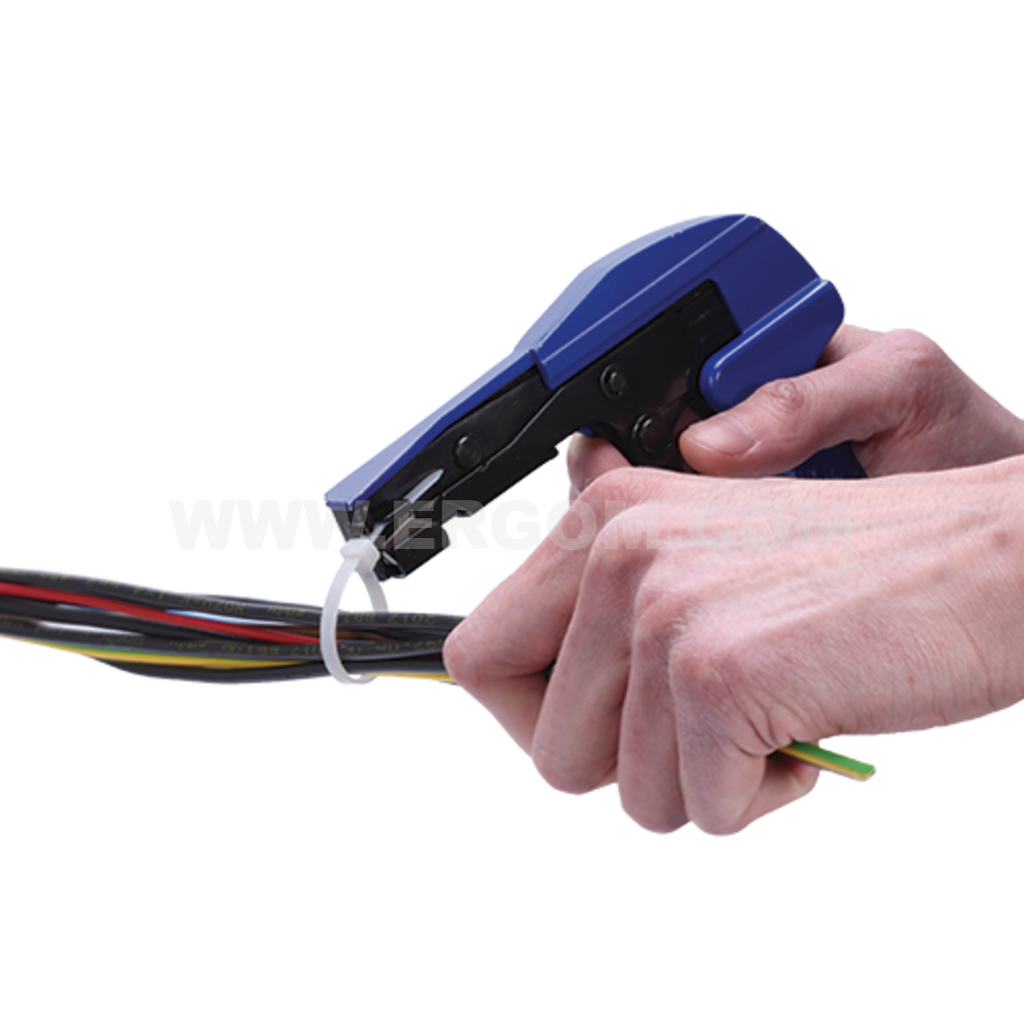

2.2 - Grip the cable tie with the tool
Cable ties, TK type

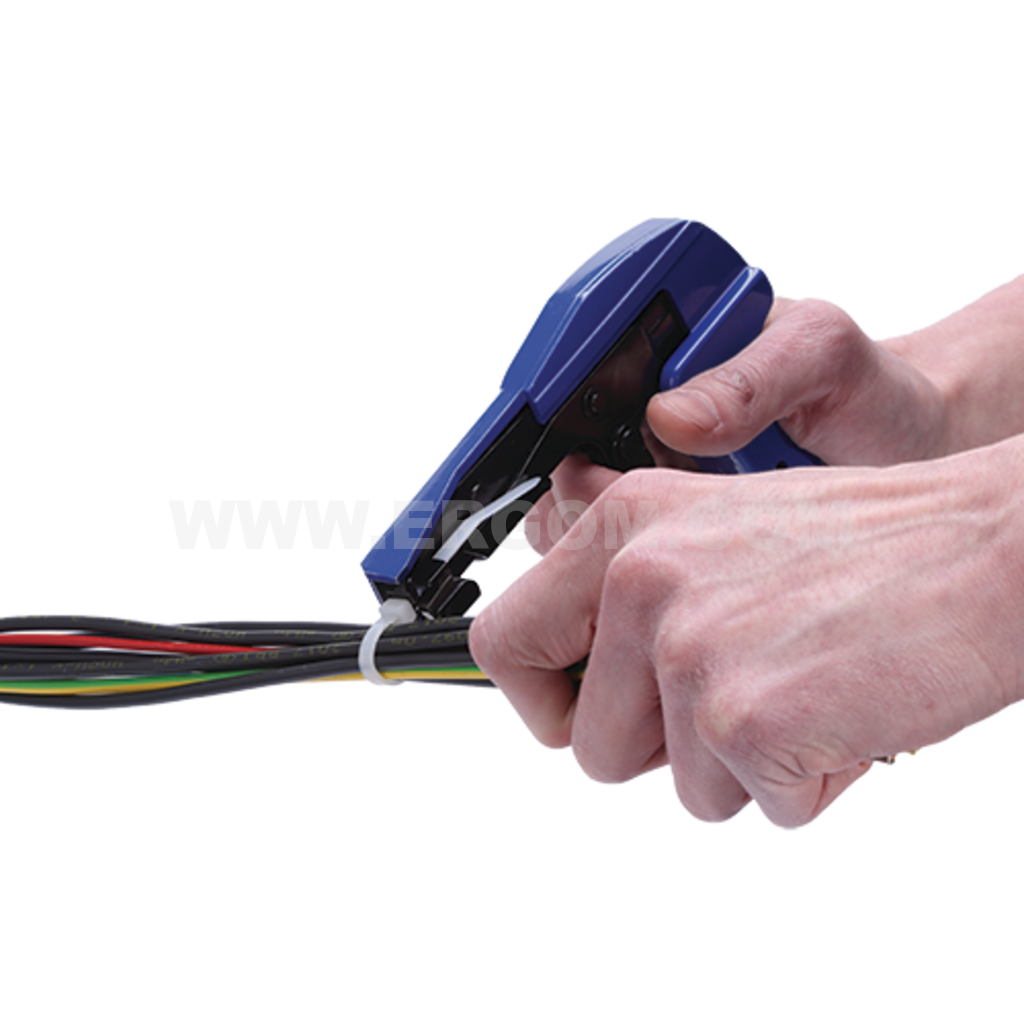

2.3 - Tighten the tie till the complete fixing of the cables
Cable ties, TK type

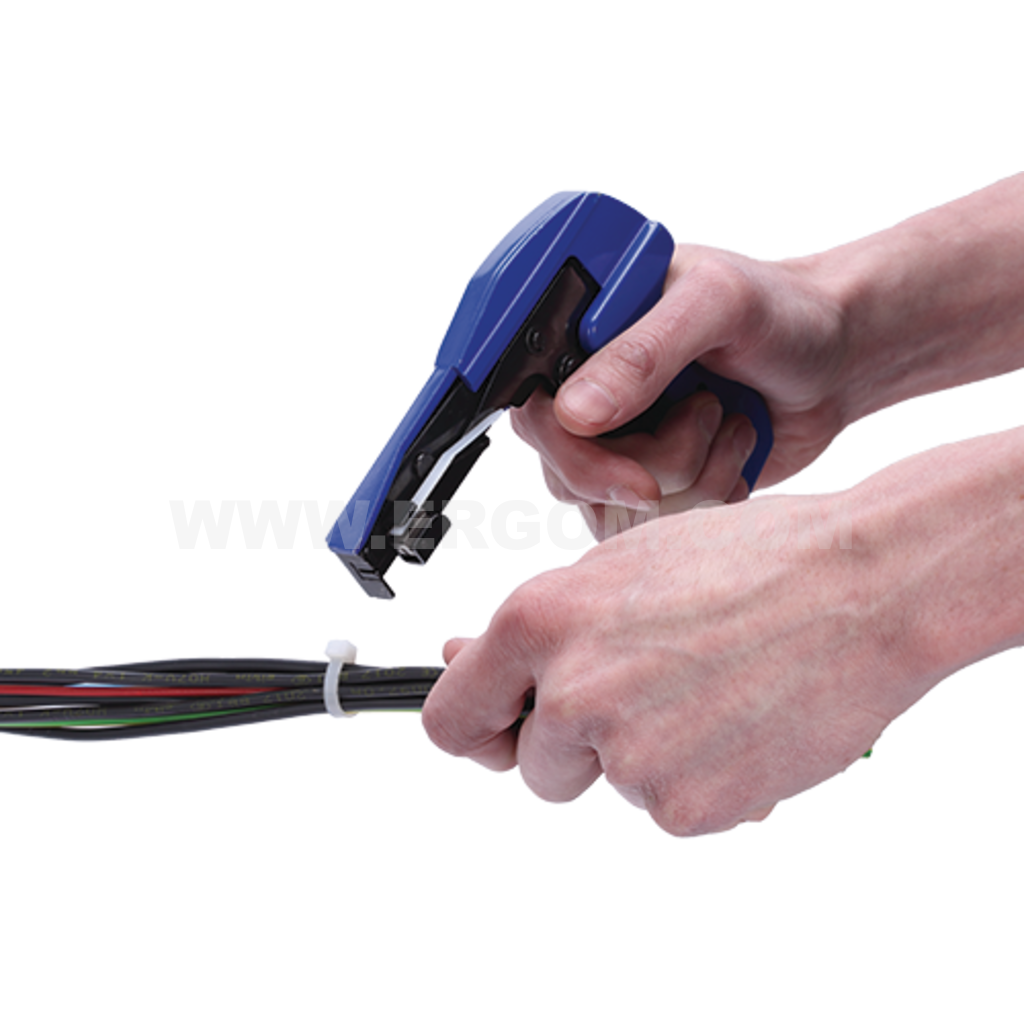

2.4 - Cut the exceeding part of the cable tie, properly adjusting the setting of the tool

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Tasmy_kablowe_TK_EN.pdf EN 30-05-2025 343.04 KB PDF Download
Catalog card ERGOM_Tasmy_kablowe_TK_PL.pdf PL 30-05-2025 358.39 KB PDF Download
