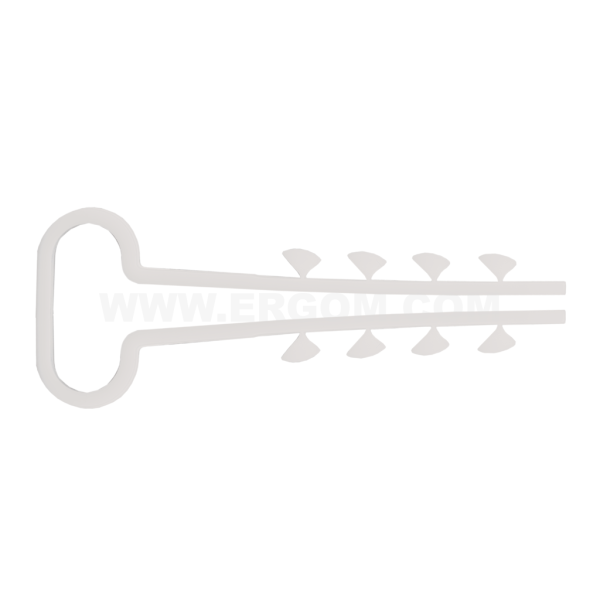

Cable holders, UZPP type

Cable holders, UZPP type

Main data of the product series

Product name
Cable holders, UZPP type
Category
Not mating with cable ties
Operating temperature [°C]
-30 ÷ +70
Material
copolymer PE + PP
Note!
Mounting hole diameter, depending on the substrate type, must be adjusted to the fixture.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
UZPP 1 E01UI-01050300101 5 100 pkt. Price on request
UZPP 2 E01UI-01050400101 5 100 pkt. Price on request
UZPP 3 E01UI-01050500101 5 100 pkt. Price on request
UZPP 4 E01UI-01050600101 5 50 pkt. Price on request

Selected lines: 0

Technical data

General data

Material copolymer PE + PP
Operating temperature [°C] -30 ÷ +70
Colour white
Mounting hole d [mm] 7
Name Flat wire, Type Flat cable [mm] Mounting hole L [mm]
UZPP 1 YDYP 500V: 2x1; 2x1,5 OMYP 500V: 2x0,5; 2x0,75; 2x1; 2x1,5 SMYP 500V: 2x0,5; 2x0,75; 2x1; 2x1,5 3,5 x 8 35
UZPP 2 YDYP 500V: 2x2,5; 3x1; 3x1,5; 3x2,5 YDYP 750V: 2x1; 2x1,5; 2x2,5; 3x1; 2x1,5 4,5 x 11 35
UZPP 3 YDYP 750V: 2x4; 3x2,5; 4x1,5 5,5 x 14 35
UZPP 4 YDYP 750V: 3x4; 4x2,5 6 x 18 32

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Uchwyty_przewodow_typu_UZPP_EN.pdf EN 14-05-2025 210.22 KB PDF Download
Catalog card ERGOM_Uchwyty_przewodow_typu_UZPP_PL.pdf PL 14-05-2025 225.76 KB PDF Download
