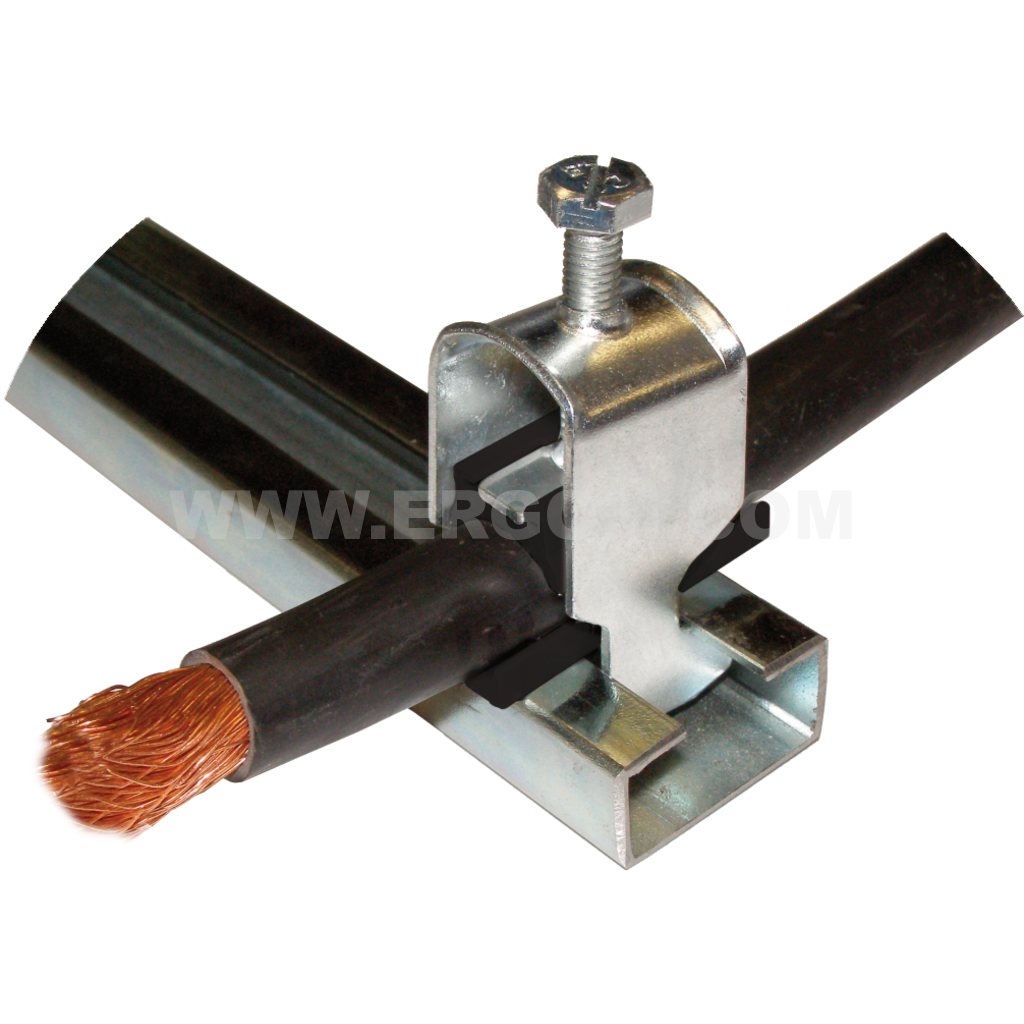

Cable holders, UPC type

Cable holders, UPC type

Main data of the product series

Product name
Cable holders, UPC type
Category
Insulators and cable holders for rails and cables
Material
Clamp's body is made from galvanized steel, inserts which hold the cable are made from plastic

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
UPC6-14 R32RZ-08010300103 10 10 pcs. Price on request
UPC12-18 R32RZ-08010300203 10 10 pcs. Price on request
UPC18-22 R32RZ-08010300303 10 10 pcs. Price on request
UPC22-32 R32RZ-08010300403 10 10 pcs. Price on request
UPC32-38 R32RZ-08010300503 10 10 pcs. Price on request
UPC38-42 R32RZ-08010300603 10 10 pcs. Price on request
UPC42-50 R32RZ-08010300703 10 10 pcs. Price on request
UPC50-64 R32RZ-08010300803 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Clamp's body is made from galvanized steel, inserts which hold the cable are made from plastic
Operating temp. [°C] -25 ÷ +85
S 22
Name Cable external diameter [mm] G H
UPC6-14 6÷14 21 40
UPC12-18 12÷18 23 43
UPC18-22 18÷22 30 47
UPC22-32 22÷32 39 62
UPC32-38 32÷38 42 69
UPC38-42 38÷42 50 74
UPC42-50 42÷50 57 90
UPC50-64 50÷64 76 144

Guide

Cable holders, UPC type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Uchwyty_przewodow_typ_UPC_EN.pdf EN 15-05-2025 262.96 KB PDF Download
Catalog card ERGOM_Uchwyty_przewodow_typ_UPC_PL.pdf PL 15-05-2025 283.6 KB PDF Download
