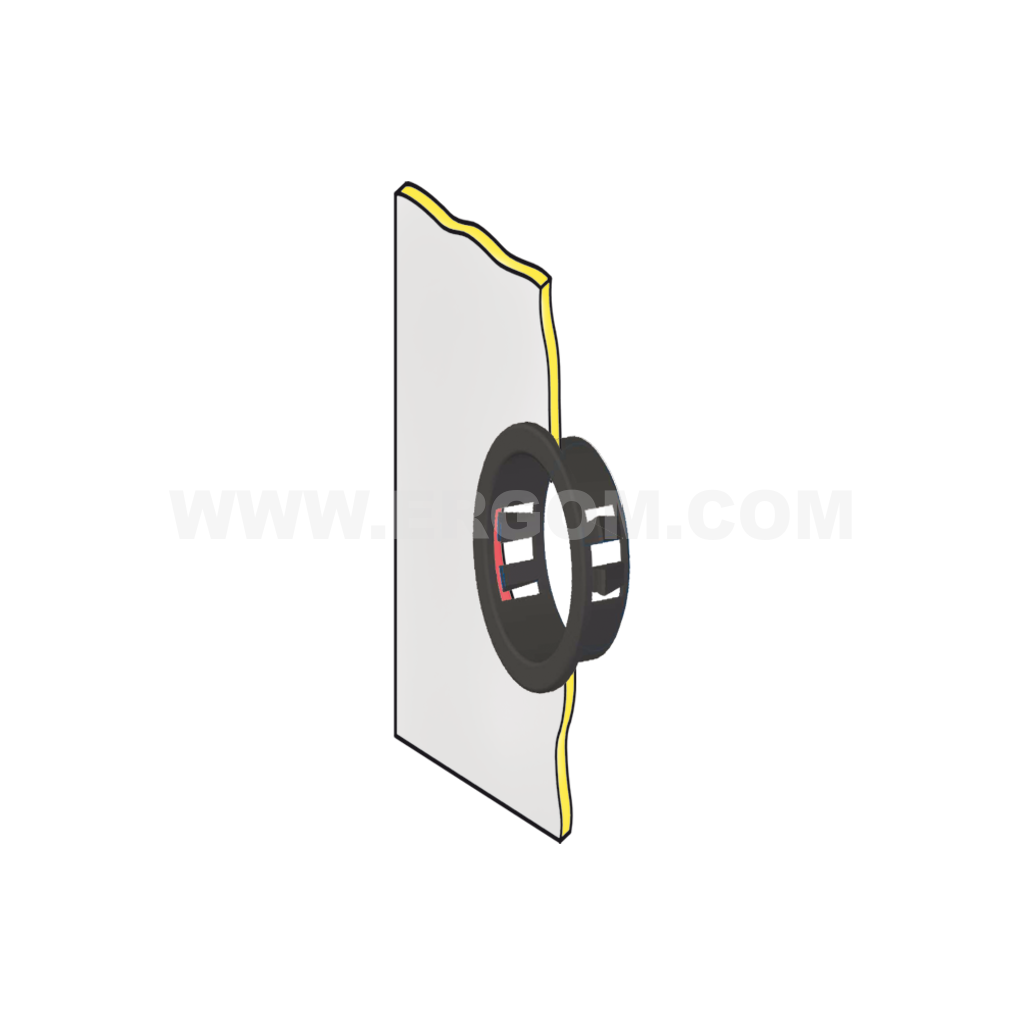

Cable grommet, HV type

Cable grommet, HV type

Main data of the product series

Product name
Cable grommet, HV type
Category
Cable grommets
Operating temperature [°C]
-40 ÷ +85
Material
polyamide 6.6
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
HV 6 WT E01PK-01010100100 1 100 pkt. Price on request
HV 8 WT E01PK-01010100200 1 100 pkt. Price on request
HV 12 WT E01PK-01010100300 1 100 pkt. Price on request
HV 16 WT E01PK-01010100400 1 100 pkt. Price on request
HV 3 BK E01PK-01010100501 1 100 pkt. Price on request
HV 5 BK E01PK-01010100601 1 100 pkt. Price on request
HV 6 BK E01PK-01010100700 1 100 pkt. Price on request
HV 8 BK E01PK-01010100800 1 100 pkt. Price on request
HV 9 BK E01PK-01010100901 1 100 pkt. Price on request
HV 12 BK E01PK-01010101000 1 100 pkt. Price on request
HV 15 BK E01PK-01010101101 1 100 pkt. Price on request
HV 16 BK E01PK-01010101200 1 100 pkt. Price on request
HV 19 BK E01PK-01010101301 1 100 pkt. Price on request
HV 21 BK E01PK-01010101401 1 100 pkt. Price on request
HV 24 BK E01PK-01010101501 1 100 pkt. Price on request
HV 29 BK E01PK-01010101601 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Operating temperature [°C] -40 ÷ +85
Klasa palności UL 94 V2
Name Colour A B C L
HV 6 WT white 9,5 6,3 12,0 10,3
HV 8 WT white 11,1 8,0 15,0 10,3
HV 12 WT white 16,1 12,2 18,6 10,3
HV 16 WT white 19,6 16,0 24,0 11,5
HV 3 BK black 6,4 3,2 8,0 8,0
HV 5 BK black 7,6 4,8 12,0 8,0
HV 6 BK black 9,5 6,3 12,0 10,3
HV 8 BK black 11,1 8,0 15,0 10,3
HV 9 BK black 12,7 8,2 14,5 10,3
HV 12 BK black 16,1 12,2 18,6 10,3
HV 15 BK black 19,1 14,3 21,5 10,3
HV 16 BK black 19,6 16,0 24,0 11,5
HV 19 BK black 22,0 17,3 23,8 11,5
HV 21 BK black 25,1 19,1 28,0 11,5
HV 24 BK black 29,7 24,1 32,5 11,5
HV 29 BK black 38,1 29,0 41,2 11,5

Guide

Cable grommet, HV type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Przepust_kablowy_typu_HV_EN.pdf EN 14-05-2025 183 KB PDF Download
Catalog card ERGOM_Przepust_kablowy_typu_HV_PL.pdf PL 14-05-2025 229.89 KB PDF Download
