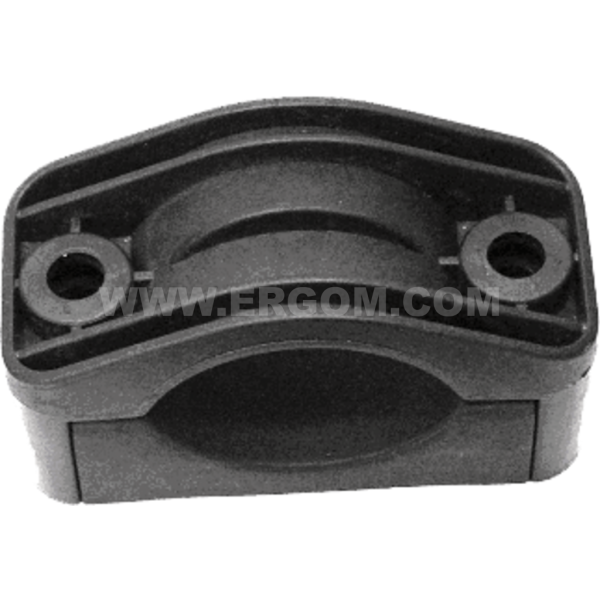

Cable fixing clamps, UKR type

Cable fixing clamps, UKR type

Main data of the product series

Product name
Cable fixing clamps, UKR type
Category
Insulators and cable holders for rails and cables
Colour
black
Material
polypropylene

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
UKR 0 R32RZ-08010100051 10 10 pcs. Price on request
UKR 1 R32RZ-08010100101 10 10 pcs. Price on request
UKR 2 R32RZ-08010200101 10 10 pcs. Price on request
UKR 3 R32RZ-08010200151 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polypropylene
Operating temp. [°C] -60 ÷ +120
Colour black
Normy EN 61914:2009
Name Cable external diameter [mm] A B C D h H K k
UKR 0 16÷27 68 45 39 9 30 40 15 7
UKR 1 27÷40 98 69 59 11,7 48 62 25 12
UKR 2 48÷75 127 94 59 12,7 67 94 31 8
UKR 3 65÷90 157 120 69,5 12,7 91 116 45 18

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Uchwyty_kablowe_typ_UKR_EN.pdf EN 15-05-2025 236.92 KB PDF Download
Catalog card ERGOM_Uchwyty_kablowe_typ_UKR_PL.pdf PL 15-05-2025 265.2 KB PDF Download
