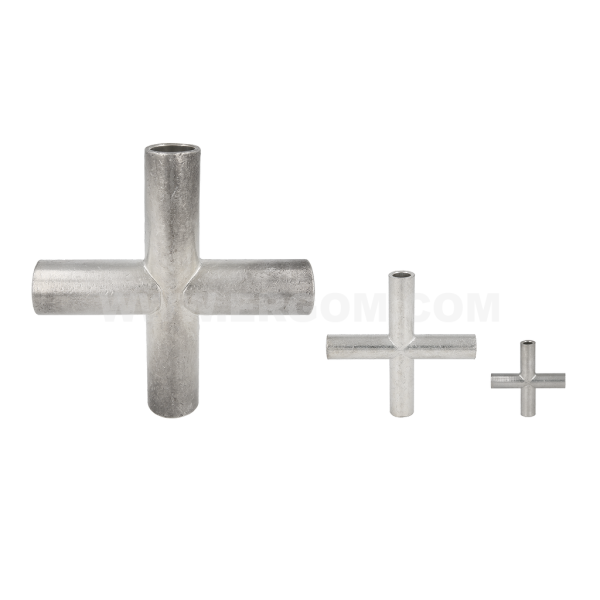

Cable connectors KX type

Cable connectors KX type

Main data of the product series

Product name
Cable connectors KX type
Category
Connectors
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors must be rounded with special dies. For crimping connectors on cables of 5 class conductors, we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KX 10 E11KM-01080200202 10 1 pcs. Price on request
KX 16 E11KM-01080200302 10 1 pcs. Price on request
KX 25 E11KM-01080200402 10 1 pcs. Price on request
KX 35 E11KM-01080200502 10 1 pcs. Price on request
KX 50 E11KM-01080200602 10 1 pcs. Price on request
KX 70 E11KM-01080200702 10 1 pcs. Price on request
KX 95 E11KM-01080200802 10 1 pcs. Price on request
KX 120 E11KM-01080200902 10 1 pcs. Price on request
KX 150 E11KM-01080201002 10 1 pcs. Price on request
KX 185 E11KM-01080201102 10 1 pcs. Price on request
KX 240 E11KM-01080201202 10 1 pcs. Price on request
KX 300 E11KM-01080201312 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie standard
Name d D L H Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
KX 10 4,5 7,0 35 14 10 7 FL10 1 1
KX 16 5,5 8,5 50 21 16 8 FL16 1 1
KX 25 7,0 10,0 55 23 25 10 FL25 1 2
KX 35 8,5 12,0 70 30 35 12 FL35 1 2
KX 50 10,0 14,0 80 34 50 14 FL50 1 3
KX 70 12,0 16,5 85 35 70 16 FL70 1 3
KX 95 13,5 18,0 90 36 95 17 FL95 2 4
KX 120 15,0 19,5 95 38 120 19 FL120 2 4
KX 150 16,5 21,0 110 44 150 20 FL150 2 4
KX 185 19,0 24,0 115 45 185 23 FL185 2 4
KX 240 21,0 26,0 130 52 240 25 FL240 2 4
KX 300 24,0 30,0 170 70 300 28 FL300 2 6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_typu_KX_EN.pdf EN 04-07-2025 307.44 KB PDF Download
Catalog card ERGOM_Laczniki_typu_KX_PL.pdf PL 04-07-2025 348.79 KB PDF Download
