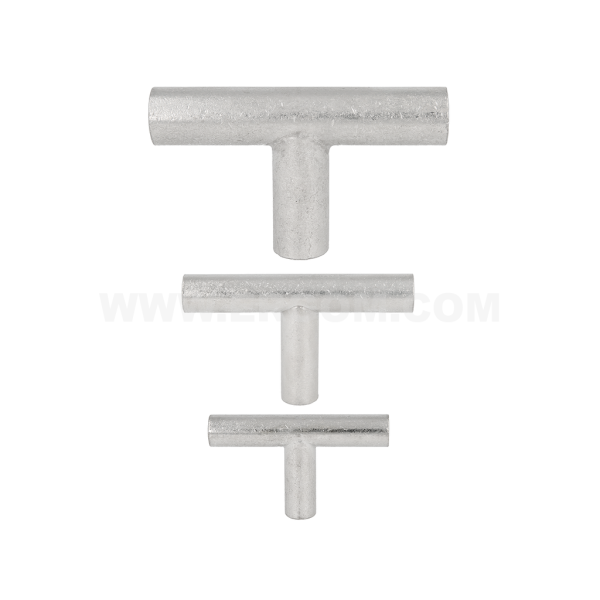

Cable connectors, KT type

Cable connectors, KT type

Main data of the product series

Product name
Cable connectors, KT type
Category
Connectors
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors must be rounded with special dies. For crimping connectors on cables of 5 class conductors, we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KT 10 E11KM-01080100202 10 1 pcs. Price on request
KT 16 E11KM-01080100302 10 1 pcs. Price on request
KT 25 E11KM-01080100402 10 1 pcs. Price on request
KT 35 E11KM-01080100502 10 1 pcs. Price on request
KT 50 E11KM-01080100602 10 1 pcs. Price on request
KT 70 E11KM-01080100702 10 1 pcs. Price on request
KT 95 E11KM-01080100802 10 1 pcs. Price on request
KT 120 E11KM-01080100902 10 1 pcs. Price on request
KT 150 E11KM-01080101002 10 1 pcs. Price on request
KT 185 E11KM-01080101102 10 1 pcs. Price on request
KT 240 E11KM-01080101202 10 1 pcs. Price on request
KT 300 E11KM-01080101312 10 1 pcs. Price on request
KT 400 E11KM-01080101412 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie standard
Name d D L H Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
KT 10 4,5 7,0 35 14 10 7 FL10 1 1
KT 16 5,5 8,5 50 21 16 8 FL16 1 1
KT 25 7,0 10,0 55 23 25 10 FL25 1 2
KT 35 8,5 12,0 70 30 35 12 FL35 1 2
KT 50 10,0 14,0 80 34 50 14 FL50 1 3
KT 70 12,0 16,5 85 35 70 16 FL70 1 3
KT 95 13,5 18,0 90 36 95 17 FL95 2 4
KT 120 15,0 19,5 95 38 120 19 FL120 2 4
KT 150 16,5 21,0 110 44 150 20 FL150 2 4
KT 185 19,0 24,0 115 45 185 23 FL185 2 4
KT 240 21,0 26,0 130 52 240 25 FL240 2 4
KT 300 24,0 30,0 155 62 300 28 FL300 2 6
KT 400 27,5 33,5 180 72 400 32 - 2 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_typu_KT_EN.pdf EN 04-07-2025 307.39 KB PDF Download
Catalog card ERGOM_Laczniki_typu_KT_PL.pdf PL 04-07-2025 348.66 KB PDF Download
