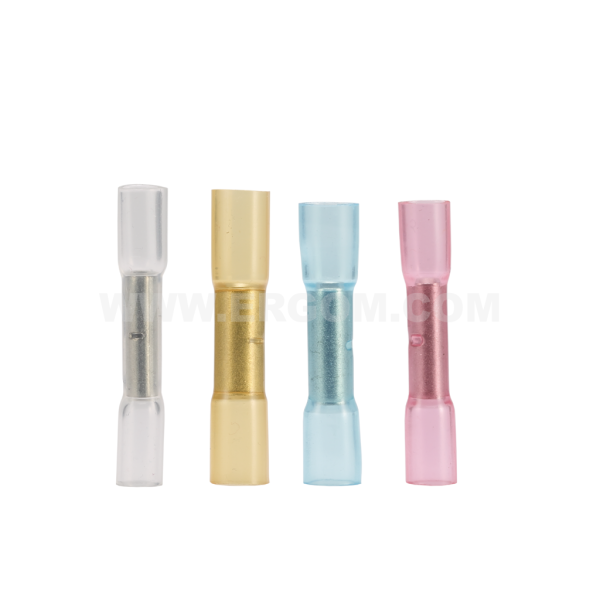

"Butt splice" connectors in heat-shrink insulation, KLIT type

"Butt splice" connectors in heat-shrink insulation, KLIT type

Main data of the product series

Product name
"Butt splice" connectors in heat-shrink insulation, KLIT type
Category
Heat-shrink insulation
Surface
tin-plated
Material
Cu
Insulation
heat-shrink sleeve
Operating temperature [°C]
-55 ÷ +125

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KLIT 0,5 E09KO-02070100051 1 100 pkt. Price on request
KLIT 1 E09KO-02070100101 1 100 pkt. Price on request
KLIT 2,5 E09KO-02070100201 1 100 pkt. Price on request
KLIT 6 E09KO-02070100301 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation heat-shrink sleeve
Material Cu
Surface tin-plated
Operating temperature [°C] -55 ÷ +125
Shrink temperature [°C] > 120
s2 0,6
Name Insulation colour L1 L2 d1 d2 s1 Cross-section [mm²]
KLIT 0,5 transparent 28 12 1,2 3,2 0,4 0,2÷0,5
KLIT 1 red 35 15 1,8 4,8 0,8 0,75÷1,0
KLIT 2,5 blue 35 15 2,3 6,0 0,8 1,5÷2,5
KLIT 6 yellow 41 15 3,5 7,2 0,9 4÷6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_w_izolacji_termokurczliwej_typu_KLIT_do_laczenia_na_styk_EN.pdf EN 04-07-2025 216.92 KB PDF Download
Catalog card ERGOM_Lacznik_w_izolacji_termokurczliwej_typu_KLIT_do_laczenia_na_styk_PL.pdf PL 04-07-2025 234.83 KB PDF Download
