Home Products Products Cable terminals Cu tubular acc. to DIN Connectors "Butt splice" compression cable connectors, ZMD type

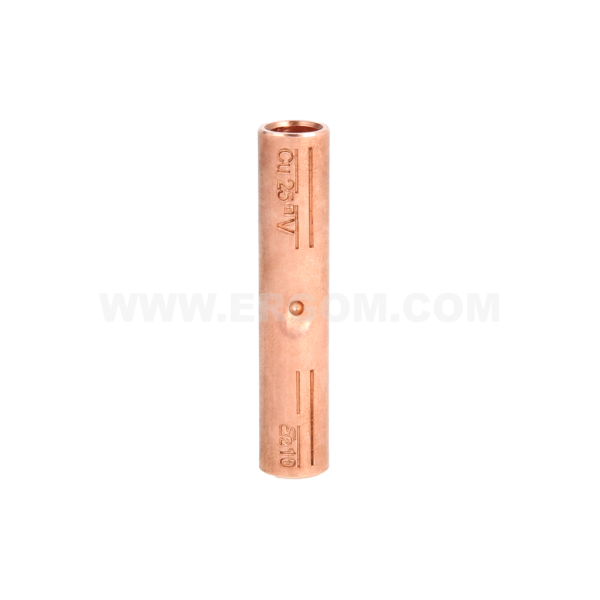

"Butt splice" compression cable connectors, ZMD type

"Butt splice" compression cable connectors, ZMD type

Main data of the product series

Product name: "Butt splice" compression cable connectors, ZMD type
Category: Connectors
Surface: uncoated
Material: Cu
Note!: Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
ZMD 10	E11KM-02060200100	50	50	pcs.	Price on request
ZMD 16	E11KM-02060200200	50	50	pcs.	Price on request
ZMD 25	E11KM-02060200300	50	50	pcs.	Price on request
ZMD 35	E11KM-02060200400	50	50	pcs.	Price on request
ZMD 50	E11KM-02060200500	10	10	pcs.	Price on request
ZMD 70	E11KM-02060200600	10	10	pcs.	Price on request
ZMD 95	E11KM-02060200700	10	10	pcs.	Price on request
ZMD 120	E11KM-02060200800	10	10	pcs.	Price on request
ZMD 150	E11KM-02060200900	10	10	pcs.	Price on request
ZMD 185	E11KM-02060201000	10	10	pcs.	Price on request
ZMD 240	E11KM-02060201100	10	10	pcs.	Price on request
ZMD 300	E11KM-02060201200	5	1	pcs.	Price on request
ZMD 400	E11KM-02060201300	5	1	pcs.	Price on request
ZMD 500	E11KM-02060201400	5	1	pcs.	Price on request
ZMD 625	E11KM-02060201500	5	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	Cu
Surface	uncoated
Wykonanie	DIN 46267 part 1

Name	d	D	L	Cross-section, rm/sm [mm²]	Socket code no.	Number of crimping - wide	Number of crimping - narrow
ZMD 10	4,5	6,0	30	10	6	1 - 1	2 - 2
ZMD 16	5,5	8,5	50	16	8	1 - 1	2 - 2
ZMD 25	7,0	10,0	50	25	10	1 - 1	2 - 2
ZMD 35	8,2	12,5	50	35	12	1 - 1	2 - 2
ZMD 50	10,0	14,5	56	50	14	1 - 1	3 - 3
ZMD 70	11,5	16,5	56	70	16	1 - 1	3 - 3
ZMD 95	13,5	19,0	70	95	18	2 - 2	4 - 4
ZMD 120	15,5	21,0	70	120	20	2 - 2	4 - 4
ZMD 150	17,0	23,5	80	150	22	2 - 2	4 - 4
ZMD 185	19,0	25,5	85	185	25	2 - 2	5 - 5
ZMD 240	21,5	29,0	90	240	28	2 - 2	5 - 5
ZMD 300	24,5	32,0	100	300	32	2 - 2	6 - 6
ZMD 400	27,5	38,5	150	400	38	3 - 3	-
ZMD 500	31,0	42,0	160	500	42	3 - 3	-
ZMD 625	34,5	44,0	160	625	44	3 - 3	-

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Laczniki_typu_ZMD_EN.pdf	EN	04-07-2025	270.51 KB	PDF	Download
Catalog card	ERGOM_Laczniki_typu_ZMD_PL.pdf	PL	04-07-2025	311.65 KB	PDF	Download
