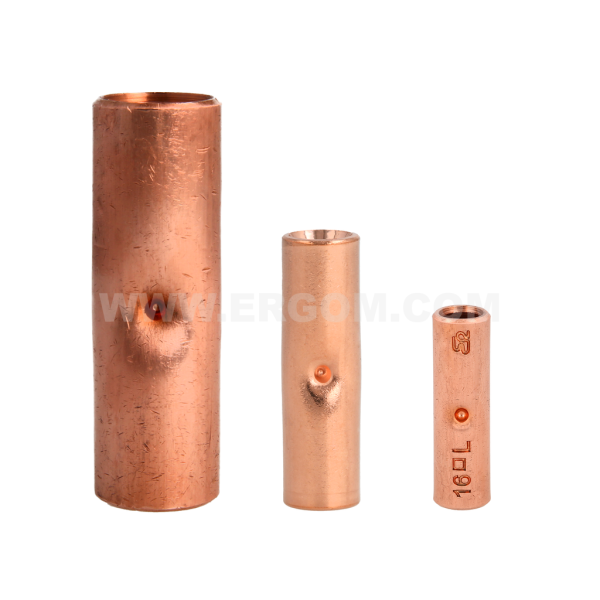

"Butt splice" compression cable connectors, ZM type

"Butt splice" compression cable connectors, ZM type

Main data of the product series

Product name
"Butt splice" compression cable connectors, ZM type
Category
Connectors
Surface
uncoated
Material
Cu
Note!
Sector-shaped conductors must be rounded with special dies. For crimping cable lugs on cables of 5 class conductors (from cross-section of 10 mm²), we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZM 0,75-12 E11KM-01060299000 1 100 pkt. Price on request
ZM 1,5-15 E11KM-01060299100 1 100 pkt. Price on request
ZM 1,5-20 E11KM-01060299200 1 100 pkt. Price on request
ZM 2,5-15 E11KM-01060299300 1 100 pkt. Price on request
ZM 2,5-20 E11KM-01060299400 1 100 pkt. Price on request
ZM 4-15 E11KM-01060299500 1 100 pkt. Price on request
ZM 4-20 E11KM-01060299600 1 100 pkt. Price on request
ZM 6-20 E11KM-01060299700 1 100 pkt. Price on request
ZM 6-25 E11KM-01060299800 1 100 pkt. Price on request
ZM 10 E11KM-01060300100 100 100 pcs. Price on request
ZM 10 E11KM-01060300102 20 10 pcs. Price on request
ZM 16 E11KM-01060300200 100 100 pcs. Price on request
ZM 16 E11KM-01060300202 20 10 pcs. Price on request
ZM 25 E11KM-01060300300 100 100 pcs. Price on request
ZM 25 E11KM-01060300302 20 10 pcs. Price on request
ZM 35 E11KM-01060300400 100 100 pcs. Price on request
ZM 35 E11KM-01060300402 20 10 pcs. Price on request
ZM 50 E11KM-01060300500 100 100 pcs. Price on request
ZM 50 E11KM-01060300502 20 10 pcs. Price on request
ZM 70 E11KM-01060300600 100 100 pcs. Price on request
ZM 70 E11KM-01060300602 20 10 pcs. Price on request
ZM 95 E11KM-01060300700 50 50 pcs. Price on request
ZM 95 E11KM-01060300702 10 10 pcs. Price on request
ZM 120 E11KM-01060300800 50 50 pcs. Price on request
ZM 120 E11KM-01060300802 10 10 pcs. Price on request
ZM 150 E11KM-01060300900 50 50 pcs. Price on request
ZM 150 E11KM-01060300902 10 10 pcs. Price on request
ZM 185 E11KM-01060301000 50 50 pcs. Price on request
ZM 185 E11KM-01060301002 10 10 pcs. Price on request
ZM 240 E11KM-01060301100 50 50 pcs. Price on request
ZM 240 E11KM-01060301102 10 10 pcs. Price on request
ZM 300 E11KM-01060301200 50 25 pcs. Price on request
ZM 300 E11KM-01060301202 10 10 pcs. Price on request
ZM 400 E11KM-01060301302 10 1 pcs. Price on request
ZM 500 E11KM-01060301402 10 1 pcs. Price on request
ZM 625 E11KM-01060301502 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
Wykonanie standard
Name d D L Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
ZM 0,75-12 1,3 2,8 12 0,5÷0,75 - - - 1 - 1
ZM 1,5-15 1,8 3,3 15 1÷1,5 - - - 1 - 1
ZM 1,5-20 1,8 3,3 20 1÷1,5 - - - 1 - 1
ZM 2,5-15 2,3 4,2 15 2,5 - - - 1 - 1
ZM 2,5-20 2,3 4,2 20 2,5 - - - 1 - 1
ZM 4-15 3 5 15 4 - - - 1 - 1
ZM 4-20 3 5 20 4 - - - 1 - 1
ZM 6-20 4 6 20 6 - - - 1 - 1
ZM 6-25 4 6 25 6 - - - 1 - 1
ZM 10 4,5 7,0 30 10 7 FL10 1 - 1 2 - 2
ZM 16 5,5 8,5 30 16 8 FL16 1 - 1 2 - 2
ZM 25 7,0 10,0 38 25 10 FL25 1 - 1 2 - 2
ZM 35 8,5 12,0 42 35 12 FL35 1 - 1 2 - 2
ZM 50 10,0 14,0 48 50 14 FL50 1 - 1 2 - 2
ZM 70 12,0 16,5 52 70 16 FL70 1 - 1 3 - 3
ZM 95 13,5 18,0 58 95 17 FL95 1 - 1 3 - 3
ZM 120 15,0 19,5 62 120 19 FL120 1 - 1 3 - 3
ZM 150 16,5 21,0 68 150 20 FL150 2 - 2 4 - 4
ZM 185 19,0 24,0 72 185 23 FL185 2 - 2 4 - 4
ZM 240 21,0 26,0 88 240 25 FL240 2 - 2 5 - 5
ZM 300 24,0 30,0 102 300 28 FL300 2 - 2 6 - 6
ZM 400 27,5 33,5 112 400 32 - 2 - 2 -
ZM 500 31,0 38,0 140 500 36 - 2 - 2 -
ZM 625 34,0 40,0 160 625 42 - 3 - 3 -
