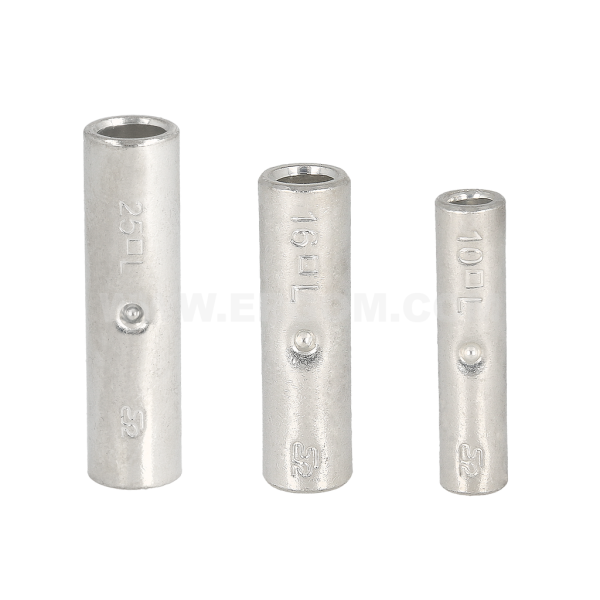

"Butt splice" compression cable connectors, KL type

"Butt splice" compression cable connectors, KL type

Main data of the product series

Product name
"Butt splice" compression cable connectors, KL type
Category
Connectors
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors must be rounded with special dies. For crimping cable lugs on cables of 5 class conductors (from cross-section of 10 mm²), we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KL 0,75-12 E11KM-01060100100 1 100 pkt. Price on request
KL 0,75-12 E11KM-01060100102 2 25 pkt. Price on request
KL 1,5-15 E11KM-01060100200 1 100 pkt. Price on request
KL 1,5-15 E11KM-01060100202 2 25 pkt. Price on request
KL 1,5-20 E11KM-01060100300 1 100 pkt. Price on request
KL 1,5-20 E11KM-01060100302 2 25 pkt. Price on request
KL 2,5-15 E11KM-01060100400 1 100 pkt. Price on request
KL 2,5-15 E11KM-01060100402 2 25 pkt. Price on request
KL 2,5-20 E11KM-01060100500 1 100 pkt. Price on request
KL 2,5-20 E11KM-01060100502 2 25 pkt. Price on request
KL 4-15 E11KM-01060100600 1 100 pkt. Price on request
KL 4-15 E11KM-01060100602 2 25 pkt. Price on request
KL 4-20 E11KM-01060100650 1 100 pkt. Price on request
KL 4-20 E11KM-01060100652 2 25 pkt. Price on request
KL 6-20 E11KM-01060100700 1 100 pkt. Price on request
KL 6-20 E11KM-01060100702 2 25 pkt. Price on request
KL 6-25 E11KM-01060100800 1 100 pkt. Price on request
KL 6-25 E11KM-01060100802 2 25 pkt. Price on request
KL 10 E11KM-01060200100 100 100 pcs. Price on request
KL 10 E11KM-01060200102 20 10 pcs. Price on request
KL 16 E11KM-01060200200 100 100 pcs. Price on request
KL 16 E11KM-01060200202 20 10 pcs. Price on request
KL 25 E11KM-01060200300 100 100 pcs. Price on request
KL 25 E11KM-01060200302 20 10 pcs. Price on request
KL 35 E11KM-01060200400 100 100 pcs. Price on request
KL 35 E11KM-01060200402 20 10 pcs. Price on request
KL 50 E11KM-01060200500 100 100 pcs. Price on request
KL 50 E11KM-01060200502 20 10 pcs. Price on request
KL 70 E11KM-01060200600 100 100 pcs. Price on request
KL 70 E11KM-01060200602 20 10 pcs. Price on request
KL 95 E11KM-01060200700 50 50 pcs. Price on request
KL 95 E11KM-01060200702 10 10 pcs. Price on request
KL 120 E11KM-01060200800 50 50 pcs. Price on request
KL 120 E11KM-01060200802 10 10 pcs. Price on request
KL 150 E11KM-01060200900 50 50 pcs. Price on request
KL 150 E11KM-01060200902 10 10 pcs. Price on request
KL 185 E11KM-01060201000 50 50 pcs. Price on request
KL 185 E11KM-01060201002 10 10 pcs. Price on request
KL 240 E11KM-01060201100 50 50 pcs. Price on request
KL 240 E11KM-01060201102 10 10 pcs. Price on request
KL 300 E11KM-01060201200 25 25 pcs. Price on request
KL 300 E11KM-01060201202 10 10 pcs. Price on request
KL 400 E11KM-01060201302 5 1 pcs. Price on request
KL 500 E11KM-01060201402 5 1 pcs. Price on request
KL 625 E11KM-01060201502 5 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Normy EN IEC 61238-1-1:2019 EN IEC 61238-1-3:2019 - mechanical strength Class 1 - Short-circuit resistance Class A for range of rated cross-section 10 - 240 mm²
Certyfikat UL E475284 (according to table in the technical data sheet)
Wykonanie standard
Świadectwo uznania typu PRS TE/1137/880567/25
Name UL d D L Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
KL 0,75-12 − 1,3 2,8 12 0,5÷0,75 - - - 1 - 1
KL 1,5-15 − 1,8 3,3 15 1÷1,5 - - - 1 - 1
KL 1,5-20 − 1,8 3,3 20 1÷1,5 - - - 1 - 1
KL 2,5-15 − 2,3 4,2 15 2,5 - - - 1 - 1
KL 2,5-20 − 2,3 4,2 20 2,5 - - - 1 - 1
KL 4-15 − 3 5 15 4 - - - 1 - 1
KL 4-20 − 3 5 20 4 - - - 1 - 1
KL 6-20 − 4 6 20 6 - - - 1 - 1
KL 6-25 − 4 6 25 6 - - - 1 - 1
KL 10 √ 4,5 7,0 30 10 7 FL10 1 - 1 2 - 2
KL 16 √ 5,5 8,5 30 16 8 FL16 1 - 1 2 - 2
KL 25 √ 7,0 10,0 38 25 10 FL25 1 - 1 2 - 2
KL 35 √ 8,5 12,0 42 35 12 FL35 1 - 1 2 - 2
KL 50 √ 10,0 14,0 48 50 14 FL50 1 - 1 2 - 2
KL 70 √ 12,0 16,5 52 70 16 FL70 1 - 1 3 - 3
KL 95 √ 13,5 18,0 58 95 17 FL95 1 - 1 3 - 3
KL 120 √ 15,0 19,5 62 120 19 FL120 1 - 1 3 - 3
KL 150 √ 16,5 21,0 68 150 20 FL150 2 - 2 4 - 4
KL 185 √ 19,0 24,0 72 185 23 FL185 2 - 2 4 - 4
KL 240 √ 21,0 26,0 88 240 25 FL240 2 - 2 5 - 5
KL 300 − 24,0 30,0 102 300 28 FL300 2 - 2 6 - 6
KL 400 − 27,5 33,5 112 400 32 - 2 - 2 -
KL 500 − 31,0 38,0 140 500 36 - 2 - 2 -
KL 625 − 34,0 40,0 160 625 42 - 3 - 3 -
