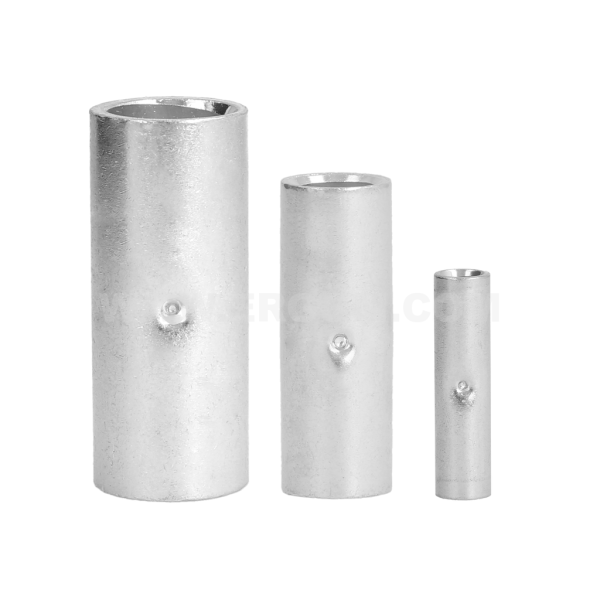

Butt splice cable connectors for compacted wires, CKL type

Butt splice cable connectors for compacted wires, CKL type

Main data of the product series

Product name
Butt splice cable connectors for compacted wires, CKL type
Category
Cu tubular for compressed wire
Material
Cu
Surface
tin-plated
Note!
Sector-shaped conductors (sm) must be rounded with special dies. In the technical documentation of cable and wire manufacturers, the RMC designation is also known as RMV. For crimping CKL type connectors on cables with RMC/RMV conductors, we dedicate KP22-C type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
CKL 10 E11KM-05060200200 50 50 pcs. Price on request
CKL 16 E11KM-05060200300 50 50 pcs. Price on request
CKL 25 E11KM-05060200400 50 50 pcs. Price on request
CKL 35 E11KM-05060200500 50 50 pcs. Price on request
CKL 50 E11KM-05060200600 25 25 pcs. Price on request
CKL 70 E11KM-05060200700 25 25 pcs. Price on request
CKL 95 E11KM-05060200800 25 25 pcs. Price on request
CKL 120 E11KM-05060200900 25 25 pcs. Price on request
CKL 150 E11KM-05060201000 10 10 pcs. Price on request
CKL 185 E11KM-05060201100 10 10 pcs. Price on request
CKL 240 E11KM-05060201200 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Normy EN IEC 61238-1-1:2019 EN IEC 61238-1-3:2019 - mechanical strength Class 1 - Short-circuit resistance Class A for range of rated cross-section 25 - 240 mm²
Certyfikat UL E475284 (according to table in the technical data sheet)
Name d D L Cross-section, rmc [mm²] Socket code no. Number of crimping
CKL 10 4,2 6,2 30 10 C10 1-1
CKL 16 5,5 7,7 30 16 C16 1-1
CKL 25 6,6 9 30 25 C25 1-1
CKL 35 7,7 10,6 32 35 C35 1-1
CKL 50 9,2 12,4 32 50 C50 1-1
CKL 70 11 14,6 48 70 C70 1-1
CKL 95 13 17 48 95 C95 1-1
CKL 120 14,5 19 50 120 C120 1-1
CKL 150 16,2 21 52 150 C150 2-2
CKL 185 18 23 56 185 C185 2-2
CKL 240 20,6 26 58 240 C240 2-2
