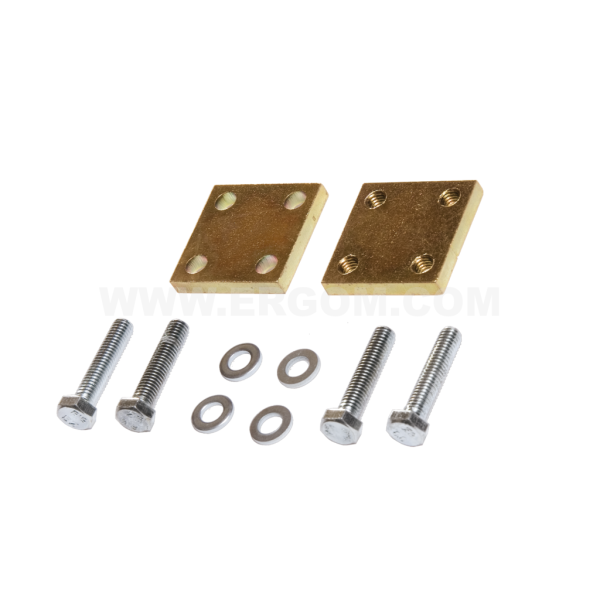

Busbar screwed clamps, F type

Busbar screwed clamps, F type

Main data of the product series

Product name: Busbar screwed clamps, F type
Category: Busbar screwed clamps, F type
Material: galvanized steel

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
F16X16	R32RZ-03060000102	1	12	set	Price on request
F16X32	R32RZ-03060000202	1	12	set	Price on request
F20X40	R32RZ-03060000402	1	12	set	Price on request
F25X25	R32RZ-03060000502	1	12	set	Price on request
F25X50	R32RZ-03060000602	1	12	set	Price on request
F32X32	R32RZ-03060000702	1	12	set	Price on request
F40X40	R32RZ-03060000902	1	12	set	Price on request

Selected lines: 0

Technical data

General data

Material	galvanized steel
Max. thickness of connection [mm]	15
Screw	M6x30
g	5

Name	Tightening torque [Nm]	a	b	c	d
F16X16	7	35	35	22	22
F16X32	7	35	52	22	38
F20X40	8	40	60	26	46
F25X25	8	45	45	31	31
F25X50	8	45	70	31	56
F32X32	8	52	50	38	38
F40X40	8	60	60	46	46

Guide

Busbar screwed clamps, F type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Zaciski_srubowe_do_laczenia_szyn_typ_F_EN.pdf	EN	15-05-2025	246.77 KB	PDF	Download
Catalog card	ERGOM_Zaciski_srubowe_do_laczenia_szyn_typ_F_PL.pdf	PL	15-05-2025	260.62 KB	PDF	Download
