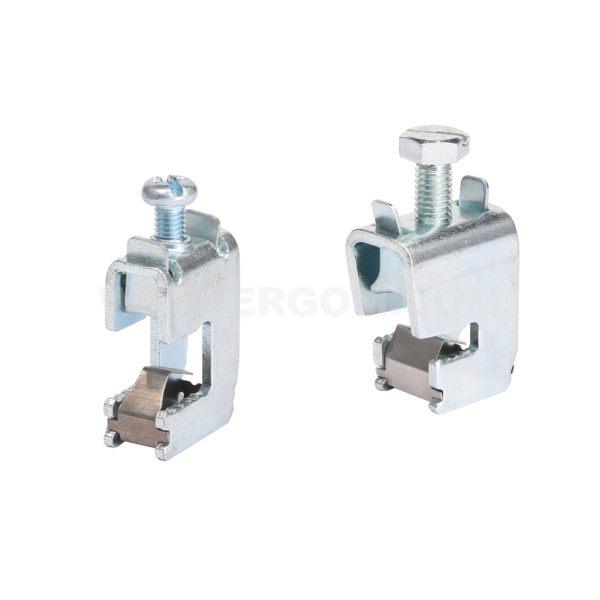

Busbar clamps, C2 type

Busbar clamps, C2 type

Main data of the product series

Product name
Busbar clamps, C2 type
Category
Busbar clamps, C type
Material
galvanized steel

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
C2-5/16 R32RZ-03040101103 12 12 pcs. Price on request
C2-5/35 R32RZ-03040101203 12 12 pcs. Price on request
C2-5/70 R32RZ-03040101303 12 12 pcs. Price on request
C2-5/120 R32RZ-03040101403 12 12 pcs. Price on request
C2-5/185 R32RZ-03040101503 12 12 pcs. Price on request
C2-10/16 R32RZ-03040101603 12 12 pcs. Price on request
C2-10/35 R32RZ-03040101703 12 12 pcs. Price on request
C2-10/70 R32RZ-03040101803 12 12 pcs. Price on request
C2-10/120 R32RZ-03040101903 12 12 pcs. Price on request
C2-10/185 R32RZ-03040102003 12 12 pcs. Price on request

Selected lines: 0

Technical data

General data

Material galvanized steel
Name Max. tightening torque (mounting bolt) [Nm] Cross-section [mm²] Rated busbar thickness [mm] H L S
C2-5/16 3 1,5÷16 5 26 22 12
C2-5/35 6 4÷35 5 31 29 16
C2-5/70 10 16÷70 5 39 31 21
C2-5/120 15 16÷120 5 44 34 24
C2-5/185 30 50÷185 5 48 35 29
C2-10/16 3 1,5÷16 10 31 22 12
C2-10/35 6 4÷35 10 37 29 16
C2-10/70 10 16÷70 10 43 31 21
C2-10/120 15 16÷120 10 48 34 24
C2-10/185 30 50÷185 10 55 35 29

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zaciski_do_szyn_zbiorczych_typ_C2_EN.pdf EN 04-06-2025 227.49 KB PDF Download
Catalog card ERGOM_Zaciski_do_szyn_zbiorczych_typ_C2_PL.pdf PL 04-06-2025 250.6 KB PDF Download
