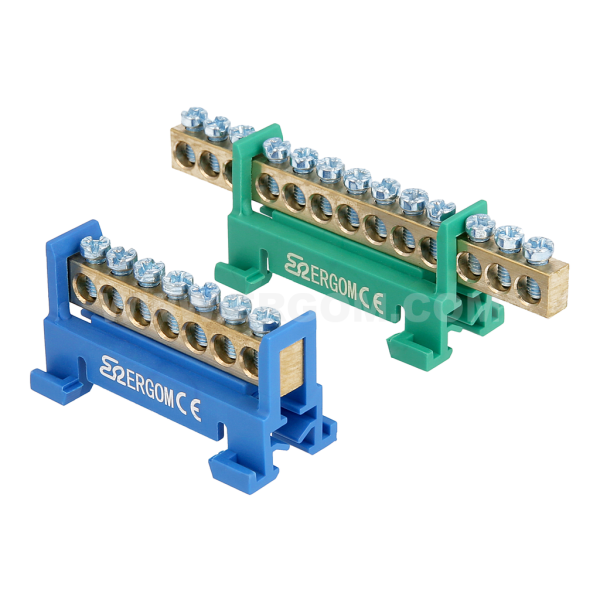

Brass protective ground terminals, MZO-…16 type, mounted on rails

Brass protective ground terminals, MZO-…16 type, mounted on rails

Main data of the product series

Product name
Brass protective ground terminals, MZO-…16 type, mounted on rails
Category
Brass protective ground terminals

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MZO-N 7x16 R33RA-01010106001 10 10 pcs. Price on request
MZO-N 7x16 R33RA-01010106101 10 10 pcs. Price on request
MZO-N 10x16 R33RA-01010106201 10 10 pcs. Price on request
MZO-N 12x16 R33RA-01010106301 10 10 pcs. Price on request
MZO-N 13x16 R33RA-01010106401 10 10 pcs. Price on request
MZO-N 15x16 R33RA-01010106501 10 10 pcs. Price on request
MZO-PE 7x16 R33RA-01010107001 10 10 pcs. Price on request
MZO-PE 8x16 R33RA-01010107101 10 10 pcs. Price on request
MZO-PE 10x16 R33RA-01010107201 10 10 pcs. Price on request
MZO-PE 12x16 R33RA-01010107301 10 10 pcs. Price on request
MZO-PE 13x16 R33RA-01010107401 10 10 pcs. Price on request
MZO-PE 15x16 R33RA-01010107501 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Operating temperature [°C] -40 ÷ +110
Body material polyamide 6.6
Bolt material galvanised steel
Clamp material brass
Recommended screwdriver tip type (flat) 5,5/1
Recommended screwdriver tip type (cross) PZ2
Terminal crimping shape on cord hexagon
Recommended tightening torque [Nm] 1,9
Halogen-free yes
S 6
D 9
Normy EN 60947-7-1; EN IEC 60947-1
Name Number of clamps x cross-section [mm²] Colour W
MZO-N 7x16 7x16 blue 51
MZO-N 7x16 8x16 blue 58,2
MZO-N 10x16 10x16 blue 71,3
MZO-N 12x16 12x16 blue 84
MZO-N 13x16 13x16 blue 90
MZO-N 15x16 15x16 blue 103,6
MZO-PE 7x16 7x16 green 51
MZO-PE 8x16 8x16 green 58,2
MZO-PE 10x16 10x16 green 71,3
MZO-PE 12x16 12x16 green 84
MZO-PE 13x16 13x16 green 90
MZO-PE 15x16 15x16 green 103,6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zacisk_ochronny_MZO-…16_mocowany_do_szyn_montazowych_EN.pdf EN 26-09-2025 313.59 KB PDF Download
Catalog card ERGOM_Zacisk_ochronny_MZO-…16_mocowany_do_szyn_montazowych_PL.pdf PL 15-05-2025 343.2 KB PDF Download
