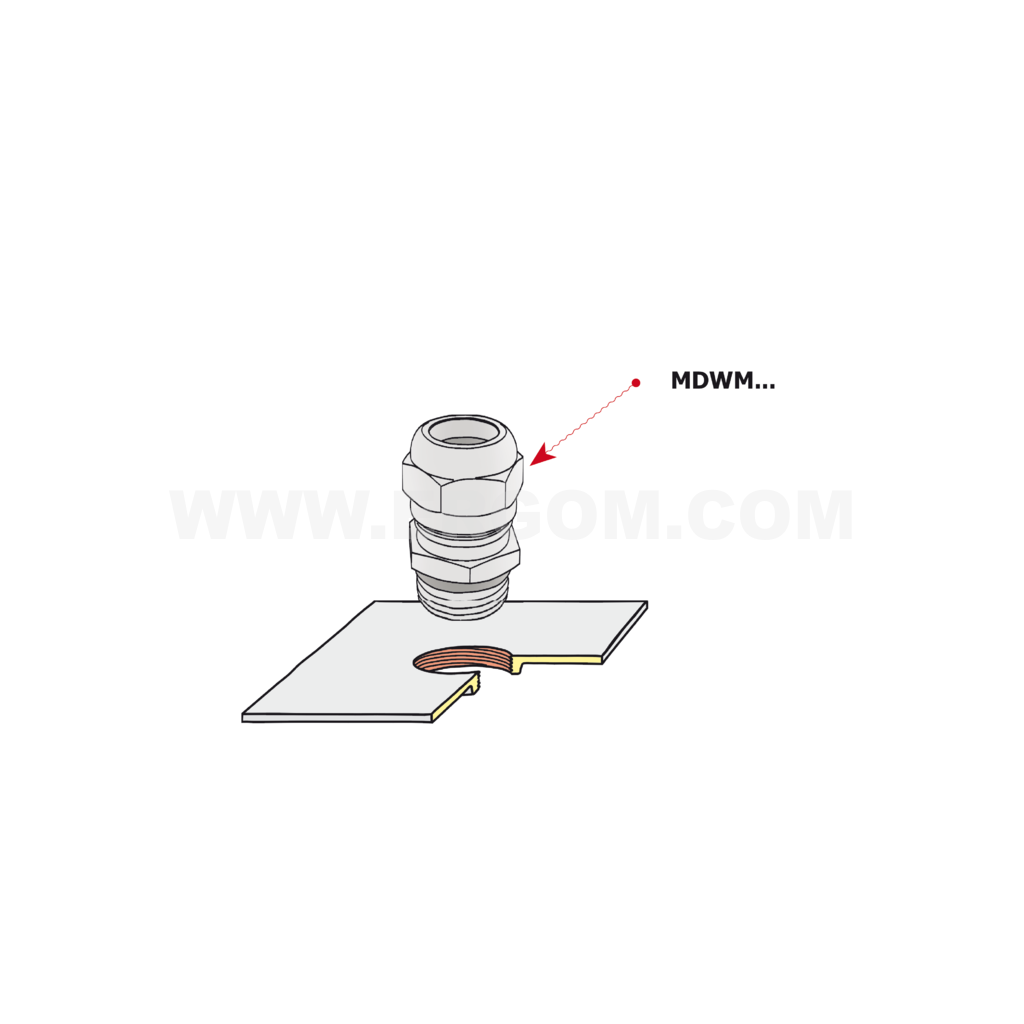

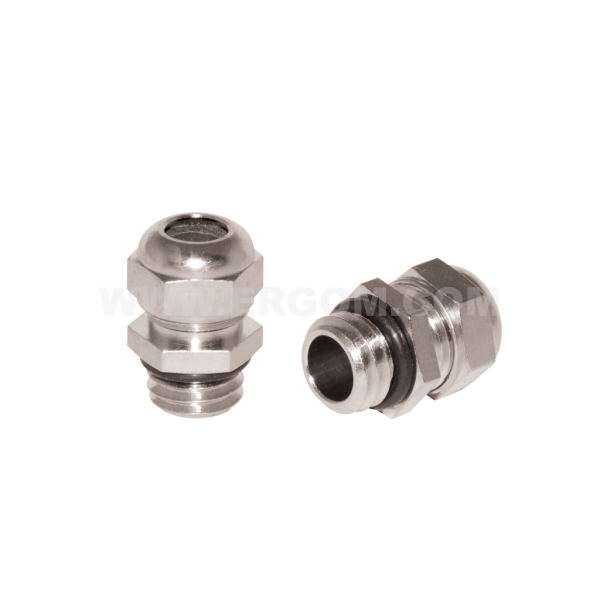

Brass gland, MINI MDWM type

Brass gland, MINI MDWM type

Main data of the product series

Product name
Brass gland, MINI MDWM type
Category
Metal
Operating temperature [°C]
-40 ÷ +100
Material
body: nickel-plated brass; seal: chloroprene; o-ring: NBR rubber
IP degree of protection
IP65
Note!
Standard pitch of thread

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDWM 6 E03DK-03060100103 10 10 pcs. Price on request
MDWM 8 E03DK-03060100203 10 10 pcs. Price on request
MDWM 10 E03DK-03060100303 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material body: nickel-plated brass; seal: chloroprene; o-ring: NBR rubber
Operating temperature [°C] -40 ÷ +100
E 6
Stopień ochrony IP65
Normy EN 62444; type A
Name M thread Cable external diameter [mm] L For spanner A
MDWM 6 M6x1 2,0÷3,5 11,0 8
MDWM 8 M8x1,25 3,0÷5,0 11,5 11
MDWM 10 M10x1,5 4,0÷6,5 14,0 12

Guide

Brass gland, MINI MDWM type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Dlawnica_mosiezna_typu_MINI_MDWM_EN.pdf EN 14-05-2025 193.06 KB PDF Download
Catalog card ERGOM_Dlawnica_mosiezna_typu_MINI_MDWM_PL.pdf PL 14-05-2025 235.25 KB PDF Download
