Brass gland, MDW...NM type

Brass gland, MDW...NM type

Main data of the product series

Product name: Brass gland, MDW...NM type
Category: Metal
Material: Material: body: nickel-plated brass; seal: chloroprene; o-ring: NBR rubber
Operating temperature [°C]: -30 ÷ +100
IP degree of protection: IP65
Note!: MDN Nuts are to be ordered separately.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MDW 12NM	E03DK-03040200103	10	10	pcs.	Price on request
MDW 16NM	E03DK-03040200203	10	10	pcs.	Price on request
MDW 20NM	E03DK-03040200303	10	10	pcs.	Price on request
MDW 25NM	E03DK-03040200403	10	10	pcs.	Price on request
MDW 32NM	E03DK-03040200503	10	10	pcs.	Price on request
MDW 40NM	E03DK-03040200603	10	10	pcs.	Price on request
MDW 50NM	E03DK-03040200703	1	1	pcs.	Price on request
MDW 63NM	E03DK-03040200803	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	Material: body: nickel-plated brass; seal: chloroprene; o-ring: NBR rubber
Operating temperature [°C]	-30 ÷ +100
Stopień ochrony	IP65
Normy	EN 62444; type A

Name	Seal	M thread	Cable external diameter [mm]	E	L	For spanner A
MDW 12NM	jednoczęściowa	M12x1,5	4,0÷7,0	6,0	17,0	14
MDW 16NM	dwuczęściowa	M16x1,5	7,0÷11,5	6,0	18,0	20
MDW 20NM	dwuczęściowa	M20x1,5	8,0÷15,0	6,0	21,0	24
MDW 25NM	dwuczęściowa	M25x1,5	13,0÷20,0	7,0	22,5	32
MDW 32NM	dwuczęściowa	M32x1,5	18,0÷25,5	8,0	24,0	38
MDW 40NM	dwuczęściowa	M40x1,5	27,0÷34,5	8,0	29,0	50
MDW 50NM	dwuczęściowa	M50x1,5	38,0÷44,5	10,0	30,0	58
MDW 63NM	dwuczęściowa	M63x1,5	40,0÷48,5	11,0	33,0	64

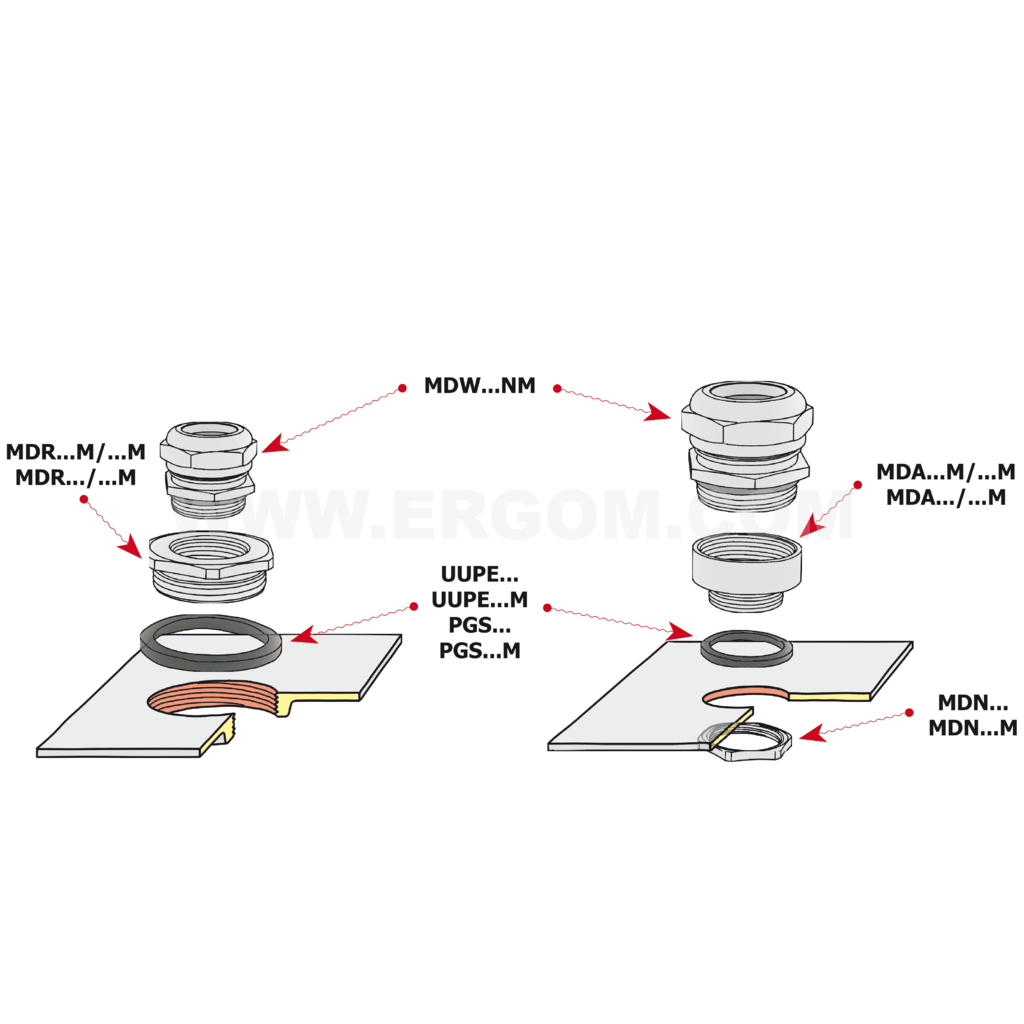

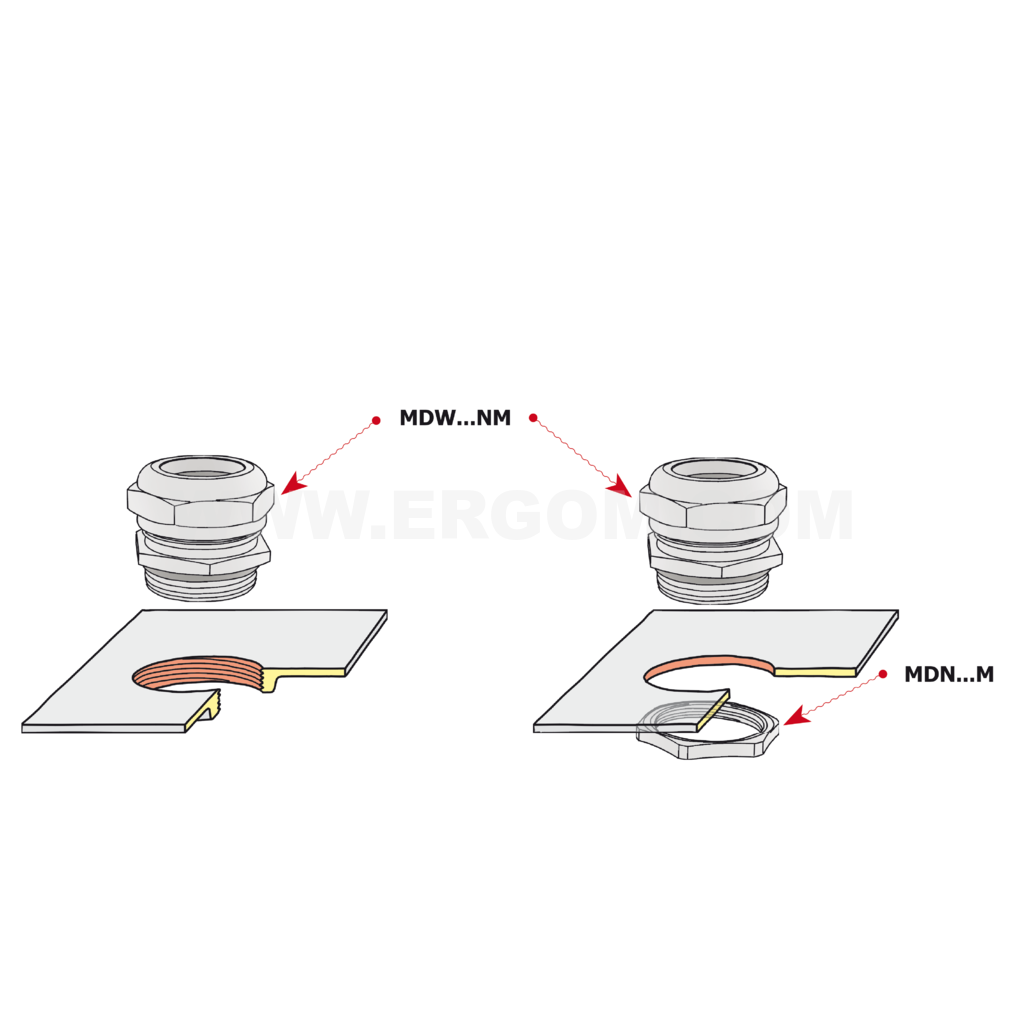

Guide

Brass gland, MDW...NM type

Brass gland, MDW...NM type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Dlawnica_mosiezna_typu_MDW_NM_EN.pdf	EN	14-05-2025	266.6 KB	PDF	Download
Catalog card	ERGOM_Dlawnica_mosiezna_typu_MDW_NM_PL.pdf	PL	14-05-2025	286.77 KB	PDF	Download
