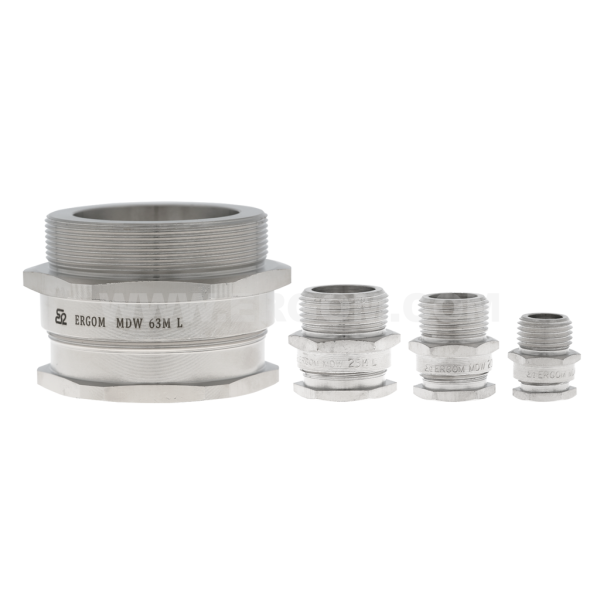

Brass gland, MDW...ML type

Brass gland, MDW...ML type

Main data of the product series

Product name
Brass gland, MDW...ML type
Category
Metal
Assembly temperature [°C]
from -5
Operating temperature [°C]
-20 ÷ +80
Material
body: nickel-plated brass; seal: CR neoprene
IP degree of protection
IP54 (with sealing washer)
Note!
MDN Nuts and UUPE seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDW 16ML E03DK-03020200201 10 10 pcs. Price on request
MDW 20ML E03DK-03020200301 10 10 pcs. Price on request
MDW 25ML E03DK-03020200401 10 10 pcs. Price on request
MDW 63ML E03DK-03020200801 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material body: nickel-plated brass; seal: CR neoprene
Assembly temperature [°C] from -5
Operating temperature [°C] -20 ÷ +80
Stopień ochrony IP54 (with sealing washer)
Normy EN 62444; type A
Name M thread Cable external diameter [mm] E L For spanner A For spanner B
MDW 16ML M16x1,5 6,5÷9,5 10 13 16 18
MDW 20ML M20x1,5 8,5÷13,0 12 14 20 22
MDW 25ML M25x1,5 12,0÷17,0 12 16 25 27
MDW 63ML M63x1,5 33,0÷46,0 15 32 65 70

Guide

Brass gland, MDW...ML type
Brass gland, MDW...ML type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Dlawnica_mosiezna_standard_MDW_ML_EN.pdf EN 14-05-2025 204.26 KB PDF Download
Catalog card ERGOM_Dlawnica_mosiezna_standard_MDW_ML_PL.pdf PL 14-05-2025 243.28 KB PDF Download
