Brass gland, MDW...M type

Brass gland, MDW...M type

Main data of the product series

Product name
Brass gland, MDW...M type
Category
Metal
Operating temperature [°C]
-40 ÷ +100
Material
body: nickel-plated brass; seal: CR neoprene
IP degree of protection
IP54 (with sealing washer)
Note!
MDN Nuts and UUPE seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDW 12M E03DK-03010200103 10 10 pcs. Price on request
MDW 16M E03DK-03010200203 10 10 pcs. Price on request
MDW 20M E03DK-03010200303 10 10 pcs. Price on request
MDW 25M E03DK-03010200403 10 10 pcs. Price on request
MDW 32M E03DK-03010200503 10 10 pcs. Price on request
MDW 40M E03DK-03010200603 10 10 pcs. Price on request
MDW 50M E03DK-03010200703 1 1 pcs. Price on request
MDW 63M E03DK-03010200803 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material body: nickel-plated brass; seal: CR neoprene
Assembly temperature [°C] from -20
Operating temperature [°C] -40 ÷ +100
Stopień ochrony IP54 (with sealing washer)
Normy EN 62444; type A
Name M thread Cable external diameter [mm] E L For spanner A For spanner B
MDW 12M M12x1,5 3,5÷6,5 5 11,0 12 14
MDW 16M M16x1,5 6,5÷9,5 6 13,0 16 18
MDW 20M M20x1,5 8,5÷13,0 6 14,0 20 22
MDW 25M M25x1,5 12,0÷17,0 7 16,0 25 27
MDW 32M M32x1,5 15,0÷22,0 8 20,0 32 35
MDW 40M M40x1,5 19,5÷28,0 8 23,0 40 44
MDW 50M M50x1,5 26,0÷36,0 9 27,0 50 54
MDW 63M M63x1,5 33,0÷46,0 10 32,0 63 67

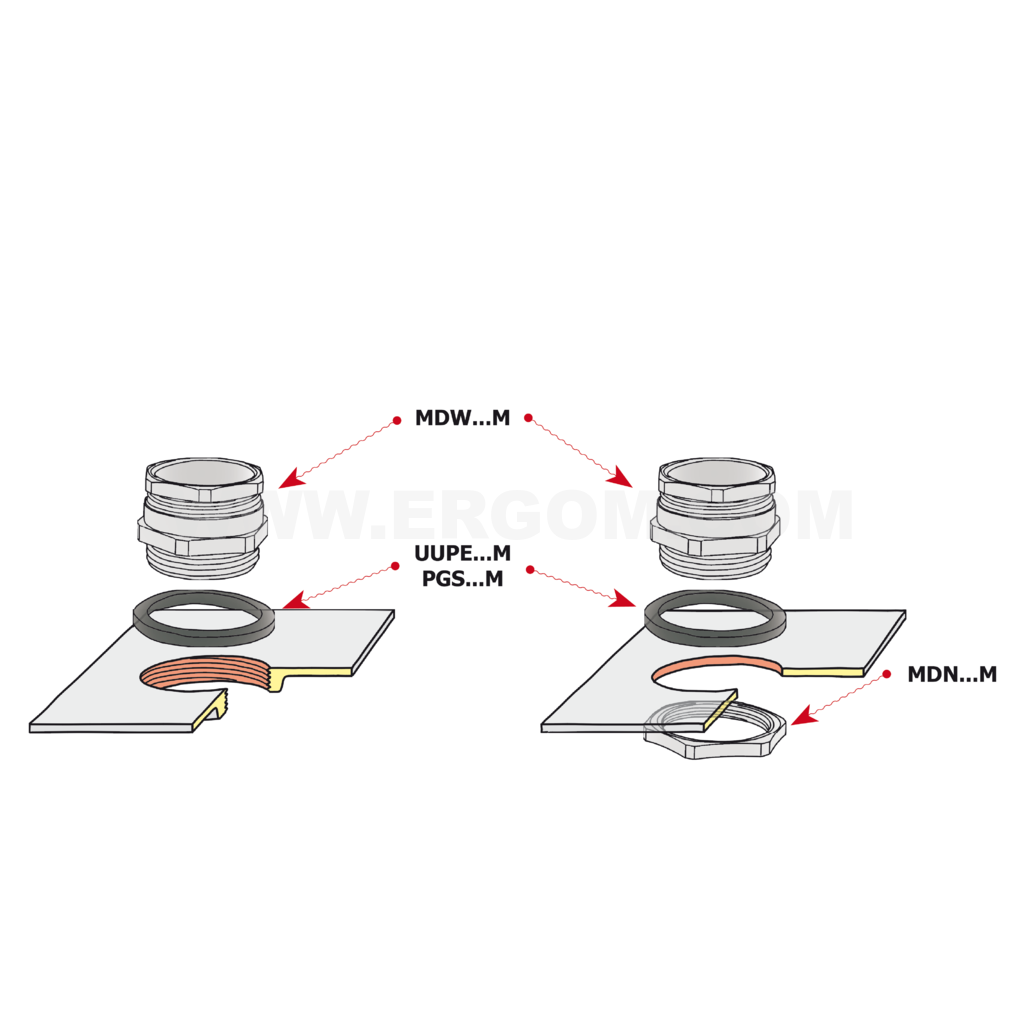

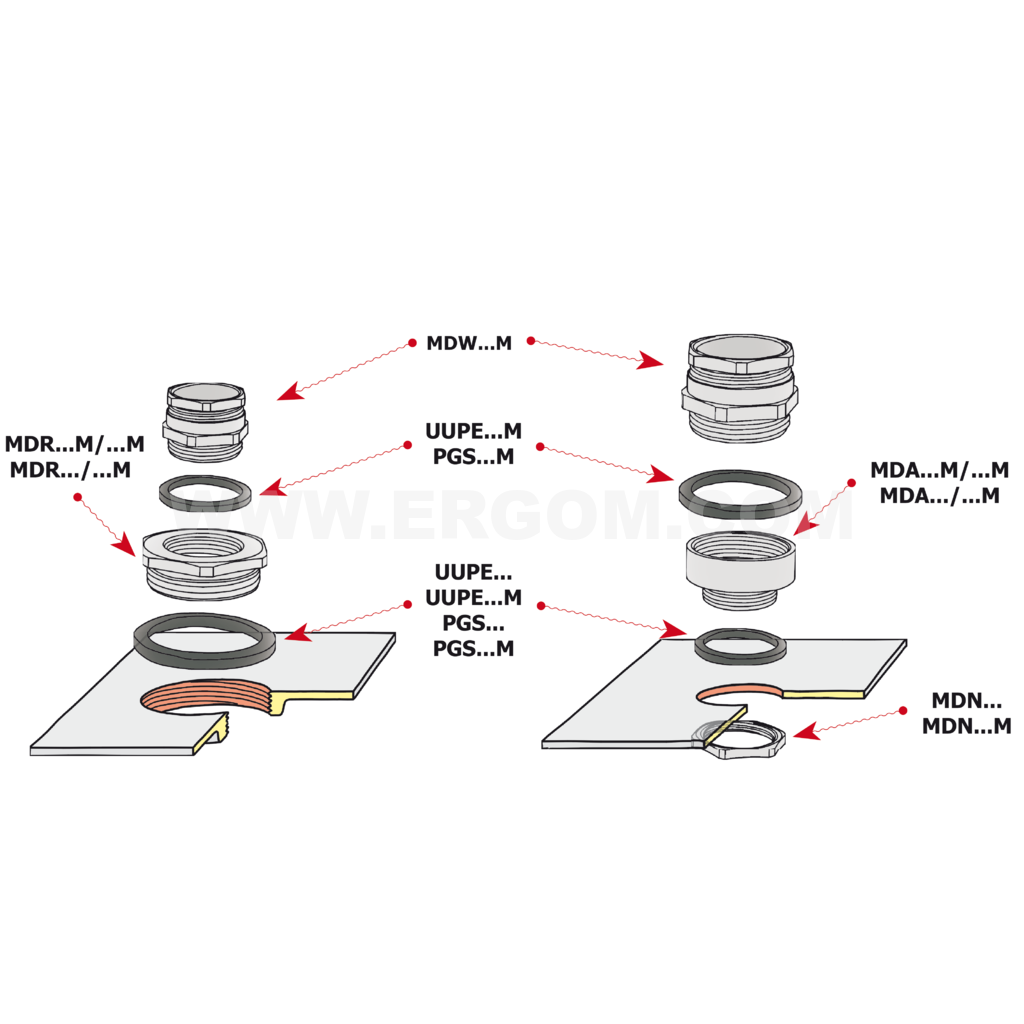

Guide

Brass gland, MDW...M type
Brass gland, MDW...M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Dlawnica_mosiezna_standard_typu_MDW_M_EN.pdf EN 14-05-2025 247.5 KB PDF Download
Catalog card ERGOM_Dlawnica_mosiezna_standard_typu_MDW_M_PL.pdf PL 14-05-2025 288.38 KB PDF Download
