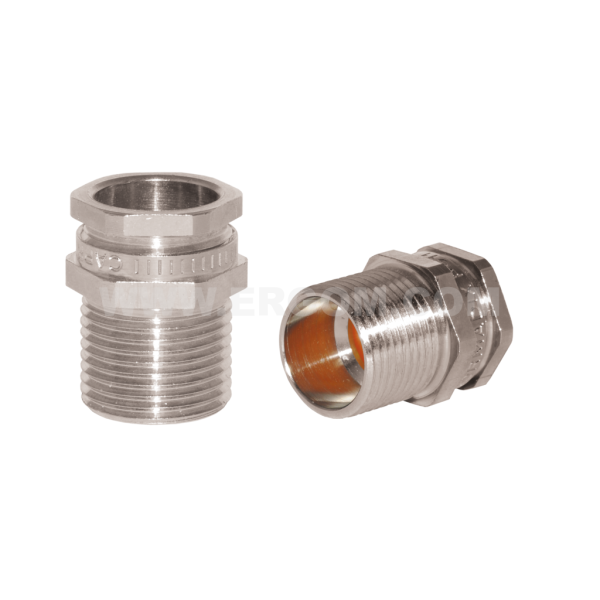

Brass gland, MDW...L type

Brass gland, MDW...L type

Main data of the product series

Product name
Brass gland, MDW...L type
Category
Metal
Assembly temperature [°C]
from -5
Operating temperature [°C]
-20 ÷ +80
Material
body: nickel-plated brass; seal: CR neoprene
IP degree of protection
IP54 (with sealing washer)
Note!

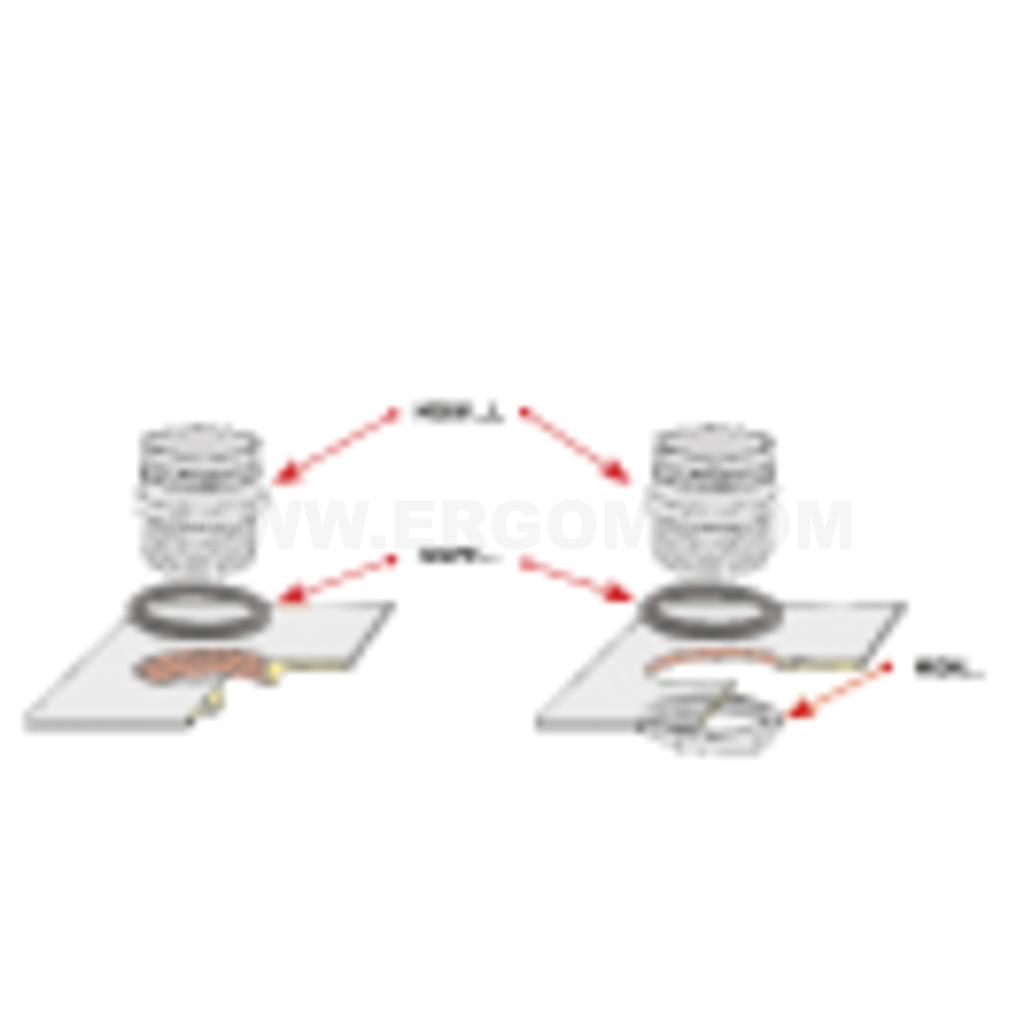

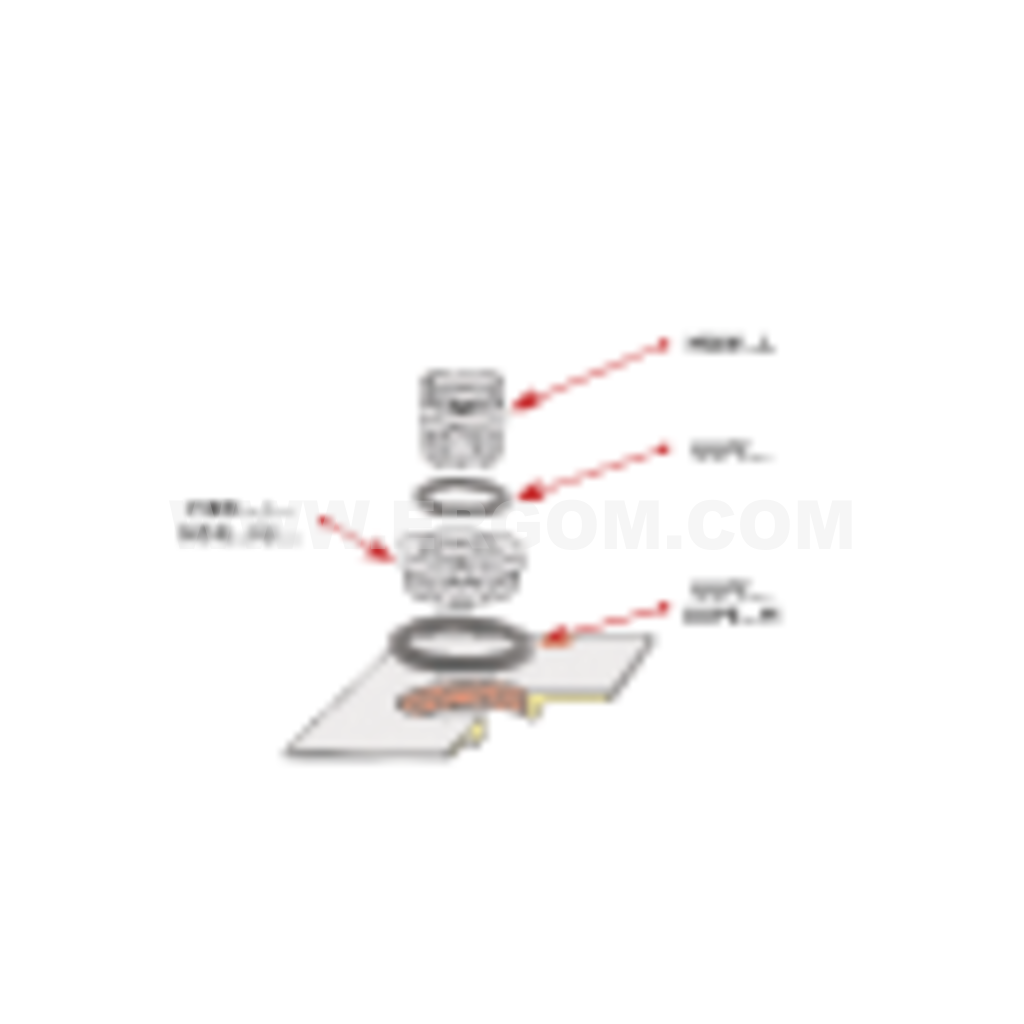

MDN Nuts and UUPE seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDW 11L E03DK-03020100203 10 10 pcs. Price on request
MDW 13L E03DK-03020100303 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material body: nickel-plated brass; seal: CR neoprene
Assembly temperature [°C] from -5
Operating temperature [°C] -20 ÷ +80
E 15
Stopień ochrony IP54 (with sealing washer)
Normy EN 62444; type A
Name PG thread Cable external diameter [mm] L For spanner A For spanner B
MDW 11L PG11 7,5÷10,5 12,5 19 20
MDW 13L PG13,5 10,5÷13,5 12,0 20 22

Guide

Brass gland, MDW...L type
Brass gland, MDW...L type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Dlawnica_mosiezna_standard_MDW_L_EN.pdf EN 14-05-2025 234.13 KB PDF Download
Catalog card ERGOM_Dlawnica_mosiezna_standard_MDW_L_PL.pdf PL 14-05-2025 273.29 KB PDF Download
